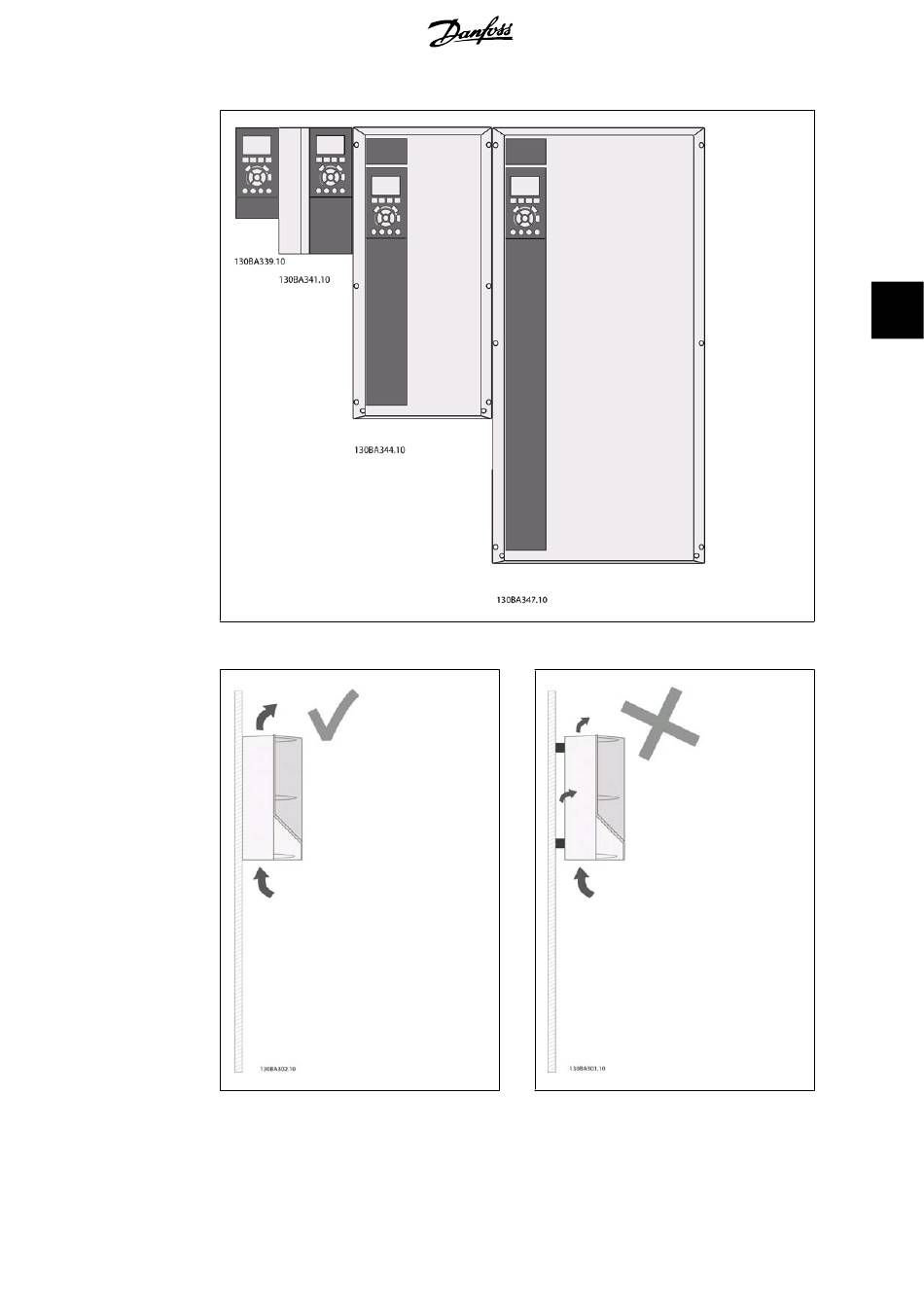

Illustration 4.1: Side by side mounting of all frame sizes.
Illustration 4.2: This is the correct way to mount
the unit.
®
MG.20.M2.02 - VLT
is a registered Danfoss trademark
4. Mechanical installation
Illustration 4.3: Other than A2 and A3 enclosures
do not mount units as shown without back plate.
