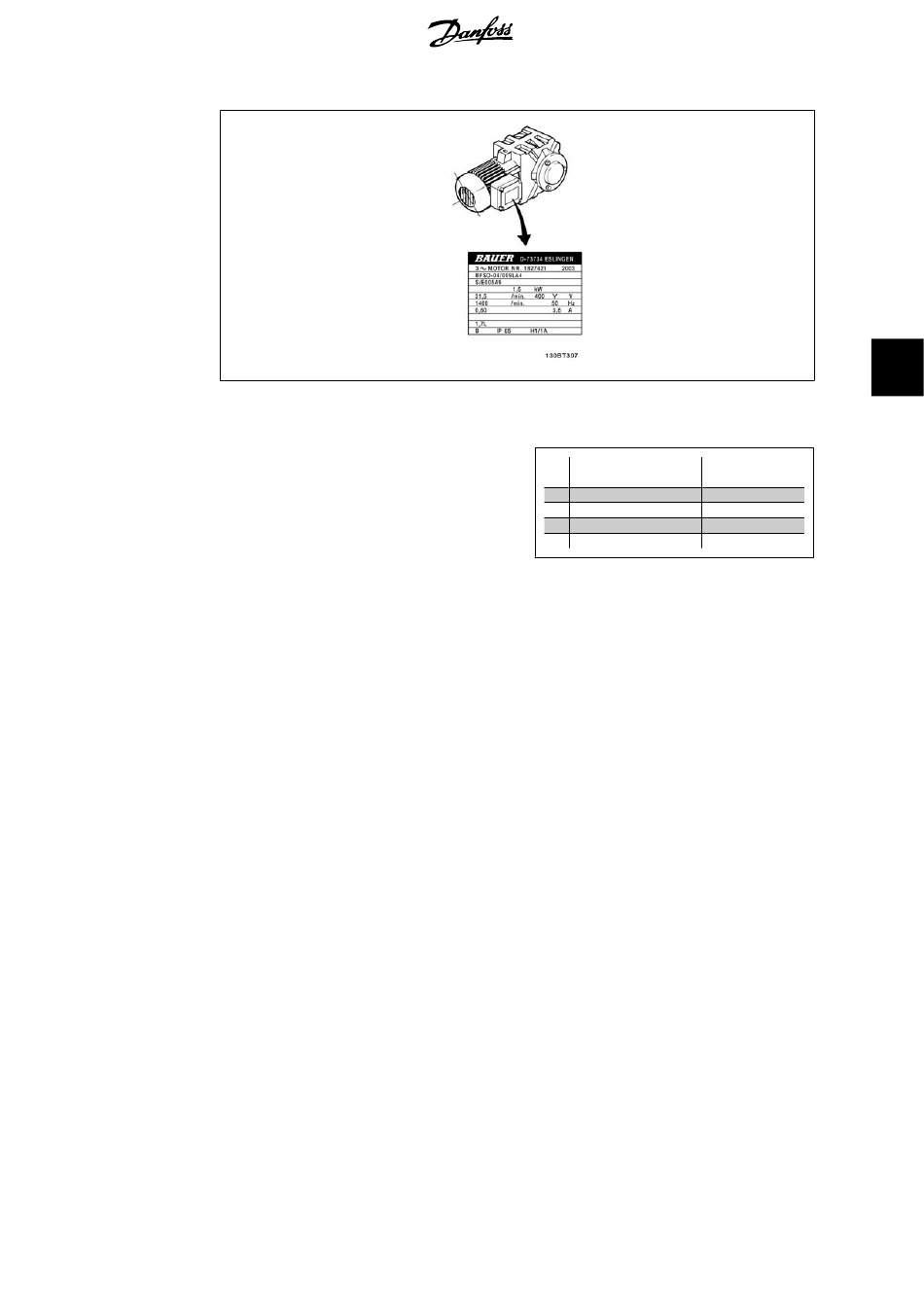

Illustration 5.31: Motor name plate example
Step 2. Enter motor name plate data in
following parameter list.
To access list first press [QUICK MENU] key
then select "Q2 Quick Setup".
Step 3. Activate Automatic Motor Adaptation (AMA)
Performing AMA ensures best possible performance. AMA automatically takes measurements from
the specific motor connected and compensates for installation variances.
1.
2.
3.
4.
5.
6.
Stop the AMA during operation
1.
Successful AMA
1.
2.
Connect terminal 27 to terminal 12 or use [MAIN MENU] and set Terminal 27 par. 5-12
No operation
to (par. 5-12 [0])
Press [QUICK MENU], select "Q2 Quick Setup", scroll down to AMA par. 1-29.
Press [OK] to activate the AMA par. 1-29.
Choose between complete or reduced AMA. If sine wave filter is mounted, run only re-
duced AMA, or remove sine wave filter during AMA procedure.
Press [OK] key. Display should show "Press [Hand on] to start".
Press [Hand on] key. A progress bar indicates if AMA is in progress.
Press the [OFF] key - the frequency converter enters into alarm mode and the display
shows that the AMA was terminated by the user.
The display shows "Press [OK] to finish AMA".
Press the [OK] key to exit the AMA state.
®
MG.20.M2.02 - VLT is a registered Danfoss trademark
5. Electrical installation
1. Motor Power [kW] par. 1-20
or Motor Power [HP] par. 1-21
2. Motor Voltage par. 1-22
3. Motor Frequency par. 1-23
4. Motor Current par. 1-24
5. Motor Nominal Speed par. 1-25
Table 5.8: Motor related parameters
