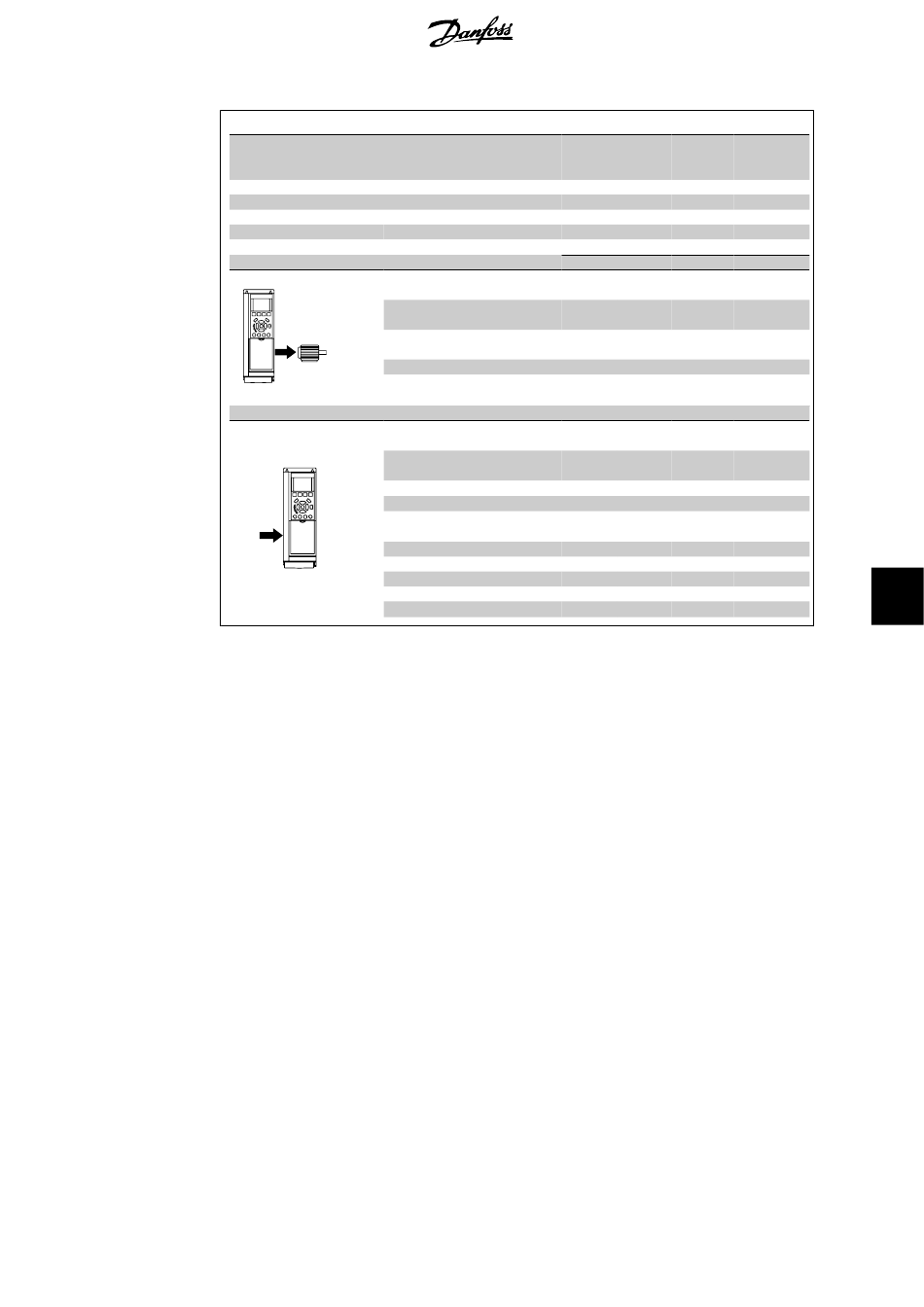

Danfoss VLT Aqua Drive FC 202 Operating Instructions Manual page 125

®
VLT AQUA Drive
Operating Instructions
Normal overload 110% for 1 minute
Mains supply 200 - 240 VAC
Frequency converter
Typical Shaft Output [kW]
Typical Shaft Output [HP] at 208 V
Encapsulation
IP 21
IP 55
IP 66
Output current
Max. input current
1.
2.
3.
4.
Continuous
(3 x 200-240 V ) [A]
Intermittent
(3 x 200-240 V ) [A]
Continuous
kVA (208 V AC) [kVA]
Max. cable size:
(mains, motor, brake)
2
[mm /AWG]
Continuous
(3 x 200-240 V ) [A]
Intermittent
(3 x 200-240 V ) [A]
Max. pre-fuses
Environment
Estimated power loss
at rated max. load [W]
Weight enclosure IP20 [kg]
Weight enclosure IP21 [kg]
Weight enclosure IP55 [kg]
Weight enclosure IP 66 [kg]
4)
Efficiency
For type of fuse see section
American Wire Gauge
Measured using 5 m screened motor cables at rated load and rated frequency
The typical power loss is at normal load conditions and expected to be within +/- 15%
(tolerance relates to variety in voltage and cable conditions).
Values are based on a typical motor efficiency (eff2/eff3 border line). Lower efficiency
motors will also add to the power loss in the frequency converter and vice versa.
If the switching frequency is raised from nominal the power losses may rise significantly.
LCP and typical control card power consumptions are included. Further options and cus-
tomer load may add up to 30W to the losses. (Though typically only 4W extra for a fully
loaded control card, or options for slot A or slot B, each).
Although measurements are made with state of the art equipment, some measurement
inaccuracy must be allowed for (+/- 5%).
®
MG.20.M2.02 - VLT is a registered Danfoss trademark
P5K5
5.5
7.5
B1
B1
B1
24.2
26.6
8.7
22.0
24.2
1) [A] 63
269
4)
23
23
23
0.96
Fuses
9. Specifications
P7K5 P11K P15K
7.5 11 15
10 15 20
B1 B2 B2
B1 B2 B2
B1 B2 B2
30.8 46.2 59.4
33.9 50.8 65.3
11.1 16.6 21.4
10/7 35/2
28.0 42.0 54.0
30.8 46.2 59.4
63 63 80
310 447 602
23 23 27
23 23 27
23 23 27
0.96 0.96 0.96
9
125
