VLT AQUA Drive
Operating Instructions
5.1.11. Motor connection for A2 and A3
Follow these drawings step by step for connecting the motor to the frequency converter.

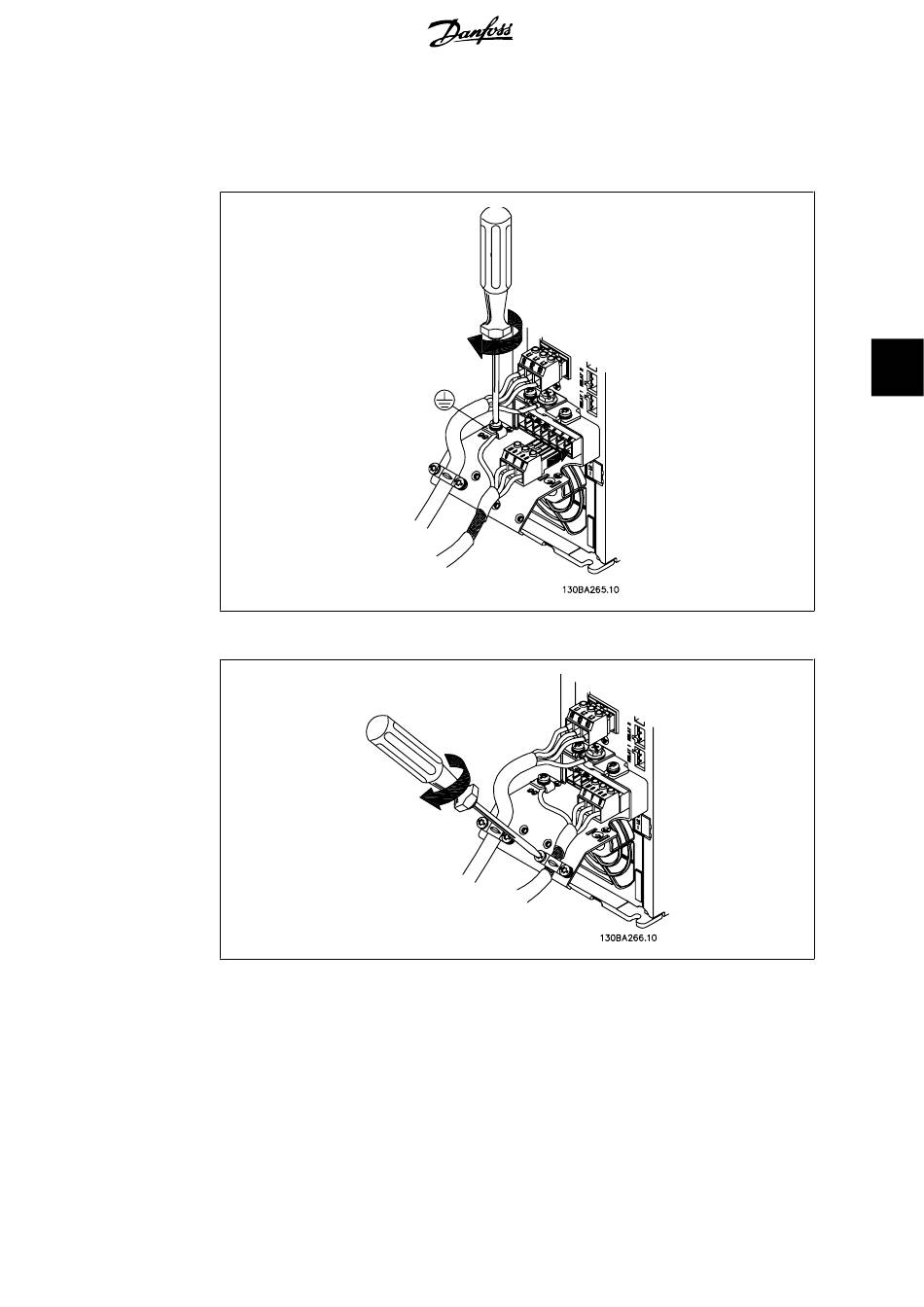

Illustration 5.11: First terminate the motor earth, then place motor U, V and W wires in plug and tighten.
Illustration 5.12: Mount cable clamp to ensure 360 degree connection between chassis and screen, note the
outer insulation of the motor cable is removed under the clamp.
®
MG.20.M2.02 - VLT is a registered Danfoss trademark
5. Electrical installation
33
5
