5. Electrical installation
5.1.12. Motor connection for A5
5

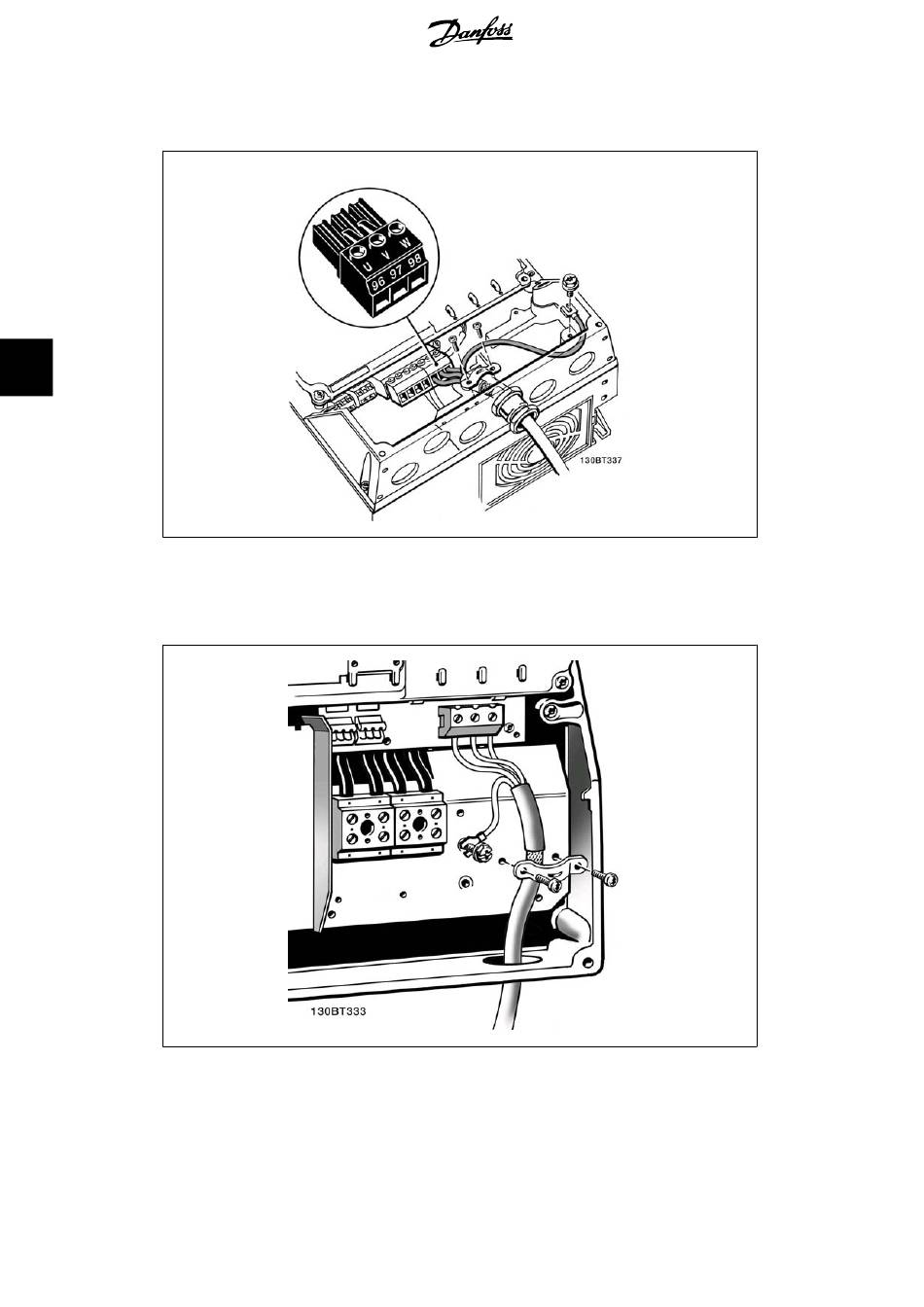

Illustration 5.13: First terminate the motor earth, then place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor cable is removed under the EMC clamp.
5.1.13. Motor connection for B1 and B2
Illustration 5.14: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor cable is removed under the EMC clamp.
