Flash memory interface

2 Flash memory interface
2.1

Introduction

The Flash memory interface manages CPU AHB I-Code and D-Code accesses to the
1 Mbyte (64 Kbit × 128 bits) Flash memory. It implements the erase and program Flash
memory operations and the read and write protection mechanisms.
The Flash memory interface accelerates code execution with a system of instruction
prefetch and cache lines.
2.2

Main features

•
Flash memory read operations
•
Flash memory program/erase operations
•
Read / write protections
•
Prefetch on I-Code
•
64 cache lines of 128 bits on I-Code
•
8 cache lines of 128 bits on D-Code
Figure 1

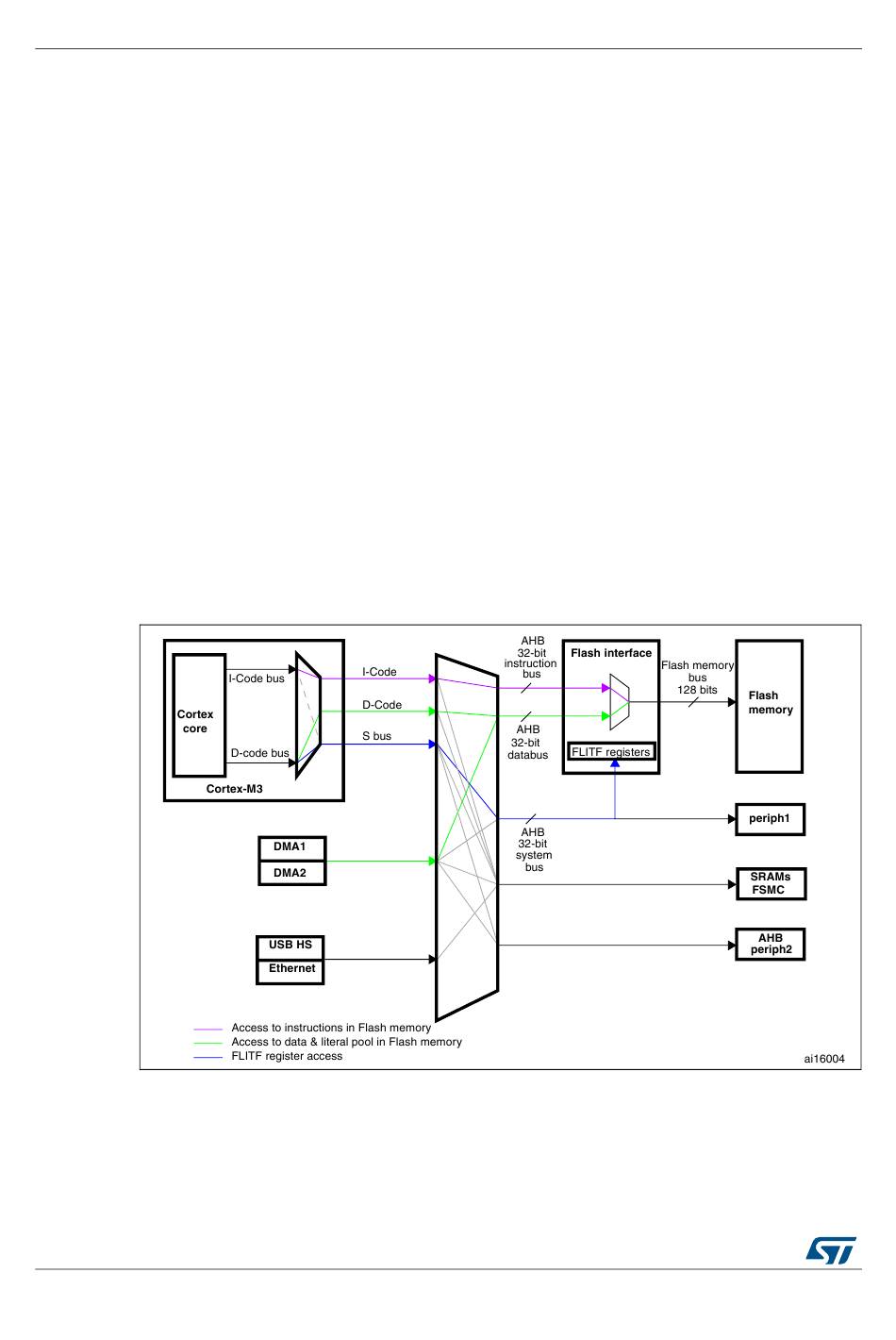

Figure 1. Flash memory interface connection inside system architecture
6/29
shows the Flash memory interface connection inside the system architecture.
DocID15687 Rev 5
PM0059
