Demonstration architecture overview
1.2

Hardware configuration

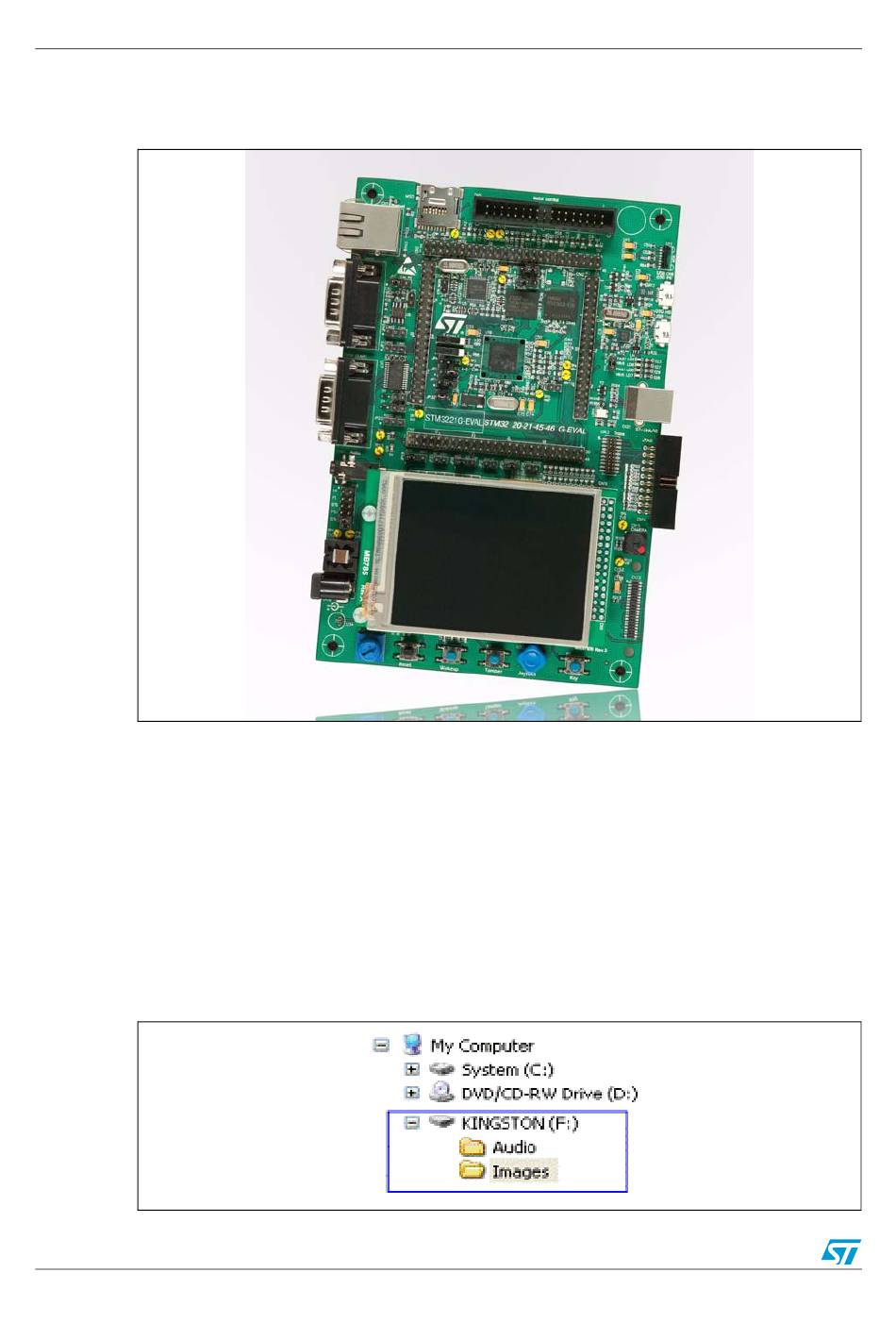

Figure 3.
1.2.1

Required accessories

In addition to the STM3220G-EVAL board, the demonstration requires the following
accessories:
●
Micro-AB to standard receptacle A connector (provided with STM3220G-EVAL board
package)
● Micro-AB to standard plug A connector (provided with STM3220G-EVAL board
package)
●
Headphone with male jack connector
●
USB Flash disk (provided with STM3220G-EVAL board package)
Figure 4.
