UM1069
How to use the web server demonstration
1.
Ensure that the jumper configuration on your STM3220G-EVAL board is correct (refer
to
Table 2: Jumper configurations on page
2.
Modify your PC network configuration:
a)
b)

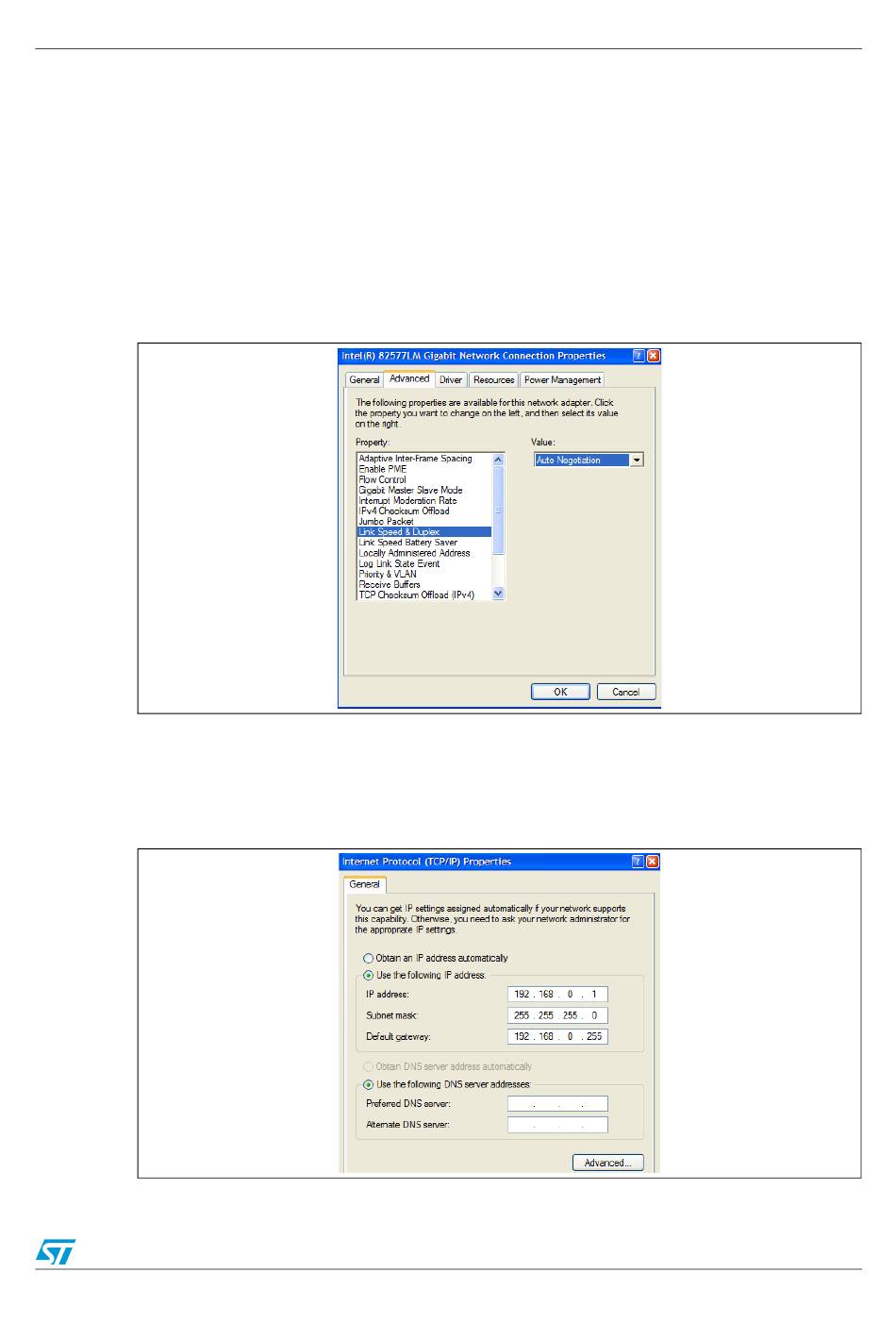

Figure 14. Connection properties screen
c)
Figure 15. TCP/IP properties screen
Disable the Internet firewall installed on your PC (if it is enabled) and
bypass/deselect any proxy server in use.
Set your PC network card "Speed & Duplex" property to "Auto Navigation": under
Windows, select Control Panel > Network Connections > Local Area
Connection > Properties > Configure > Advanced > Speed & Duplex.
If the DHCP is not supported, change your PC IP address to 192.168.0.x (x
different from 8). To do this, under Windows, select Control Panel > Network
Connections > Local Area Connection > Properties > Internet Protocol
(TCP/IP) > Properties > and use the following IP address.
Doc ID 018665 Rev 3
Demonstration architecture overview
7).
13/21
