2.7
USB joystick
The HID example uses the joystick embedded in the STM3220G-EVAL evaluation board.
The HID example works in High Speed mode (the USB OTG HS connector is used).

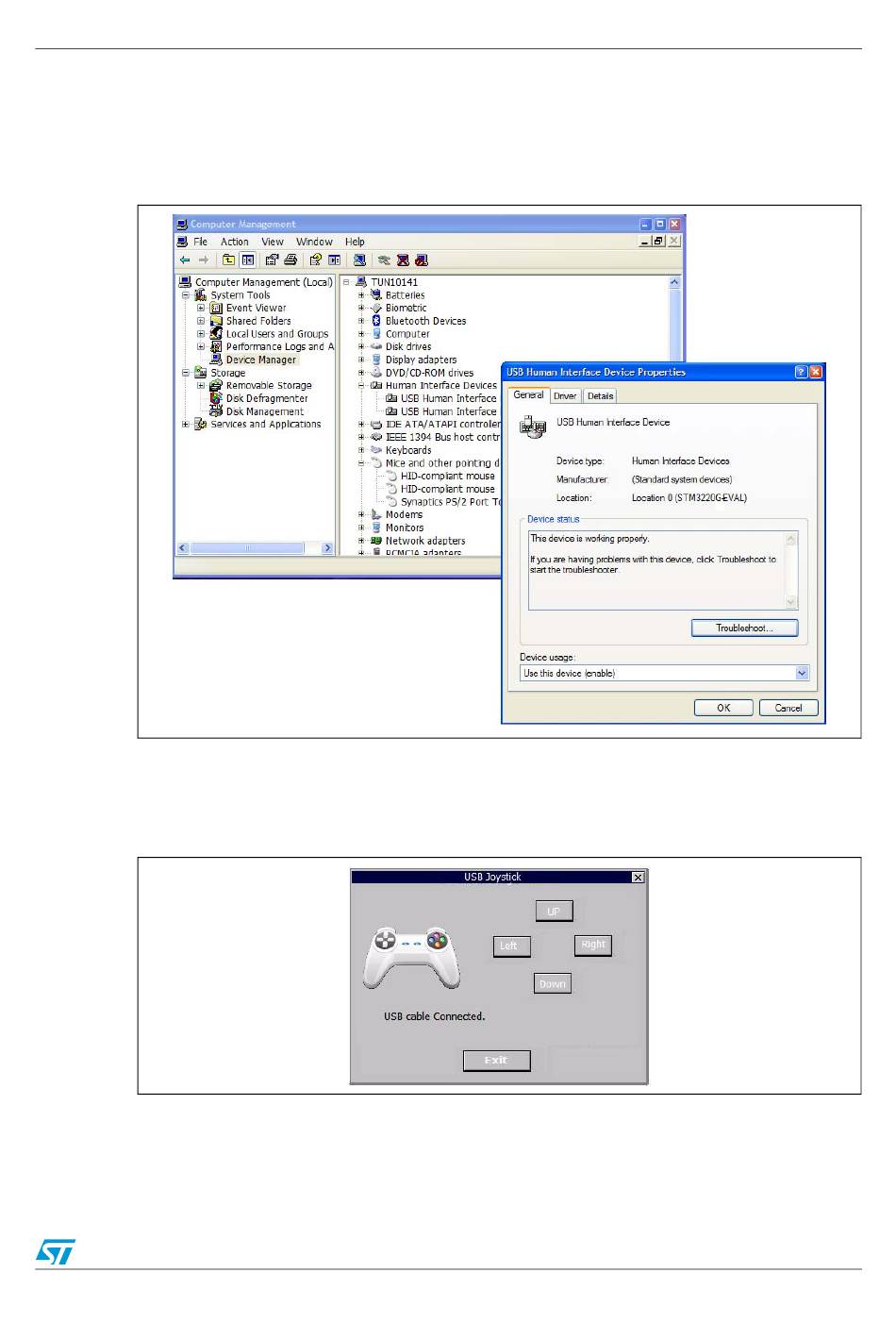

Figure 17. HID properties screen
Once connected and correctly configured, the STM3220G-EVAL board acts as a USB HID
joystick device and the user can move the mouse pointer on the Host by using the Up, Left,
Down and Right buttons.
Figure 18. USB joystick status screen
