Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

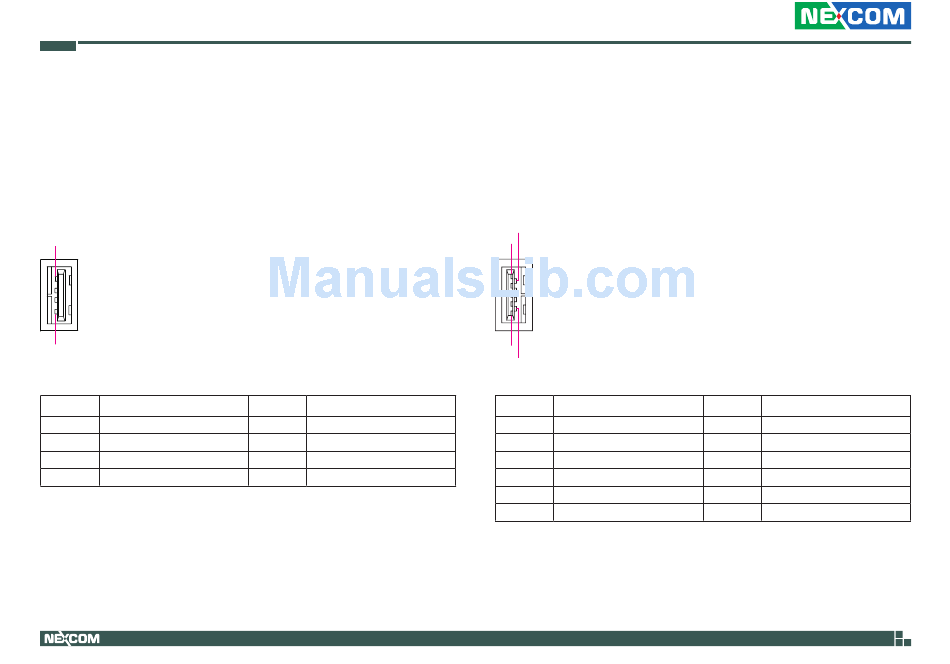

USB 2.0 Port

Connector type: USB 2.0 port, Type A
Connector location: CN6
1
4
Pin Definition
1 5V
3 USB1P
MH1 CHASSIS_GND
MH3 CHASSIS_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 USB1N
4 GND
MH2 CHASSIS_GND

USB 3.0 Port

Connector type: USB 3.0 port, Type A
Connector location: CN5
1
9
5
4
Pin Definition
1 5V
3 USB0P
5 USB3_RX0N
7 GND
9 USB3_TX0P
MH2 CHASSIS_GND
15
Pin Definition
2 USB0N
4 GND
6 USB3_RX0P
8 USB3_TX0N
MH1 CHASSIS_GND
