Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

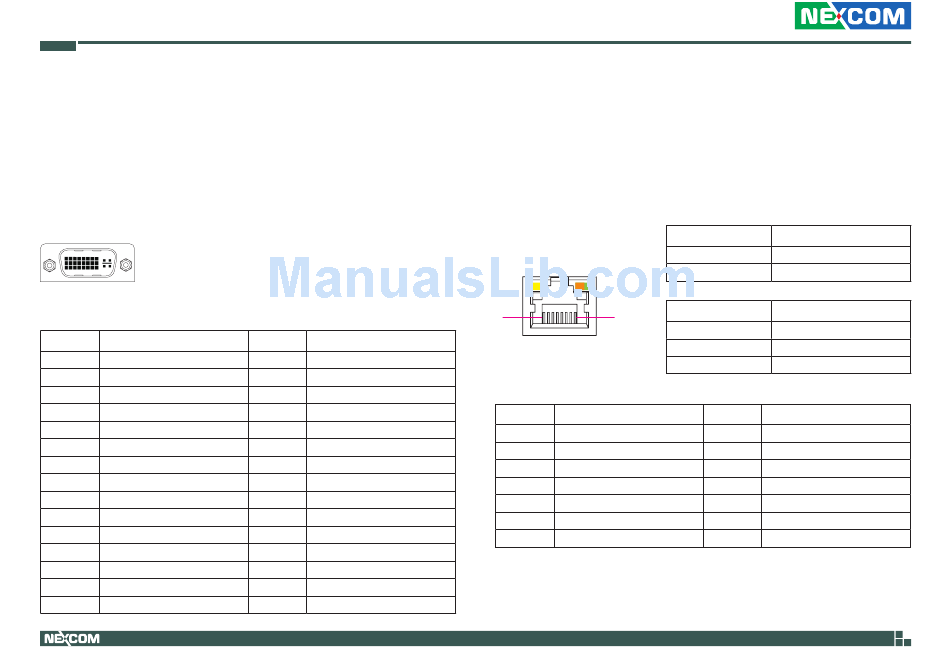

DVI-I Port

Connector type: 24-pin D-Sub, 2.0mm-M-180 (DVI)
Connector location: CN7
1 8
17 24
Pin Definition
1 DVI1_DATA2_N
3 GND
5 NC
7 DVI1_DATA
9 DVI1_DATA1_N
11 GND
13 NC
15 GND
17 DVI1_DATA0_N
19 GND
21 VGA_DATA
23 DVI1_CLK_P
C1 RED_VGA
C3 BLUE_VGA
C5A VGA_GND
Copyright © 2017 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 DVI1_DATA2_P
4 NC
6 DVI1_CLK
8 VS_VGA
10 DVI1_DATA_1_P
12 NC
14 5V
16 DVI1_HPD
18 DVI1_DATA0_P
20 VGA_CLK
22 NC
24 DVI1_CLK_N
C2 GREEN_VGA
C4 HS_VGA
C5B VGA_GND

LAN1 Port

Connector type: RJ45 port with LEDs
Connector location: LAN1A
ACT LINK
8 1
Pin Definition
1 LAN1_MDI0P
3 LAN1_MDI1P
5 LAN1_TCTG
7 LAN1_MDI2P
9 LAN1_MDI3P
11 LAN1_LEDACT#
13 LAN1_LINK1G#
14
Act Status
Flashing Yellow Data activity
Off No activity
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
Off 10Mbps or no link
Pin Definition
2 LAN1_MDI0N
4 LAN1_MDI1N
6 LAN1_TCT
8 LAN1_MDI2N
10 LAN1_MDI3N
12 3VSB
14 LAN1_LINK100#
