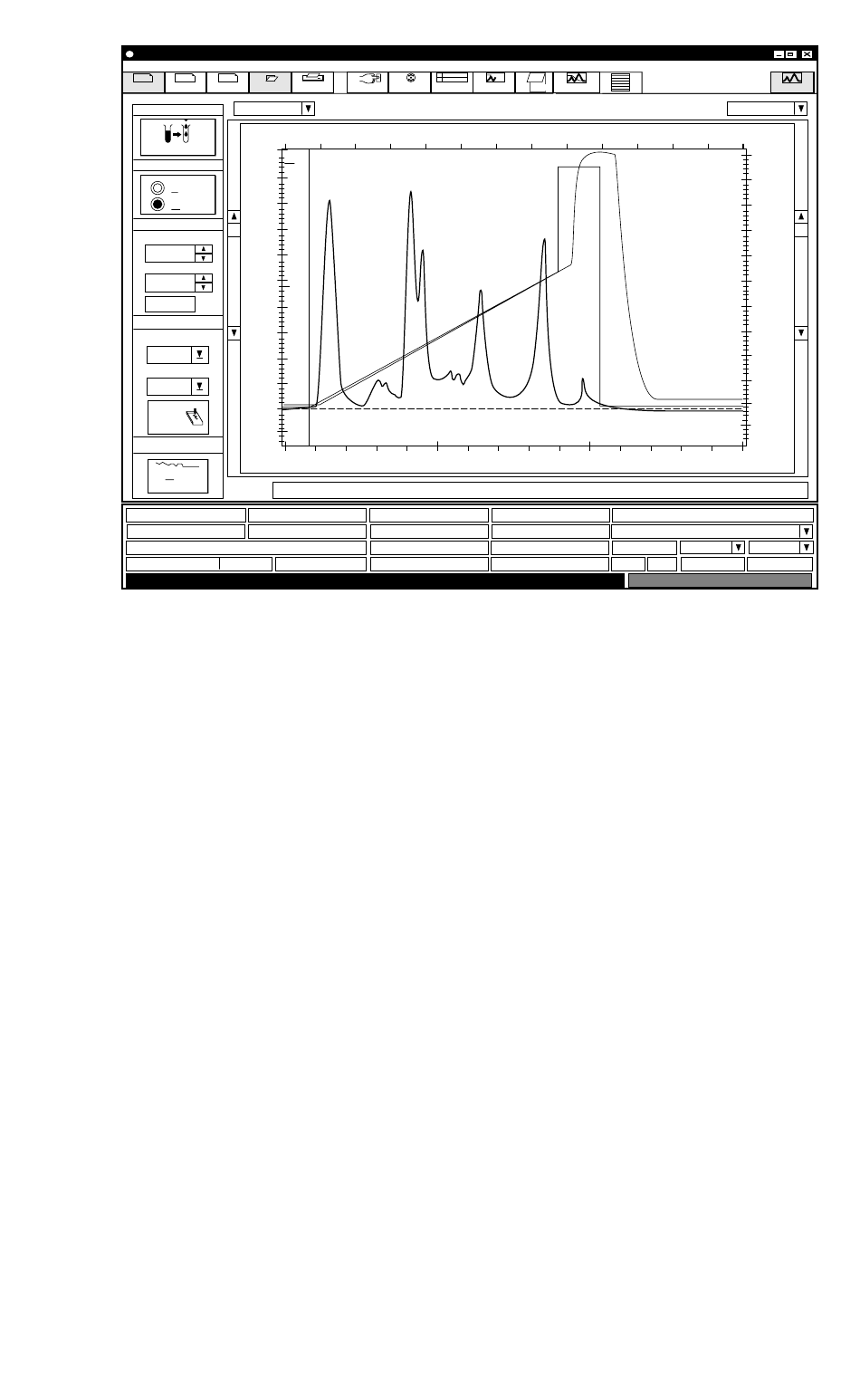

Fig. 13. Run control screen showing a completed run on an Automated
BioLogic HR System.
3. Insure that the 50 µl sample loop is connected to ports 3 and 6 of the
inject valve. Completely fill the loop with sample protein standard
via port 5 and a syringe and needle. Do not remove the syringe from
the injection port after filling the loop or the sample will siphon to
waste.
4. To launch the Run, click on the green Start toolbar button. The sample
will be loaded automatically.
5. Clicking the Hold toolbar button will hold the gradient pumps at the
current %B value and will not advance the programmed method until
the Continue toolbar button is pressed. Clicking the Pause toolbar
button will stop the pumps completely. Clicking the Continue toolbar
button will re-start the pumps at exactly the point where the program
was paused.
6. When this run is finished, the pumps automatically stop and a run
finished message appears in the bottom right of the status bar.
7. Figure 13 shows a typical run screen and chromatogram for this
separation.
