Mounting Bracket For Enclosure Sizes A5, B1, B2, C1, And C2 - Danfoss VLT Refrigeration Drive FC 103 Design Manual

System Integration
3 3

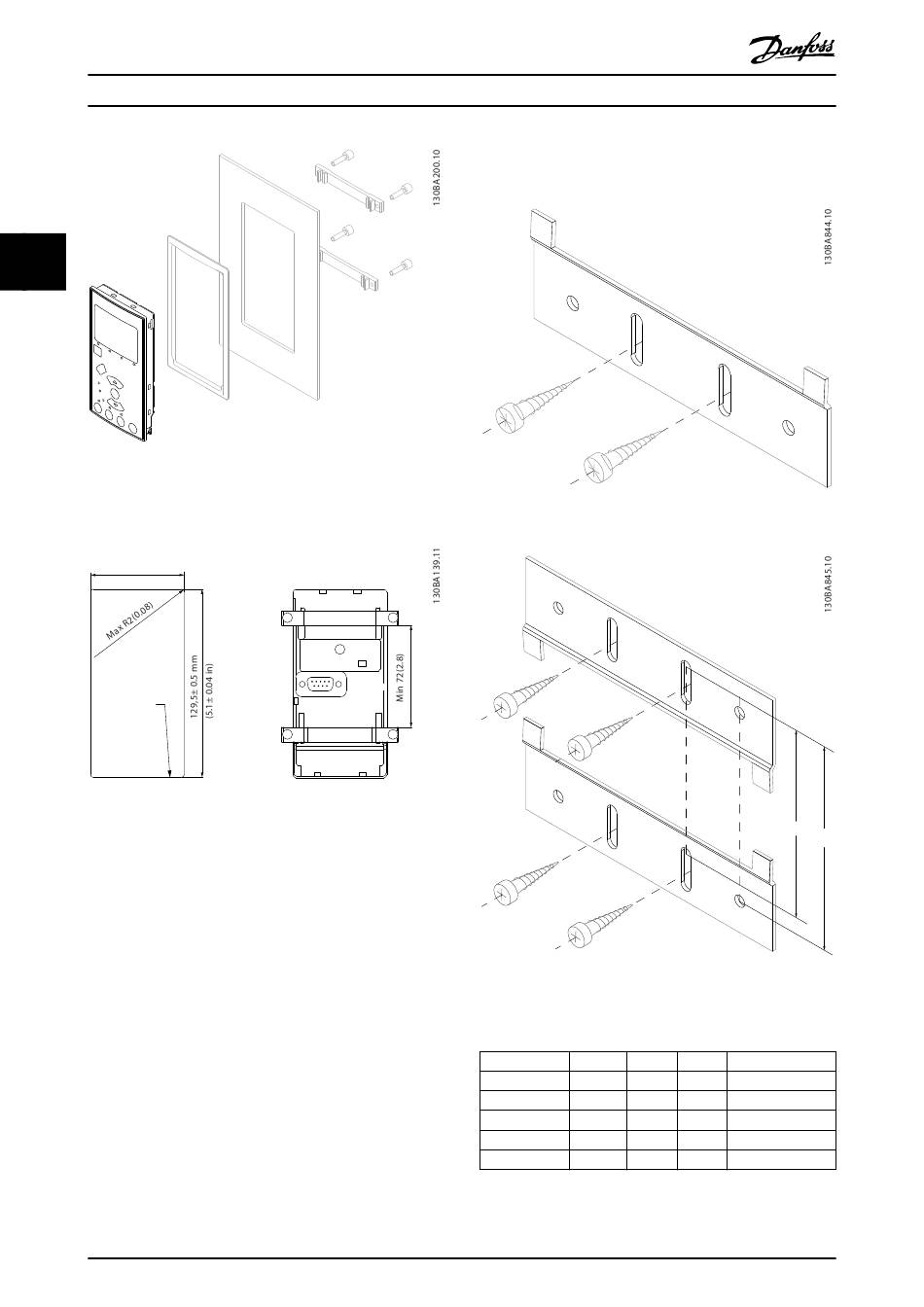

Illustration 3.37 LCP Kit with Numerical LCP, Fasteners, and
Gasket
Ordering Number 130B1114
64,5± 0.5 mm
(2.54± 0.04 in)
Panel
cut out
Illustration 3.38 Dimensions of LCP Kit
70
®
VLT Refrigeration Drive FC 103
3.8.9 Mounting Bracket for Enclosure Sizes
Illustration 3.39 Lower Bracket
Illustration 3.40 Upper Bracket
See dimensions in Table 3.21.
Enclosure Size
A5
B1
B2
B3
B4
Table 3.21 Details of Mounting Brackets
Danfoss A/S © 08/2015 All rights reserved.
A5, B1, B2, C1, and C2
IP A [mm] B [mm] Ordering number
55/66 480 495
21/55/66 535 550
21/55/66 705 720
21/55/66 730 745
21/55/66 820 835
A
B
130B1080
130B1081
130B1082
130B1083
130B1084
