Hole number
Dimensions 1)
and
recommended
use
UL [in]
1 Mains 1 1/4
2 Motor 1 1/4
3 Brake/load 1
sharing
4 Control cable 3/4
5 Control cable 1/2
1) Tolerance ±0.2 mm

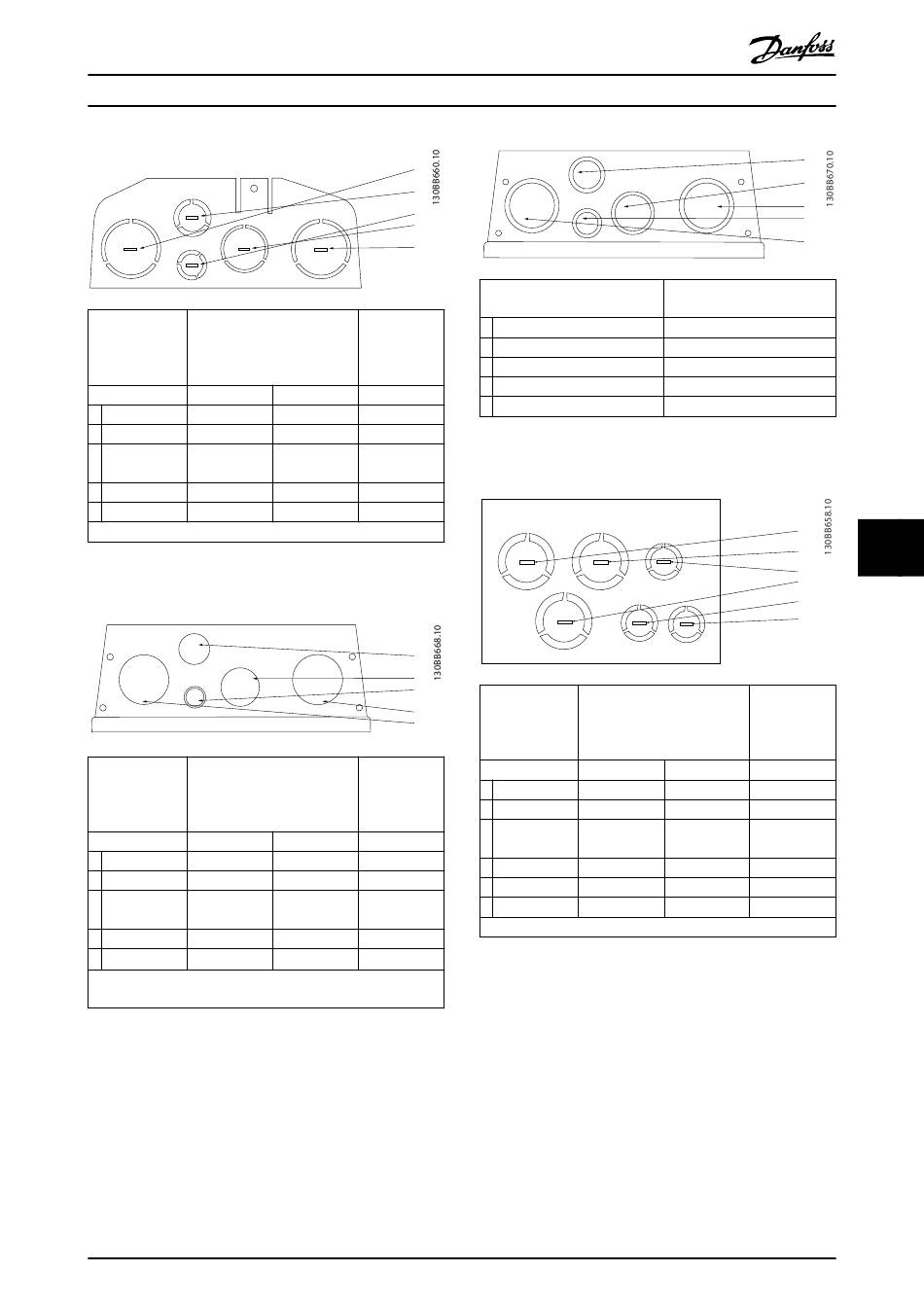

Illustration 8.30 Enclosure Size B2, IP21
Hole number
Dimensions 1)
and
recommended
use
UL [in]
1 Mains 1 1/4
2 Motor 1 1/4
3 Brake/load 1
sharing
4 Control cable 3/4
5 Control cable 1/2
2)
1) Tolerance ±0.2 mm
2) Knock-out hole
Illustration 8.31 Enclosure Size B2, IP55
MG16G202
Design Guide
[1]
[4]
[5]
[3]
[2]
Nearest
metric
[mm]
44.2 M40
44.2 M40
34.7 M32
28.4 M25
22.5 M20
[4]
[3]
[5]
[2]
[1]
Nearest
metric
[mm]
44.2 M40
44.2 M40
34.7 M32
28.4 M25
22.5 M20
Danfoss A/S © 08/2015 All rights reserved.
Hole number and
recommended use
1 Mains
2 Motor
3 Brake/load sharing
4 Control cable
5 Control cable
Illustration 8.32 Enclosure Size B2, IP55 Threaded Gland Holes
Hole number
Dimensions 1)
and
recommended
use
UL [in]
1 Mains 1
2 Motor 1
3 Brake/load 1
sharing
4 Control cable 1/2
5 Control cable 1/2
6 Control cable 1/2
1) Tolerance ±0.2 mm
Illustration 8.33 Enclosure Size B3, IP21
[4]
[3]
[2]
[5]
[1]
Nearest metric
M40
M40
M32
M25
M20
[3]
[2]
[4]
[1]
[5]
[6]
Nearest
metric
[mm]
34.7 M32
34.7 M32
34.7 M32
22.5 M20
22.5 M20
22.5 M20
