Appendix - Selected Drawing...
U
V W

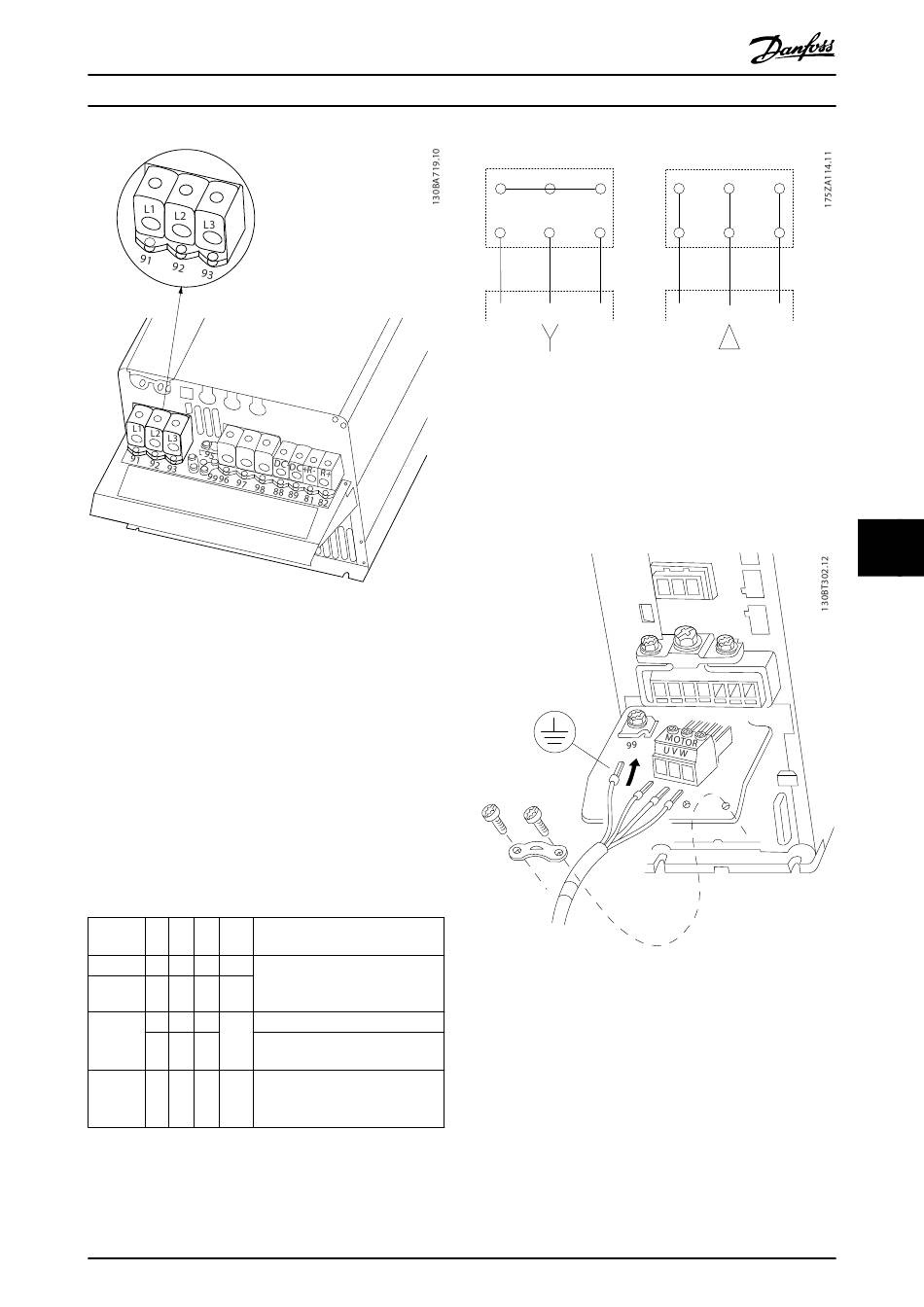

Illustration 8.9 Mains Connection Enclosure Size C4 (IP20)

8.2 Motor Connection Drawings

Motor connection
This collection of drawings is intended to aid planning for
access in the design phase.
Refer to the operating instructions for installation
procedures including:
•
Safety requirements.
•
Step-by-step installation procedures.
•
Terminal descriptions.
•
Alternative configurations.
•
Extra drawings.
Terminal 96 97 98 99
number
U V W Motor voltage 0–100% of mains
PE 1)
voltage.
3 wires out of motor.
U1 V1 W1 Delta-connected.
1)
W U2 V2 PE 6 wires out of the motor.
2
U1 V1 W1 PE Star-connected U2, V2, W2.
1)
U2, V2, and W2 to be intercon-
nected separately.
Table 8.1 Terminal Descriptions
1) Protective earth connection
MG16G202
Design Guide
Motor
U
2
U
1
FC
96
Illustration 8.10 Star and Delta Connections
All types of 3-phase asynchronous standard motors can be
connected to the frequency converter. Normally, small
motors are star-connected (230/400 V, Y). Large motors are
normally delta-connected (400/690 V, Δ). Refer to the
motor nameplate for correct connection mode and
voltage.
Illustration 8.11 Motor Connection for Enclosure Sizes A2 and
A3
