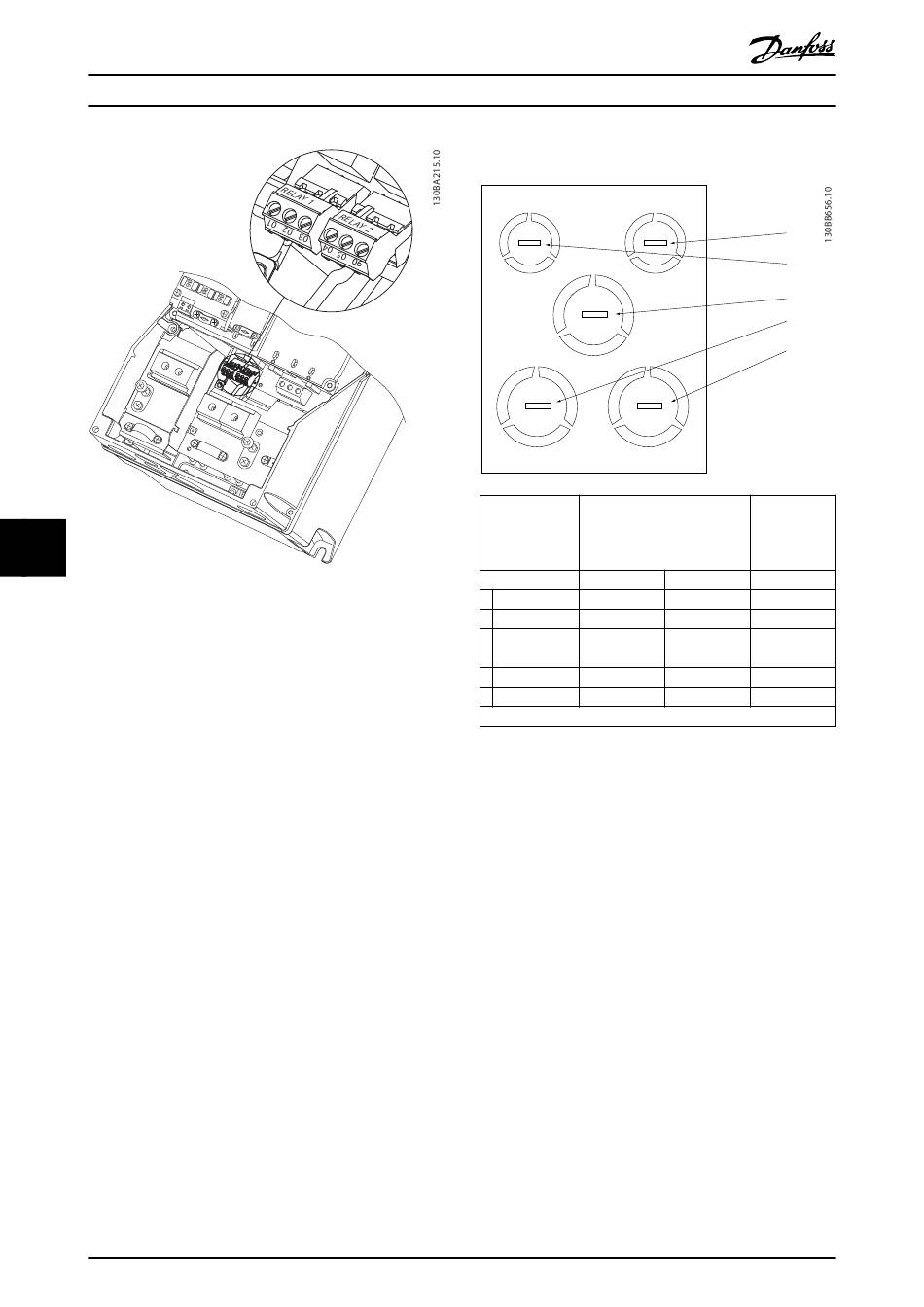

Illustration 8.20 Terminals for Relay Connection
(Enclosure Sizes A5, B1 and B2).
146
®
VLT Refrigeration Drive FC 103

8.4 Cable Entry Holes

Hole number
and
recommended
use
1 Mains
2 Motor
3 Brake/load
sharing
4 Control cable
5 Control cable
1) Tolerance ±0.2 mm
Illustration 8.21 Enclosure Size A2, IP21
Danfoss A/S © 08/2015 All rights reserved.
Dimensions 1)
UL [in] [mm]
3/4 28.4
3/4 28.4
3/4 28.4
1/2 22.5
1/2 22.5
[4]
[5]
[1]
[3]
[2]
Nearest
metric
M25
M25
M25
M20
M20
MG16G202
