Chapter 2: Upgrading Trays in the Storage Array

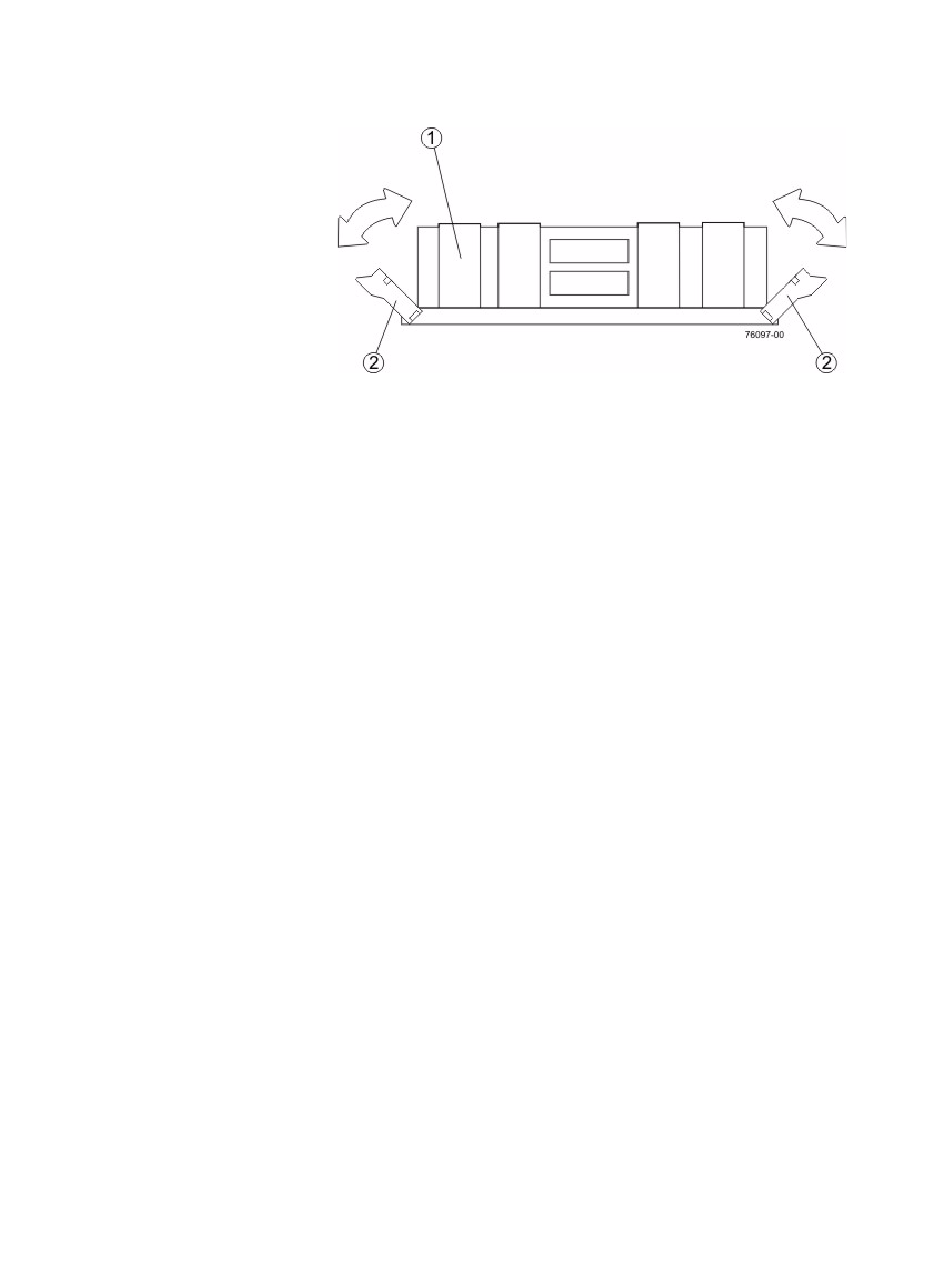

Figure 22 Removing a Cache Memory DIMM
3. Install the new cache memory DIMM.
a. Align the new cache memory DIMM in the slot.
b. Gently push down on the cache memory DIMM to seat the pins into the slot.
The ejector handles rise up as the cache memory DIMM is inserted into the
slot. When these ejector handles are in the vertical position, the cache
memory DIMM is fully engaged and is locked in place.
4. Repeat this procedure for the other controller canister.
5. Go to "Upgrading the Cache Backup Memory Device in the E2600
Controller-Drive Trays" on page 36.
1. Cache Memory DIMM
2. Ejector Handles
