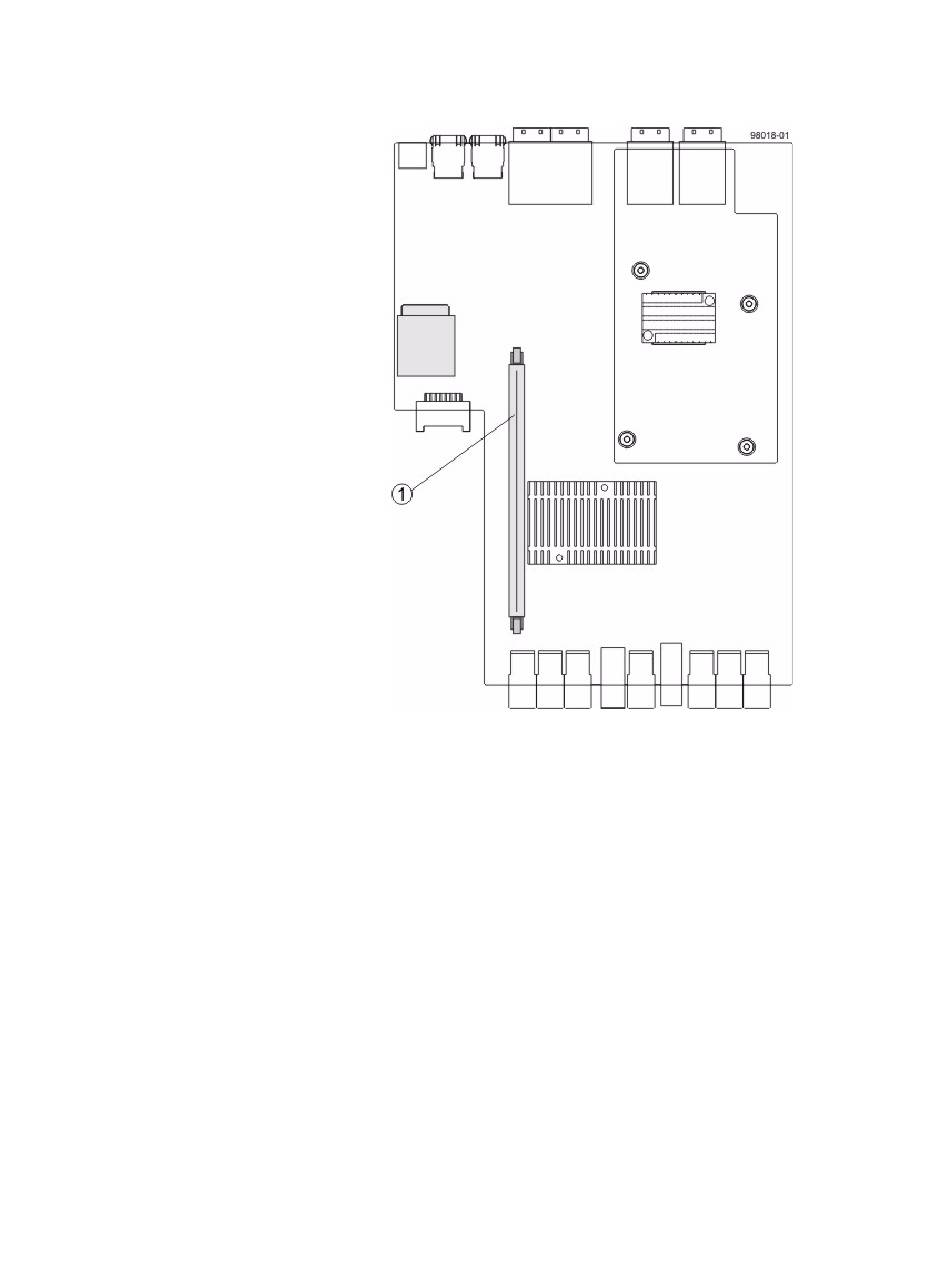

Figure 21 Cache Memory DIMM Slot – Top View
2. Remove the cache memory DIMM from the slot on the controller card shown in
the following figure.
a. Pull back on each ejector handle to disengage the cache memory DIMM pins
from the slot on the controller card.
b. Lift the cache memory DIMM out of the slot.
c. Place the cache memory DIMM that you removed on a flat, static-free
surface.
1. Cache Memory DIMM Slot
