Application Examples

4.3.4 SLC Application Example

Max. ref.
P 3-03
Preset ref.(0)
P 3-10(0)
State 1
Preset ref.(1)
P 3-10(1)
Term 18
P 5-10(start)
State 1
State 2
State 3

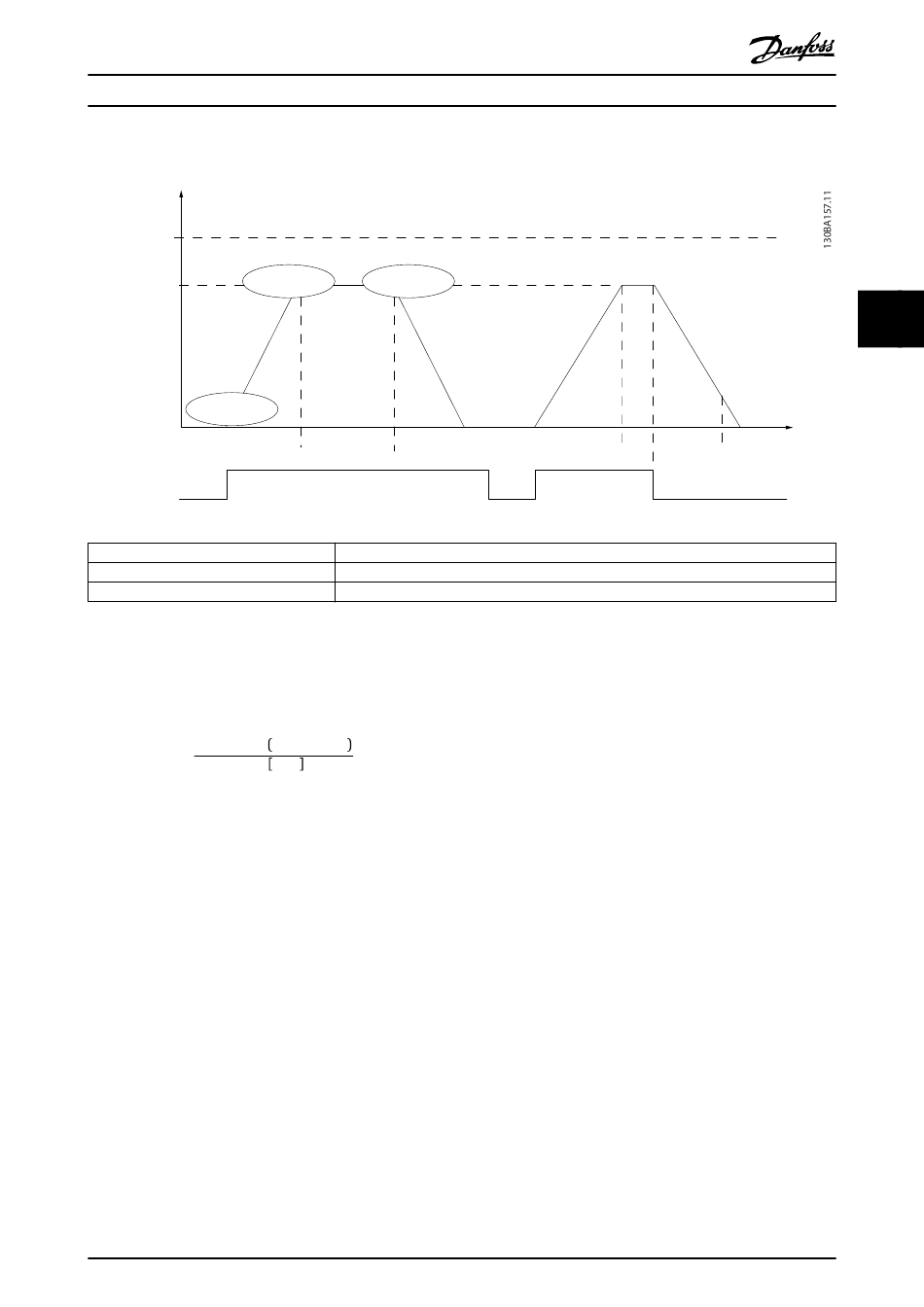

Illustration 4.12 Example of a Sequence
1. Set the ramping times in parameter 3-41 Ramp 1
Ramp Up Time and parameter 3-42 Ramp 1 Ramp
Down Time to the wanted times
t × n
acc norm
t =
ramp
ref RPM
Set terminal 27 to [0] No Operation
2.
(parameter 5-12 Terminal 27 Digital Input).
3. Set preset reference 0 to the first preset speed
(parameter 3-10 Preset Reference [0]) in percentage
of maximum reference speed
(parameter 3-03 Maximum Reference). For example:
60%.
4. Set preset reference 1 to the second preset speed
(parameter 3-10 Preset Reference [1] For example:
0% (zero).
5. Set the timer 0 for constant running speed in
parameter 13-20 SL Controller Timer [0]. For
example: 2 s.
6. Set event 1 in parameter 13-51 SL Controller Event
to [1] True.
7. Set event 2 in parameter 13-51 SL Controller Event
to [4] On Reference.
MG03M202
Design Guide
State 2 State 3
2 sec
Start and ramp up.
Run at reference speed for 2 s.
Ramp down and hold shaft until stop.
par . 1 − 25
Danfoss A/S © 06/2016 All rights reserved.
8. Set event 3 in parameter 13-51 SL Controller Event
to [30] Time Out 0.
9. Set event 4 in parameter 13-51 SL Controller Event
to [0] False.
10. Set action 1 in parameter 13-52 SL Controller
Action to [10] Select preset 0.
11. Set action 2 in parameter 13-52 SL Controller
Action to [29] Start Timer 0.
12. Set action 3 in parameter 13-52 SL Controller
Action to [11] Select preset 1.
13. Set action 4 in parameter 13-52 SL Controller
Action to [1] No Action.
14. Set the smart logic control in parameter 13-00 SL
Controller Mode to [1] ON.
Start/stop command is applied on terminal 18. If a stop
signal is applied, the frequency converter ramps down and
enters free mode.
