Application Examples
sequence starts over again from event [1] / action [1]. The

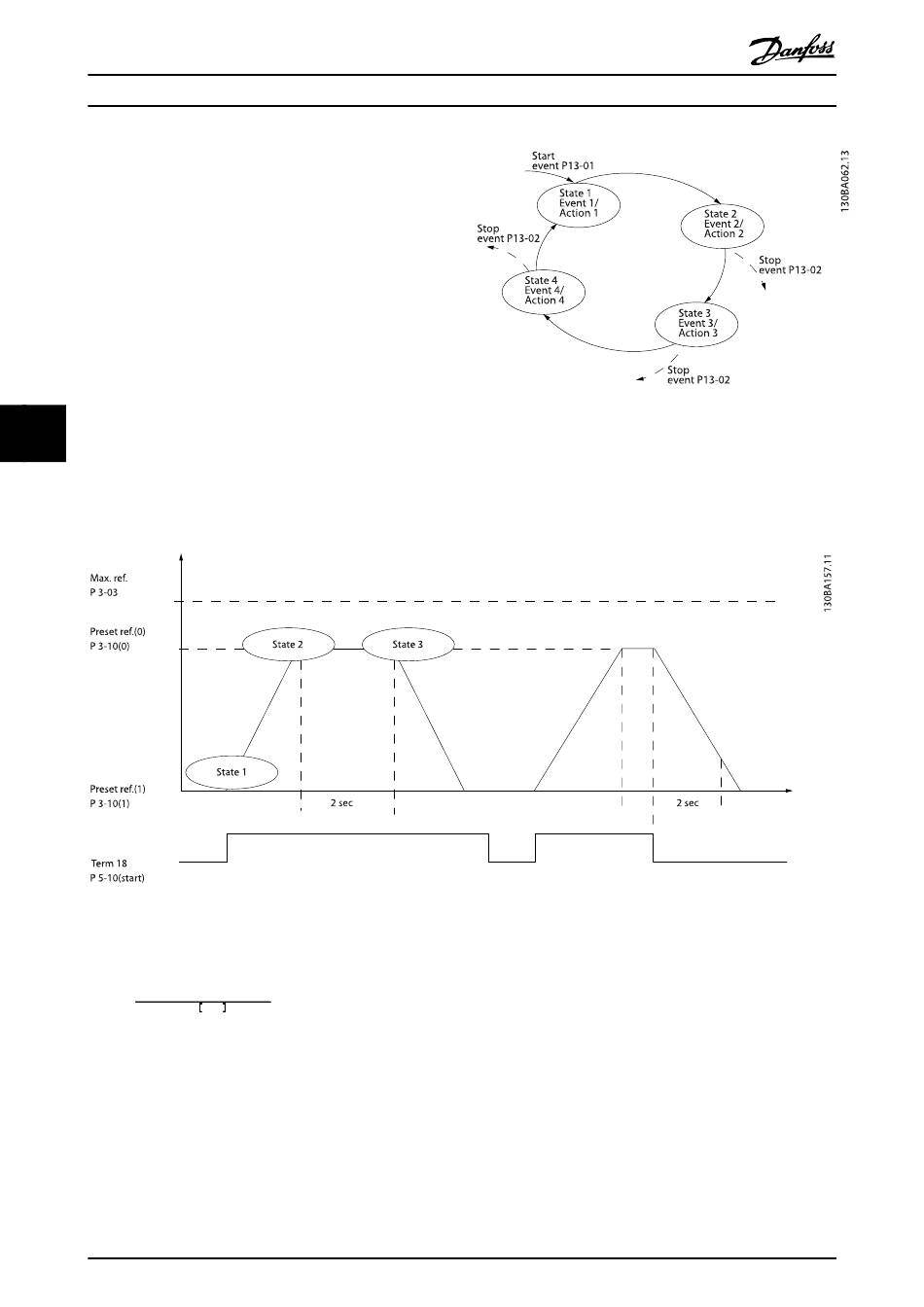

illustration shows an example with three events / actions:
6 6

6.1.7 SLC Application Example

One sequence 1
Illustration 6.5
Set the ramping times in 3-41 Ramp 1 Ramp Up Time and
3-42 Ramp 1 Ramp Down Time to the wanted times
t acc ×
t ramp
=
Set term 27 to No Operation (5-12 Terminal 27 Digital Input)
Set Preset reference 0 to first preset speed (3-10 Preset
Reference [0]) in percentage of Max reference speed
(3-03 Maximum Reference). Ex.: 60%
Set preset reference 1 to second preset speed (3-10 Preset
Reference [1] Ex.: 0 % (zero).
Set the timer 0 for constant running speed in 13-20 SL
Controller Timer [0]. Ex.: 2 sec.
84
( . 1 − 25 )
n norm par
ref RPM
MG16G102 - VLT
®
VLT Refrigeration Drive Design Guide
Illustration 6.4
Start – ramp up – run at reference speed 2 sec – ramp
down and hold shaft until stop.
Set Event 1 in 13-51 SL Controller Event [1] to True [1]
Set Event 2 in 13-51 SL Controller Event [2] to On Reference
[4]
Set Event 3 in 13-51 SL Controller Event [3] to Time Out 0
[30]
Set Event 4 in 13-51 SL Controller Event [4] to False [0]
Set Action 1 in 13-52 SL Controller Action [1] to Select preset
0 [10]
Set Action 2 in 13-52 SL Controller Action [2] to Start Timer
0 [29]
Set Action 3 in 13-52 SL Controller Action [3] to Select preset
1 [11]
®
