Danfoss VLT DriveMotor FCP 106 Design Manual page 65

Specifications
LA
E
T
C
Motor frame size 71
M [mm (in)] 85 (3.3)
N [mm (in)] 70 (2.8)
P [mm (in)] 105 (4.1)
S [mm (in)] M6
T [mm (in)] 2.5 (0.1)
LA [mm (in)] 11 (0.4)
Motor frame size 71
M [mm (in)] 115 (4.5)
N [mm (in)] 95 (3.7)
P [mm (in)] 140 (5.5)
S [mm (in)] M8
T [mm (in)] 2.5 (0.1)
LA [mm (in)] 8 (0.31)
HA [mm (in)] HA = AC1 + height of the frequency converter.
For frequency converter dimensions, see Table 6.4.
®
HD [mm (in)] without VLT PROFIBUS DP MCA 101
MH1 247 (9.7)
MH2 248 (9.8)
MH3 –
®
HD [mm (in)] with VLT PROFIBUS DP MCA 101
MH1 262 (10.3)
MH2 263 (10.4)
MH3 –

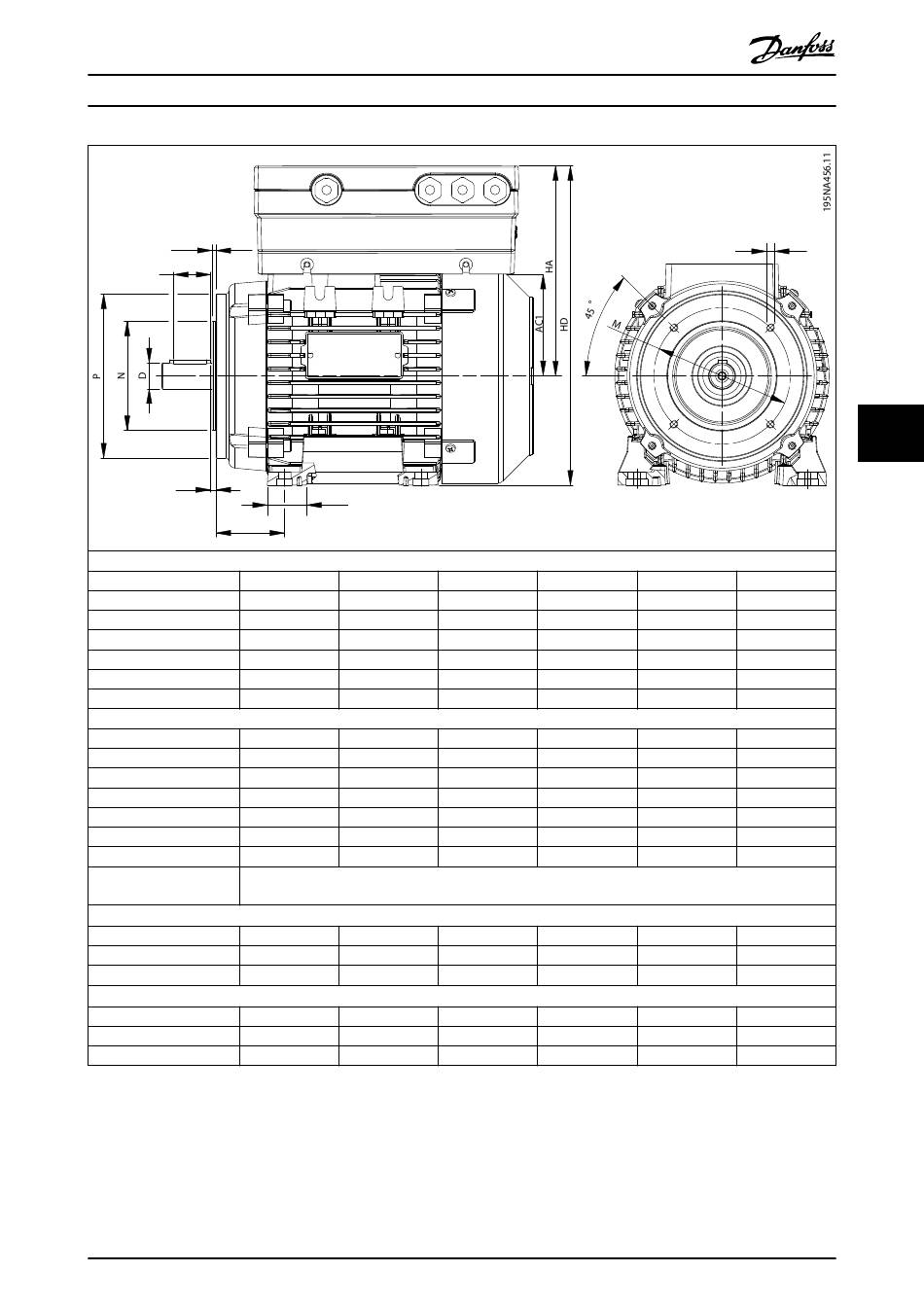

Table 6.7 FCM 106 Dimensions: Face Mounting - B14, B34 for Asynchronous or PM motor
MG03M202
Design Guide
BA
Small flange B14
80 90S
100 (4.0) 115 (4.5)
80 (3.1) 95 (3.7)
120 (4.7) 140 (5.5)
M6 M8
3 (0.12) 3 (0.12)
9 (0.35) 9 (0.35)
Large flange B14
80 90S
130 (5.1) 130 (5.1)
110 (4.3) 110 (4.3)
160 (6.3) 160 (6.3)
M8 M8
3.5 (0.14) 3.5 (0.14)
8.5 (0.33) 9 (0.35)
267 (10.5) 286 (11.3)
268 (10.6) 287 (11.4)
– 299 (11.8)
282 (11.1) 301 (11.9)
283 (11.2) 302 (11.9)
– 314 (12.4)
