T1/PRI straight-through cable: RJ48C/RJ48C
RJ48C/RJ48C straight-through cable specifications
Pair # Signal Male RJ48C (Stryker Hub) Male RJ48C (Smart Jack)
1
Receive
2
Transmit
44

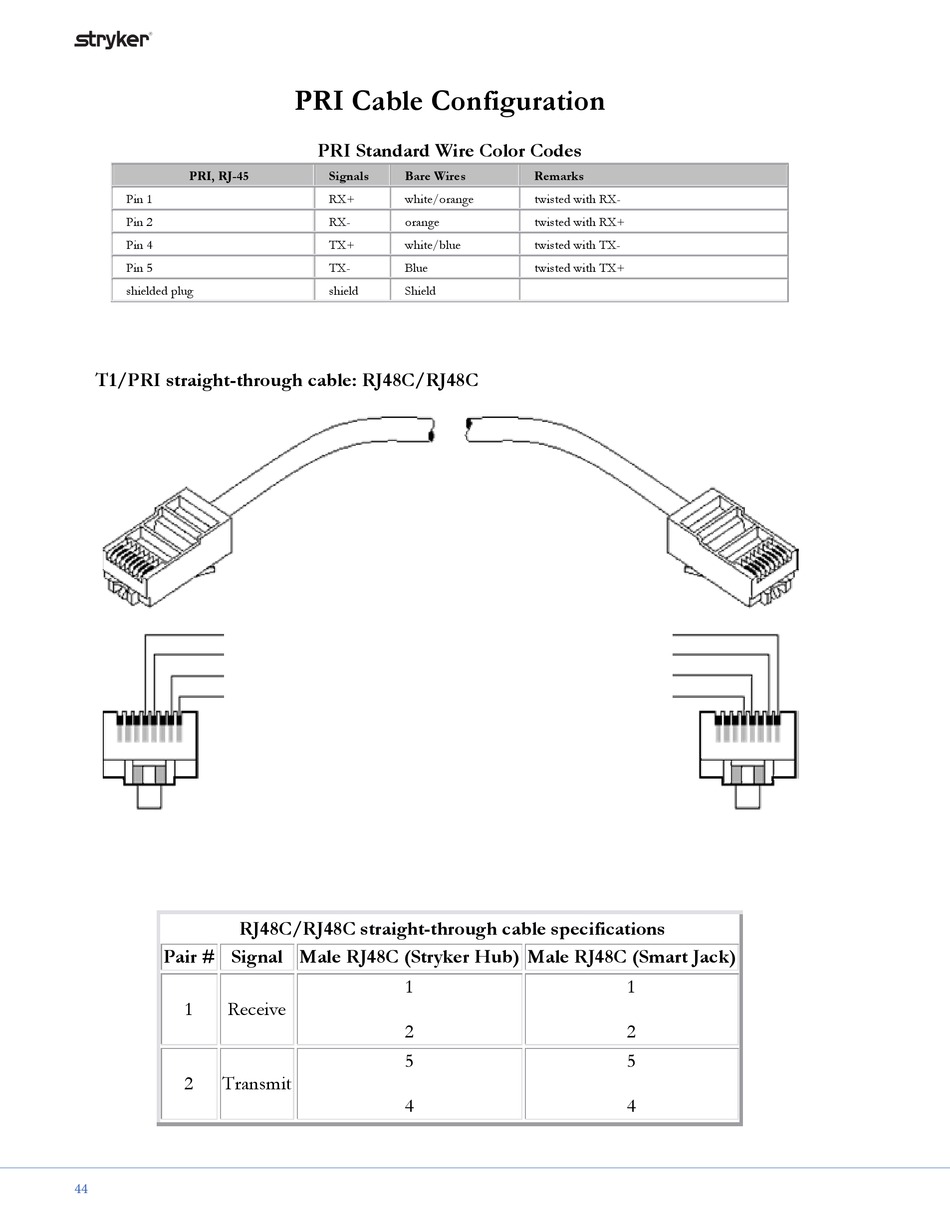

PRI Cable Configuration
PRI Standard Wire Color Codes
Signals
Bare Wires
RX+
white/orange
RX-
orange
TX+
white/blue
TX-
Blue
shield
Shield
1
2
5
4
Remarks
twisted with RX-
twisted with RX+
twisted with TX-
twisted with TX+
1
2
5
4
