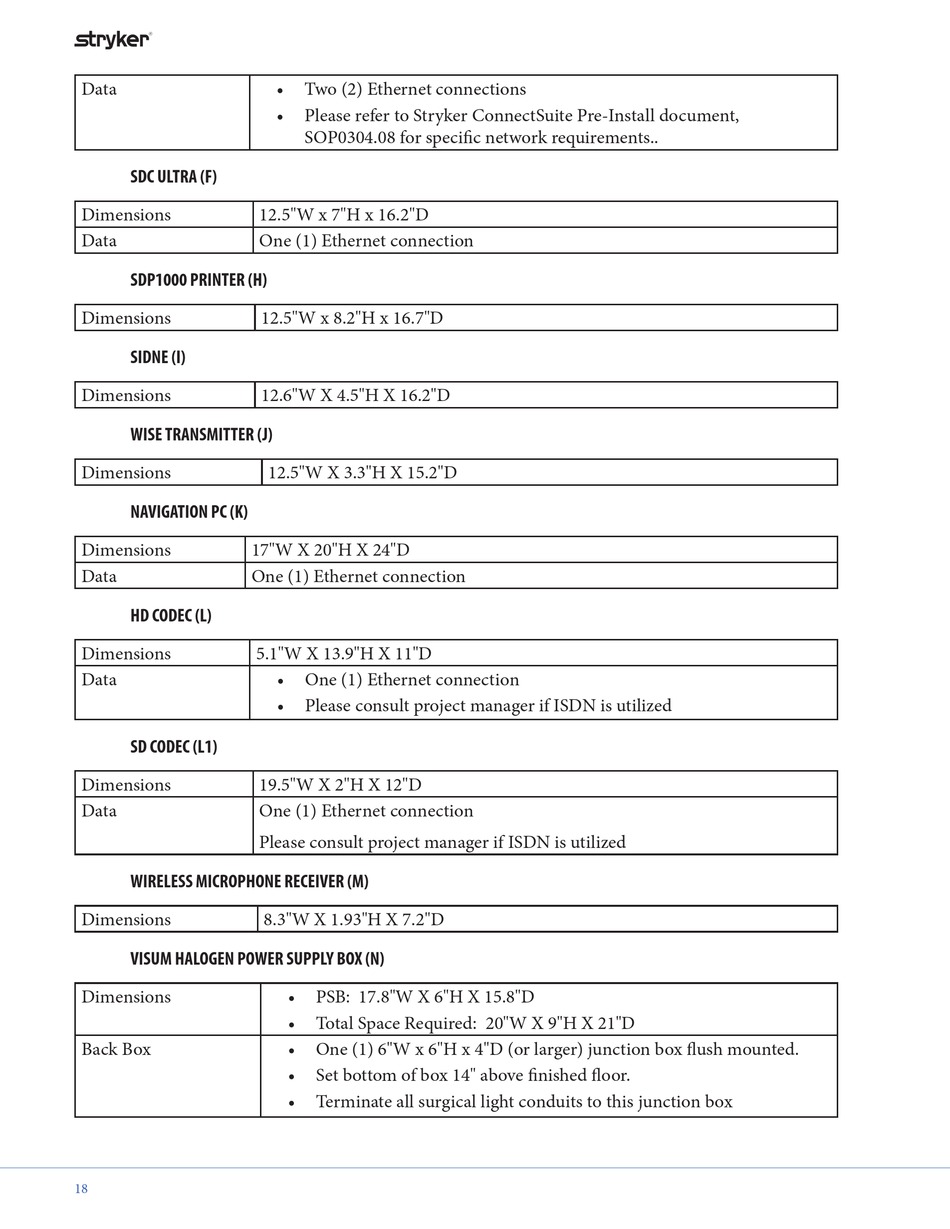

Stryker Operating Room Information System Preinstallation Manual page 22

S
Data
SDC ULTRA (F)
Dimensions
Data
SDP1000 PRINTER (H)
Dimensions
SIDNE (I)
Dimensions
WISE TRANSMITTER (J)
Dimensions
NAVIGATION PC (K)
Dimensions 17"W X 20"H X 24"D
Data One (1) Ethernet connection
HD CODEC (L)
Dimensions
Data
SD CODEC (L1)
Dimensions
Data
WIRELESS MICROPHONE RECEIVER (M)
Dimensions
VISUM HALOGEN POWER SUPPLY BOX (N)
Dimensions
Back Box
18
• Two (2) Ethernet connections
• Please refer to Stryker ConnectSuite Pre-Install document,
SOP0304.08 for specific network requirements..
12.5"W x 7"H x 16.2"D
One (1) Ethernet connection
12.5"W x 8.2"H x 16.7"D
12.6"W X 4.5"H X 16.2"D
12.5"W X 3.3"H X 15.2"D
5.1"W X 13.9"H X 11"D
• One (1) Ethernet connection
• Please consult project manager if ISDN is utilized
19.5"W X 2"H X 12"D
One (1) Ethernet connection
Please consult project manager if ISDN is utilized
8.3"W X 1.93"H X 7.2"D
• PSB: 17.8"W X 6"H X 15.8"D
• Total Space Required: 20"W X 9"H X 21"D
• One (1) 6"W x 6"H x 4"D (or larger) junction box flush mounted.
• Set bottom of box 14" above finished floor.
• Terminate all surgical light conduits to this junction box
