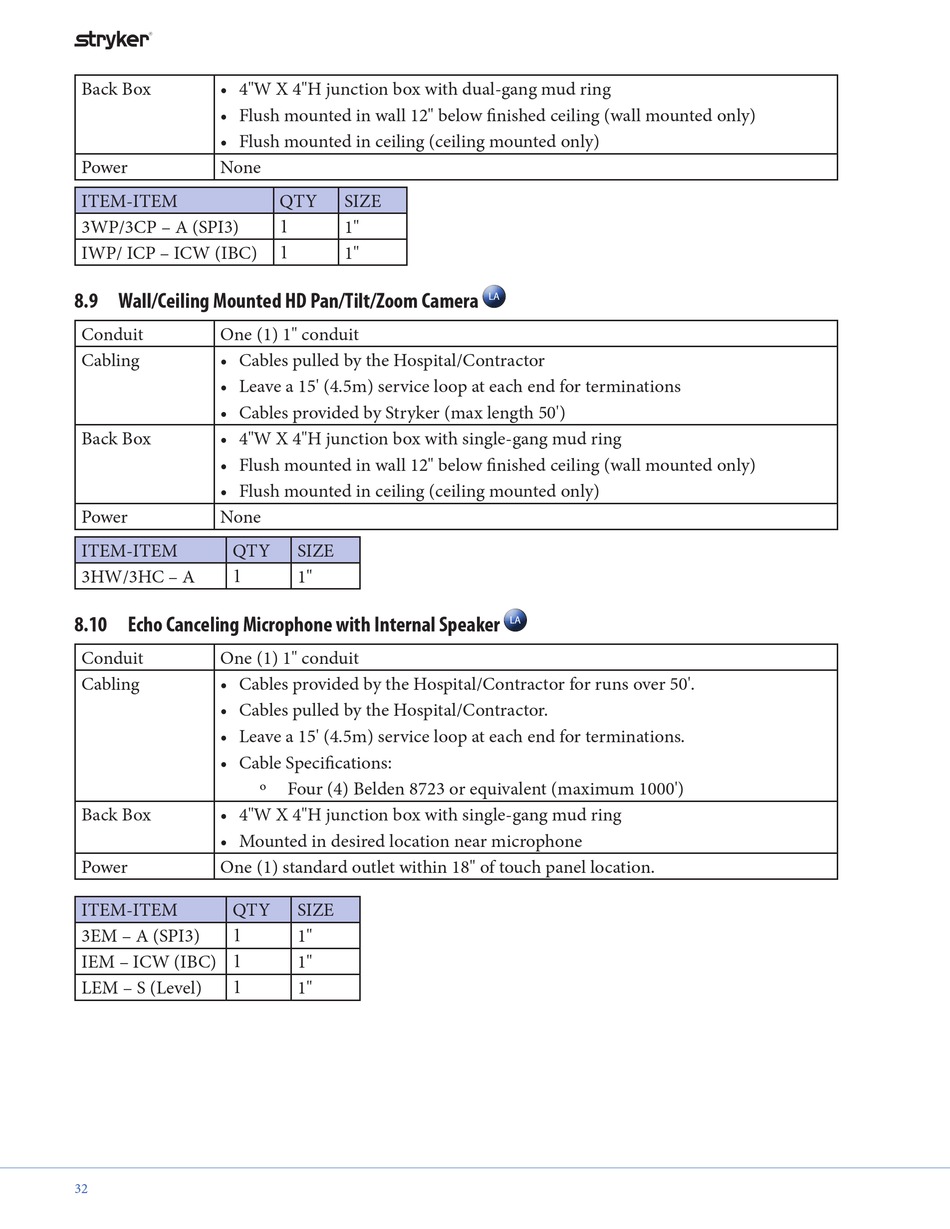

Wall/Ceiling Mounted Hd Pan/Tilt/Zoom Camera; Echo Canceling Microphone With Internal Speaker - Stryker Operating Room Information System Preinstallation Manual

S
Back Box • 4"W X 4"H junction box with dual-gang mud ring
• Flush mounted in wall 12" below finished ceiling (wall mounted only)
• Flush mounted in ceiling (ceiling mounted only)
Power None
ITEM-ITEM
3WP/3CP – A (SPI3)
IWP/ ICP – ICW (IBC)

8.9 Wall/Ceiling Mounted HD Pan/Tilt/Zoom Camera

Conduit One (1) 1" conduit
Cabling • Cables pulled by the Hospital/Contractor
• Leave a 15' (4.5m) service loop at each end for terminations
• Cables provided by Stryker (max length 50')
Back Box • 4"W X 4"H junction box with single-gang mud ring
• Flush mounted in wall 12" below finished ceiling (wall mounted only)
• Flush mounted in ceiling (ceiling mounted only)
Power None
ITEM-ITEM QTY
1
3HW/3HC – A

8.10 Echo Canceling Microphone with Internal Speaker

Conduit One (1) 1" conduit
Cabling • Cables provided by the Hospital/Contractor for runs over 50'.
• Cables pulled by the Hospital/Contractor.
• Leave a 15' (4.5m) service loop at each end for terminations.
• Cable Specifications:
Back Box • 4"W X 4"H junction box with single-gang mud ring
• Mounted in desired location near microphone
Power One (1) standard outlet within 18" of touch panel location.
ITEM-ITEM QTY
1
3EM – A (SPI3)
IEM – ICW (IBC) 1
1
LEM – S (Level)
32
QTY SIZE
1
1"
1
1"
SIZE
1"
Four (4) Belden 8723 or equivalent (maximum 1000')
º
SIZE
1"
1"
1"
LA
LA
