S
10.1
Operating Room Status Systems
The Room Status System combines the Fixed OR Status Camera video signals from separate rooms
into one display located at the OR Control Desk. All video, touch panel control, and power cables are
run to a central location, usually the Video Network Hub or IT/storage closet. This section describes
site preparation requirements necessary prior to the installation phase of the OR Status System.
Note
All cabling will be provided and pulled by the Hospital/Contractor prior to
Stryker's arrival.
10.1.1
Partial Floor and Elevation Drawings

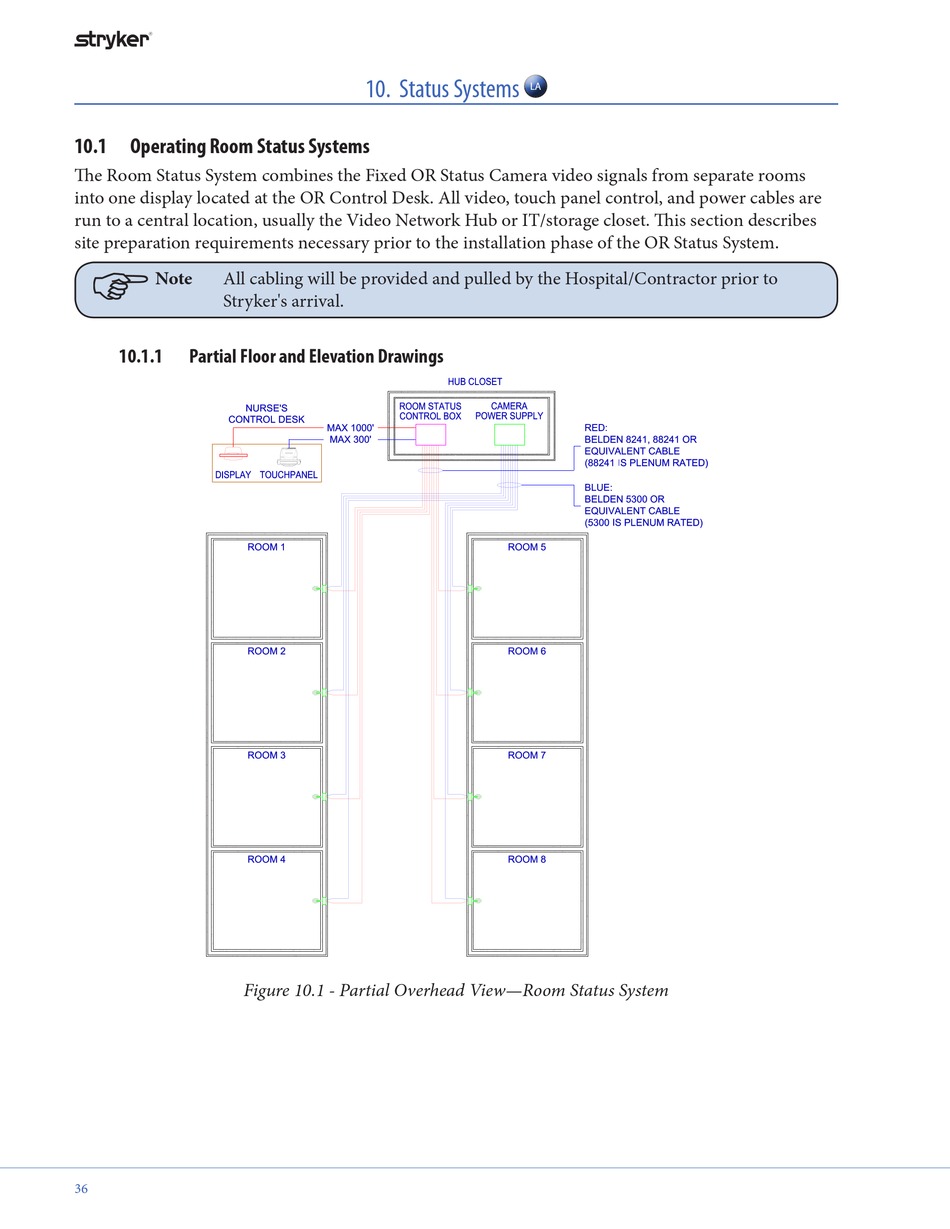

Figure 10.1 - Partial Overhead View—Room Status System
36
10. Status Systems
