Ibc With Customer Supplied Casework (Icw3); Casework Equipment; Switchpoint Infinity 2 (A2); Spi2 Touch Panel, 19" (B2) - Stryker Operating Room Information System Preinstallation Manual

S
6.4

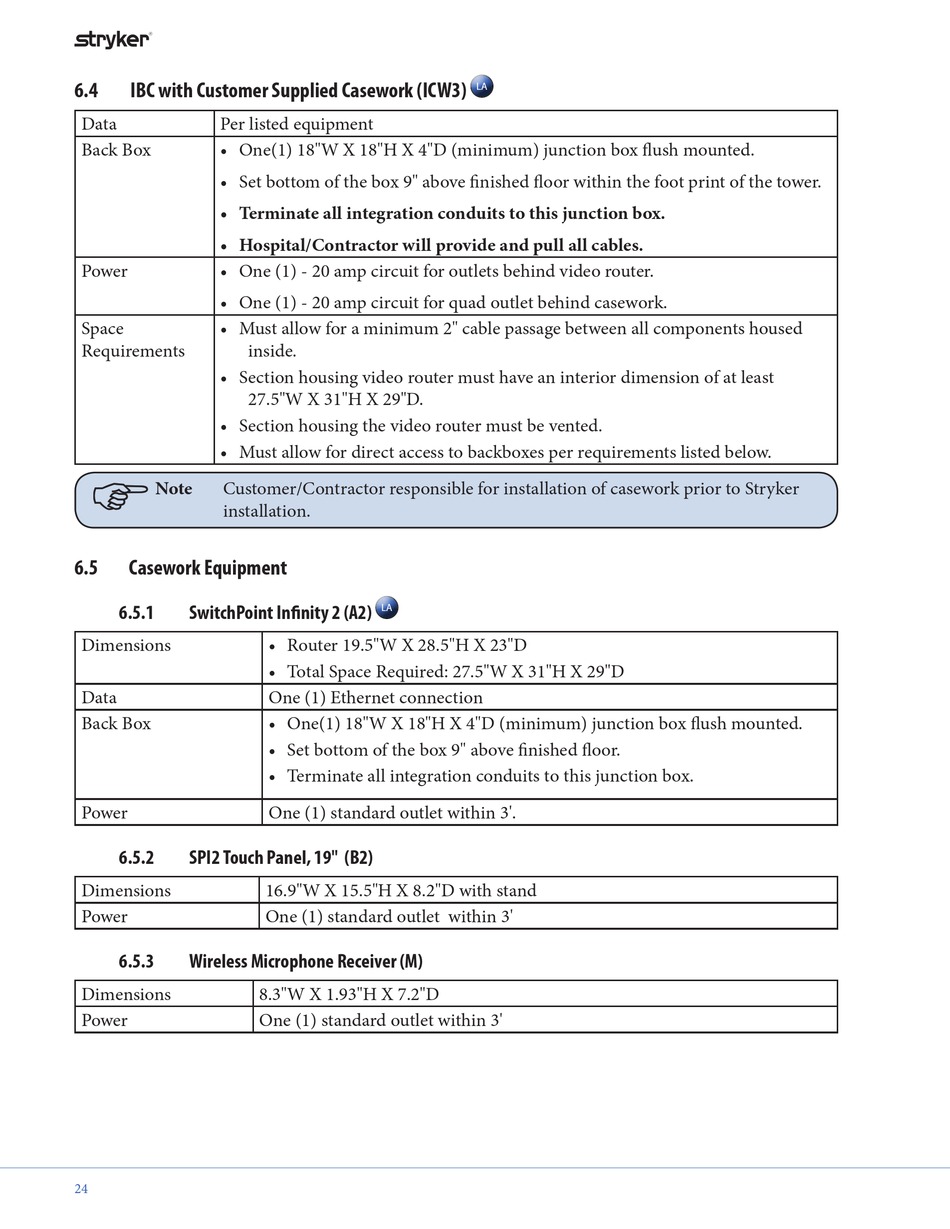

IBC with Customer Supplied Casework (ICW3)

Data Per listed equipment
Back Box • One(1) 18"W X 18"H X 4"D (minimum) junction box flush mounted.
• Set bottom of the box 9" above finished floor within the foot print of the tower.
• Terminate all integration conduits to this junction box.
• Hospital/Contractor will provide and pull all cables.
Power • One (1) - 20 amp circuit for outlets behind video router.
• One (1) - 20 amp circuit for quad outlet behind casework.
Space • Must allow for a minimum 2" cable passage between all components housed
Requirements inside.
• Section housing video router must have an interior dimension of at least
27.5"W X 31"H X 29"D.
• Section housing the video router must be vented.
• Must allow for direct access to backboxes per requirements listed below.
Note
Customer/Contractor responsible for installation of casework prior to Stryker
installation.
6.5

Casework Equipment

6.5.1

SwitchPoint Infinity 2 (A2)

Dimensions
Data
Back Box
Power
6.5.2

SPI2 Touch Panel, 19" (B2)

Dimensions
Power
6.5.3

Wireless Microphone Receiver (M)

Dimensions
Power
24
LA
• Router 19.5"W X 28.5"H X 23"D
• Total Space Required: 27.5"W X 31"H X 29"D
One (1) Ethernet connection
• One(1) 18"W X 18"H X 4"D (minimum) junction box flush mounted.
• Set bottom of the box 9" above finished floor.
• Terminate all integration conduits to this junction box.
One (1) standard outlet within 3'.
16.9"W X 15.5"H X 8.2"D with stand
One (1) standard outlet within 3'
8.3"W X 1.93"H X 7.2"D
One (1) standard outlet within 3'
