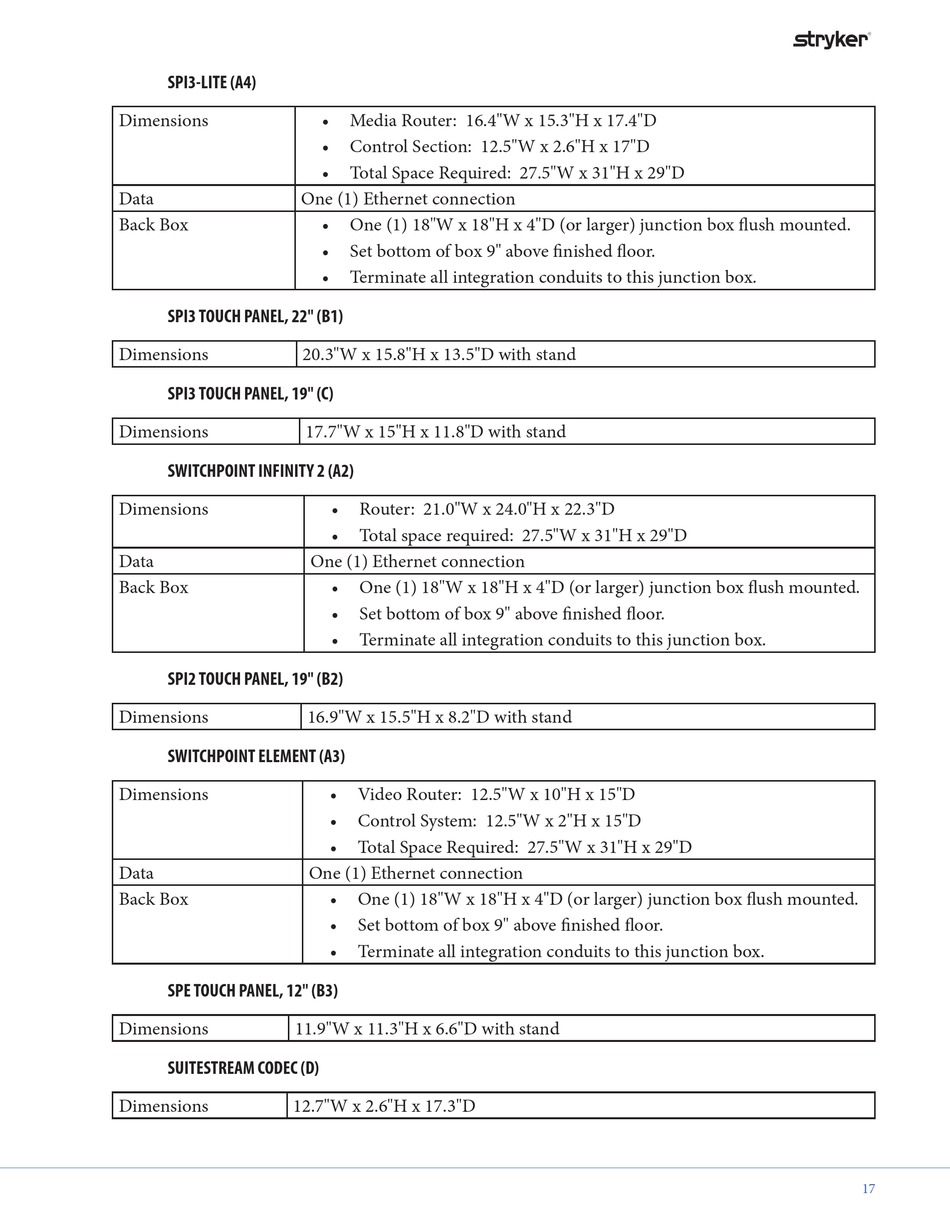

Stryker Operating Room Information System Preinstallation Manual page 21

SPI3-LITE (A4)
Dimensions
Data
Back Box
SPI3 TOUCH PANEL, 22" (B1)
Dimensions
SPI3 TOUCH PANEL, 19" (C)
Dimensions
SWITCHPOINT INFINITY 2 (A2)
Dimensions
Data
Back Box
SPI2 TOUCH PANEL, 19" (B2)
Dimensions
SWITCHPOINT ELEMENT (A3)
Dimensions
Data
Back Box
SPE TOUCH PANEL, 12" (B3)
Dimensions 11.9"W x 11.3"H x 6.6"D with stand
SUITESTREAM CODEC (D)
Dimensions 12.7"W x 2.6"H x 17.3"D
• Media Router: 16.4"W x 15.3"H x 17.4"D
• Control Section: 12.5"W x 2.6"H x 17"D
• Total Space Required: 27.5"W x 31"H x 29"D
One (1) Ethernet connection
• One (1) 18"W x 18"H x 4"D (or larger) junction box flush mounted.
• Set bottom of box 9" above finished floor.
• Terminate all integration conduits to this junction box.
20.3"W x 15.8"H x 13.5"D with stand
17.7"W x 15"H x 11.8"D with stand
• Router: 21.0"W x 24.0"H x 22.3"D
• Total space required: 27.5"W x 31"H x 29"D
One (1) Ethernet connection
• One (1) 18"W x 18"H x 4"D (or larger) junction box flush mounted.
• Set bottom of box 9" above finished floor.
• Terminate all integration conduits to this junction box.
16.9"W x 15.5"H x 8.2"D with stand
• Video Router: 12.5"W x 10"H x 15"D
• Control System: 12.5"W x 2"H x 15"D
• Total Space Required: 27.5"W x 31"H x 29"D
One (1) Ethernet connection
• One (1) 18"W x 18"H x 4"D (or larger) junction box flush mounted.
• Set bottom of box 9" above finished floor.
• Terminate all integration conduits to this junction box.
S
17
