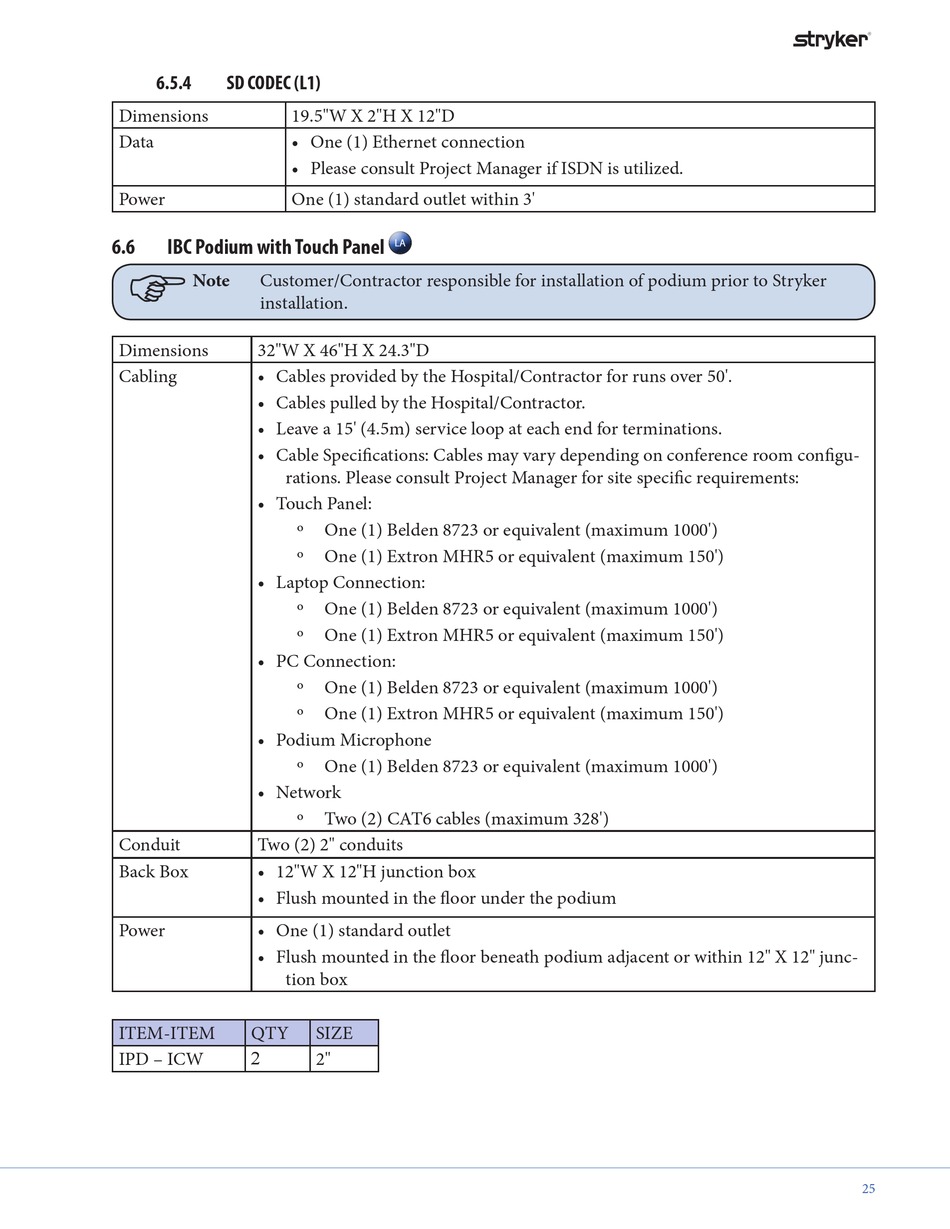

Sd Codec (L1); Ibc Podium With Touch Panel - Stryker Operating Room Information System Preinstallation Manual

6.5.4

SD CODEC (L1)

Dimensions
Data
Power
6.6

IBC Podium with Touch Panel

Note
Customer/Contractor responsible for installation of podium prior to Stryker
installation.
Dimensions 32"W X 46"H X 24.3"D
Cabling • Cables provided by the Hospital/Contractor for runs over 50'.
• Cables pulled by the Hospital/Contractor.
• Leave a 15' (4.5m) service loop at each end for terminations.
• Cable Specifications: Cables may vary depending on conference room configu-
rations. Please consult Project Manager for site specific requirements:
• Touch Panel:
• Laptop Connection:
• PC Connection:
• Podium Microphone
• Network
Conduit Two (2) 2" conduits
Back Box • 12"W X 12"H junction box
• Flush mounted in the floor under the podium
Power • One (1) standard outlet
• Flush mounted in the floor beneath podium adjacent or within 12" X 12" junc-
tion box
ITEM-ITEM QTY
2
IPD – ICW
19.5"W X 2"H X 12"D
• One (1) Ethernet connection
• Please consult Project Manager if ISDN is utilized.
One (1) standard outlet within 3'
LA
One (1) Belden 8723 or equivalent (maximum 1000')
º
One (1) Extron MHR5 or equivalent (maximum 150')
º
One (1) Belden 8723 or equivalent (maximum 1000')
º
One (1) Extron MHR5 or equivalent (maximum 150')
º
One (1) Belden 8723 or equivalent (maximum 1000')
º
One (1) Extron MHR5 or equivalent (maximum 150')
º
One (1) Belden 8723 or equivalent (maximum 1000')
º
Two (2) CAT6 cables (maximum 328')
º
SIZE
2"
S
25
