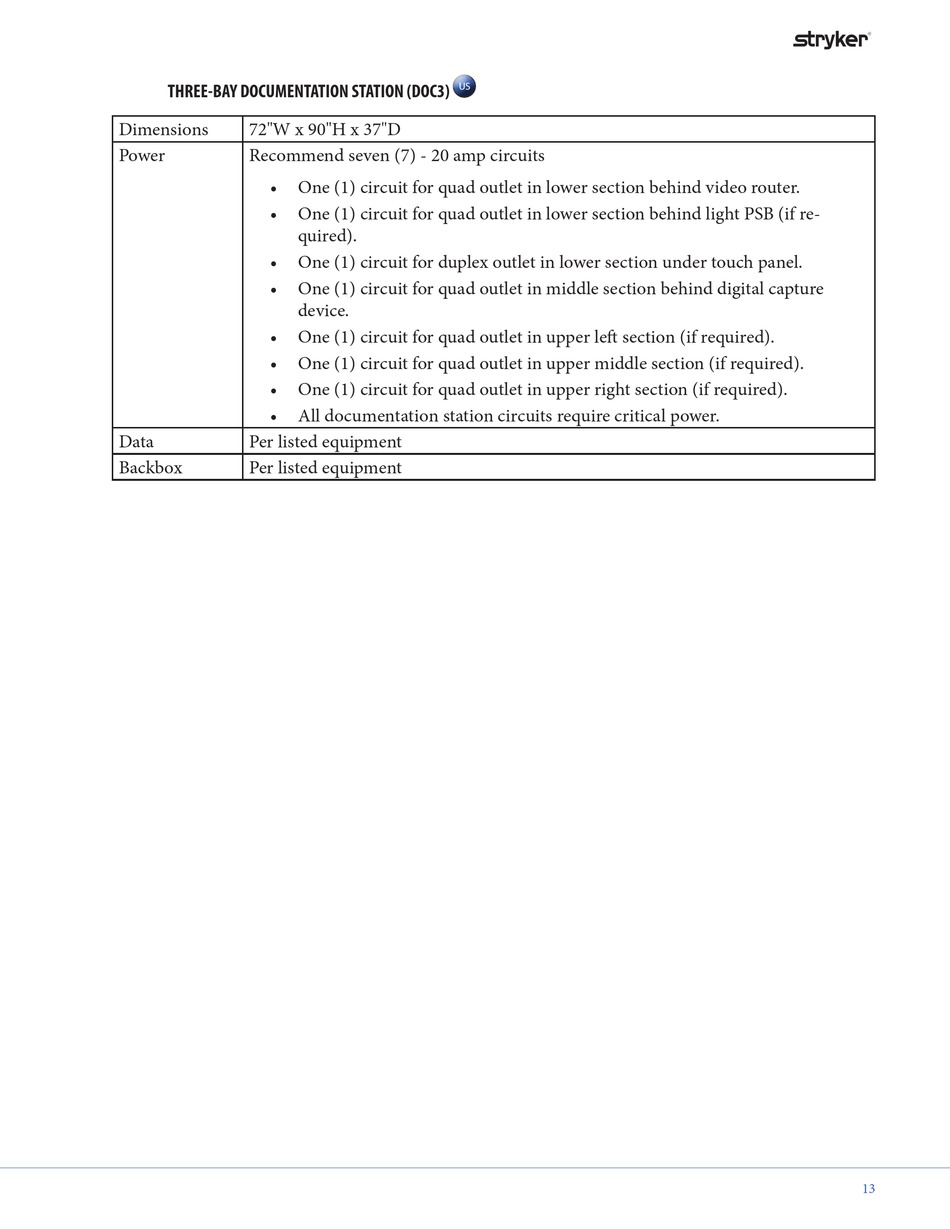

THREE-BAY DOCUMENTATION STATION (DOC3)
Dimensions 72"W x 90"H x 37"D
Power Recommend seven (7) - 20 amp circuits
•
•
•
•
•
•
•
•
Data Per listed equipment
Backbox Per listed equipment
US
One (1) circuit for quad outlet in lower section behind video router.
One (1) circuit for quad outlet in lower section behind light PSB (if re-
quired).
One (1) circuit for duplex outlet in lower section under touch panel.
One (1) circuit for quad outlet in middle section behind digital capture
device.
One (1) circuit for quad outlet in upper left section (if required).
One (1) circuit for quad outlet in upper middle section (if required).
One (1) circuit for quad outlet in upper right section (if required).
All documentation station circuits require critical power.
