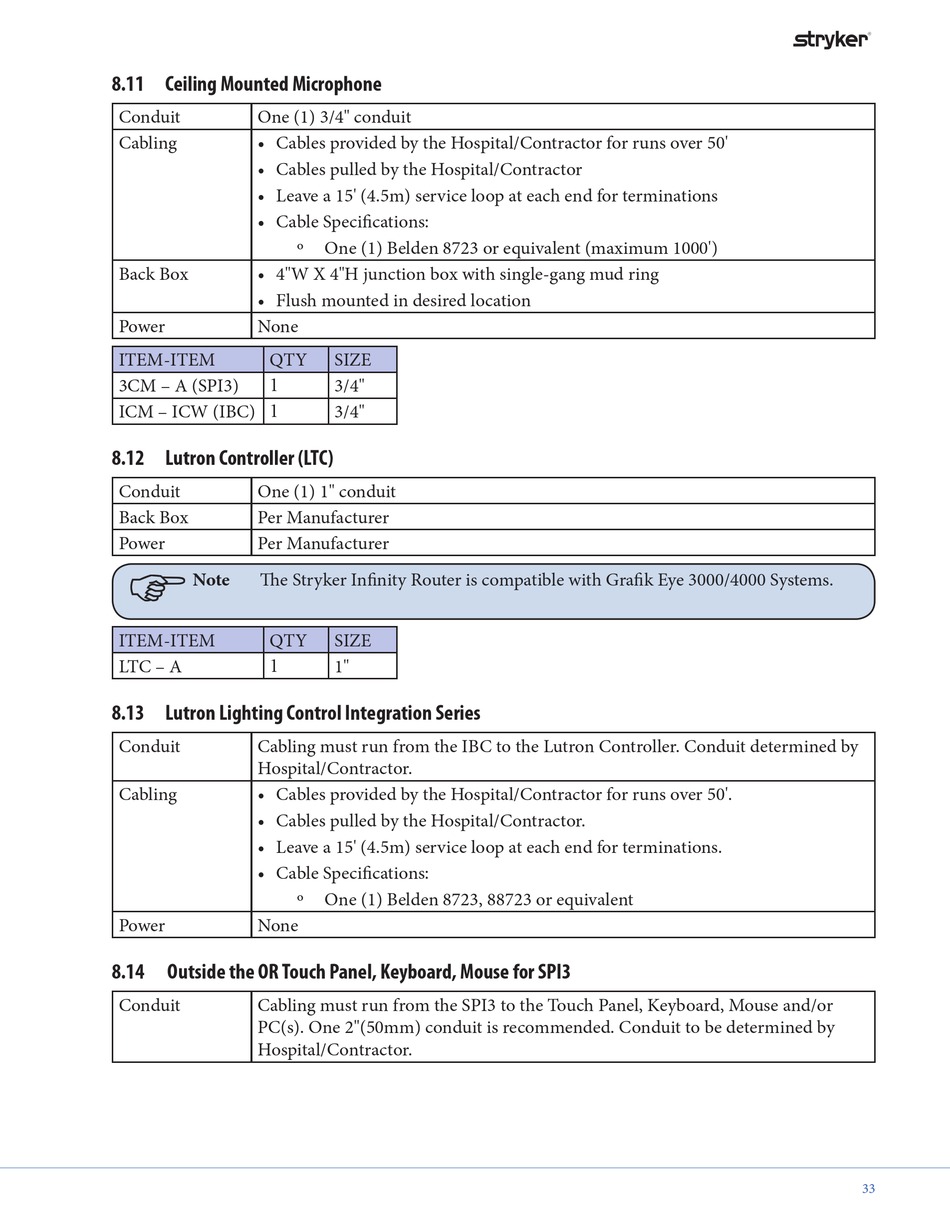

8.11 Ceiling Mounted Microphone

Conduit One (1) 3/4" conduit
Cabling • Cables provided by the Hospital/Contractor for runs over 50'
• Cables pulled by the Hospital/Contractor
• Leave a 15' (4.5m) service loop at each end for terminations
• Cable Specifications:
Back Box • 4"W X 4"H junction box with single-gang mud ring
• Flush mounted in desired location
Power None
ITEM-ITEM QTY
1
3CM – A (SPI3)
ICM – ICW (IBC) 1

8.12 Lutron Controller (LTC)

Conduit One (1) 1" conduit
Back Box Per Manufacturer
Power Per Manufacturer
Note The Stryker Infinity Router is compatible with Grafik Eye 3000/4000 Systems.
ITEM-ITEM QTY
1
LTC – A

8.13 Lutron Lighting Control Integration Series

Conduit Cabling must run from the IBC to the Lutron Controller. Conduit determined by
Hospital/Contractor.
Cabling • Cables provided by the Hospital/Contractor for runs over 50'.
• Cables pulled by the Hospital/Contractor.
• Leave a 15' (4.5m) service loop at each end for terminations.
• Cable Specifications:
Power None
8.14

Outside the OR Touch Panel, Keyboard, Mouse for SPI3

Conduit Cabling must run from the SPI3 to the Touch Panel, Keyboard, Mouse and/or
PC(s). One 2"(50mm) conduit is recommended. Conduit to be determined by
Hospital/Contractor.
One (1) Belden 8723 or equivalent (maximum 1000')
º
SIZE
3/4"
3/4"
SIZE
1"
One (1) Belden 8723, 88723 or equivalent
º
S
33
