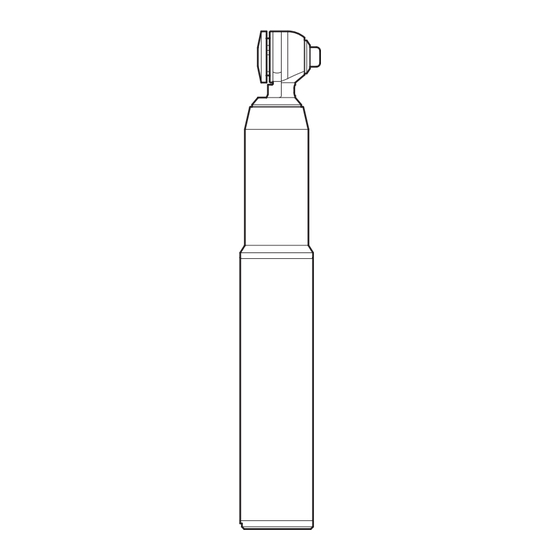

- Page 1 RemB Electric ® Sagittal Saw 6400-034-000 Instructions For Use ENGLISH (EN) 2018-10 6400-034-700 Rev-AA www.stryker.com...
-
Page 2: Indications For Use
• A NOTE supplements and/or clarifies procedural information. For additional information, including safety information, in- service training, or current literature, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. - Page 3 • The healthcare professional performing any procedure is responsible for determining the appropriateness of this equipment and the specific technique for each patient. Stryker, as a manufacturer, does not recommend surgical technique. • ALWAYS allow the equipment to reach the specified operation temperature range before use.
- Page 4 • All cutting accessories are intended for single use only. Reuse significantly increases wear on the handpiece and attachment. NOTE: For a complete list of accessories, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary.
- Page 5 The symbols located on the equipment and/or labeling are defined in this section and in the Symbol Definition Chart. See the Symbol Definition Chart supplied with the equipment. SYMBOL DEFINITION Cord Alignment Mark HANDSWITCH ― Handswitch Alignment Mark General warning sign www.stryker.com...
- Page 6 To Install a Cutting Accessory 1. Insert the blade into the gap in the blade mount. 2. Fully depress the button and seat the blade against the post. Release the button. www.stryker.com...
- Page 7 5. Gently tug the blade to verify the blade is secure. 6. To index the blade mount, pull out and rotate the blade mount until it snaps into the desired location. NOTE: The blade mount will index in 45-degree increments, or eight possible locations. www.stryker.com...
- Page 8 To Remove a Cutting Accessory 1. Fully depress the button. 2. Remove the blade from the handpiece. Final Disassembly 1. Unplug the cord from the console and from the handpiece. 2. Remove cutting accessory as described above. www.stryker.com...
-
Page 9: Troubleshooting
6400-034-700 Rev-AA Troubleshooting WARNING: DO NOT disassemble or service this equipment without the authorization of the manufacturer. NOTE: For service, contact your Stryker sales representative or call Stryker customer service. Outside the US, contact your nearest Stryker subsidiary. PROBLEM CAUSE... -
Page 10: Specifications
All other Cycle Time: 10 seconds on/10 seconds off blade cutting Cycle Frequency: 4 times accessories Rest Between Cycles: 30 minutes Stryker CORE 2, CORE, or TPS Console Power Supply: 40 V (Direct Current) Equipment Type BF Applied Part Type: Less than 124 °F [51 °C] (Maximum surface... - Page 11 6400-034-700 Rev-AA Environmental Storage and Conditions: Operation Transportation Temperature Limitation: Humidity Limitation: Atmospheric Pressure Limitation: www.stryker.com...
- Page 12 ES/DE/FR/IT/NL 6400-034-713 JA/ZH/KO 6400-034-720 SV/DA/FI/PT/NO 6400-034-730 PL/EL 6400-034-750 Stryker Instruments 4100 E. Milham Kalamazoo, Michigan (USA) 49001 1-269-323-7700 1-800-253-3210 2018-10 6400-034-700 Rev-AA www.stryker.com...
