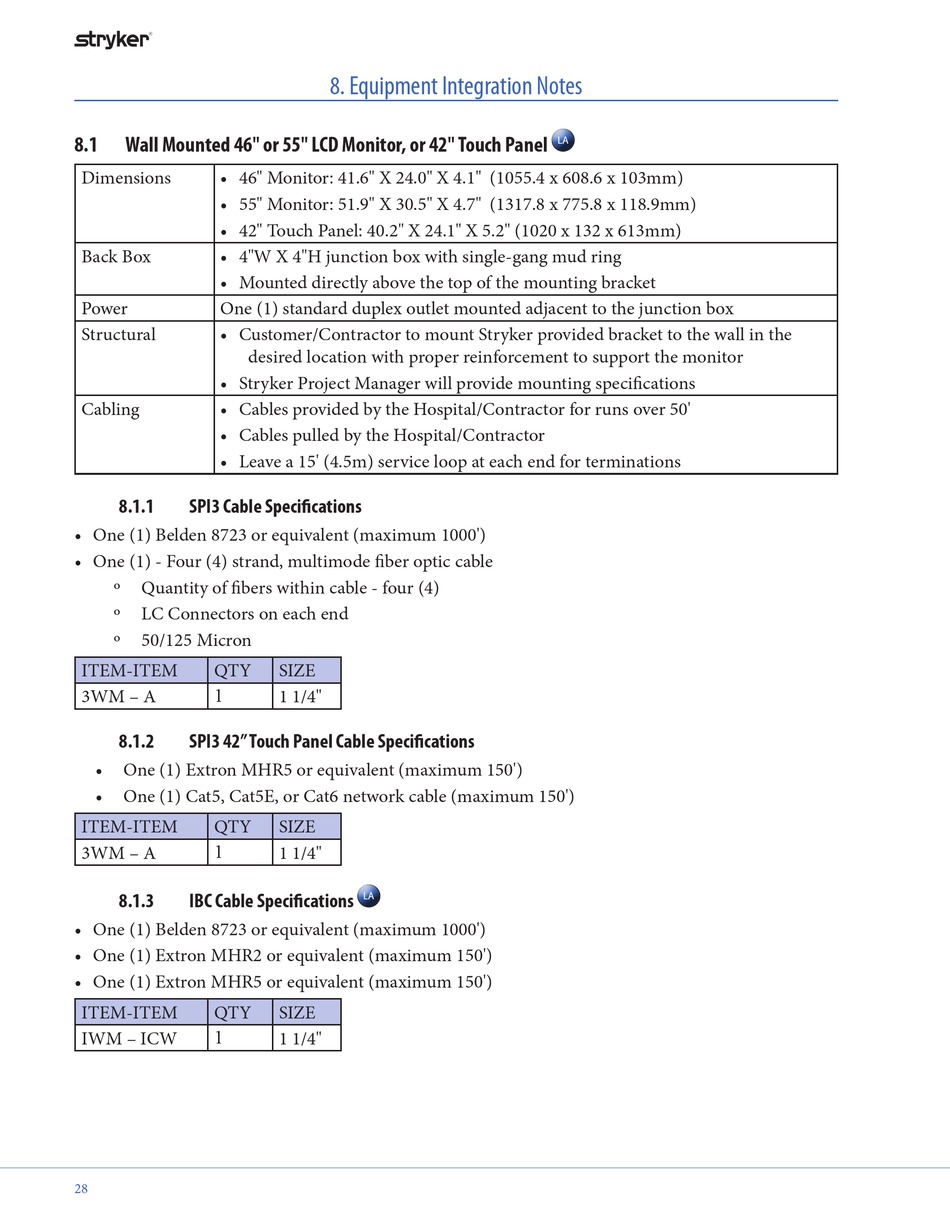

Wall Mounted 46" or 55" LCD Monitor, or 42" Touch Panel

Dimensions • 46" Monitor: 41.6" X 24.0" X 4.1" (1055.4 x 608.6 x 103mm)
• 55" Monitor: 51.9" X 30.5" X 4.7" (1317.8 x 775.8 x 118.9mm)
• 42" Touch Panel: 40.2" X 24.1" X 5.2" (1020 x 132 x 613mm)
Back Box • 4"W X 4"H junction box with single-gang mud ring
• Mounted directly above the top of the mounting bracket
Power One (1) standard duplex outlet mounted adjacent to the junction box
Structural • Customer/Contractor to mount Stryker provided bracket to the wall in the
desired location with proper reinforcement to support the monitor
• Stryker Project Manager will provide mounting specifications
Cabling • Cables provided by the Hospital/Contractor for runs over 50'
• Cables pulled by the Hospital/Contractor
• Leave a 15' (4.5m) service loop at each end for terminations
8.1.1

SPI3 Cable Specifications

• One (1) Belden 8723 or equivalent (maximum 1000')
• One (1) - Four (4) strand, multimode fiber optic cable
Quantity of fibers within cable - four (4)
º
LC Connectors on each end
º
50/125 Micron
º
ITEM-ITEM QTY
1
3WM – A
8.1.2

SPI3 42" Touch Panel Cable Specifications

• One (1) Extron MHR5 or equivalent (maximum 150')
• One (1) Cat5, Cat5E, or Cat6 network cable (maximum 150')
ITEM-ITEM QTY
1
3WM – A
8.1.3

IBC Cable Specifications

• One (1) Belden 8723 or equivalent (maximum 1000')
• One (1) Extron MHR2 or equivalent (maximum 150')
• One (1) Extron MHR5 or equivalent (maximum 150')
ITEM-ITEM QTY
1
IWM – ICW
28
