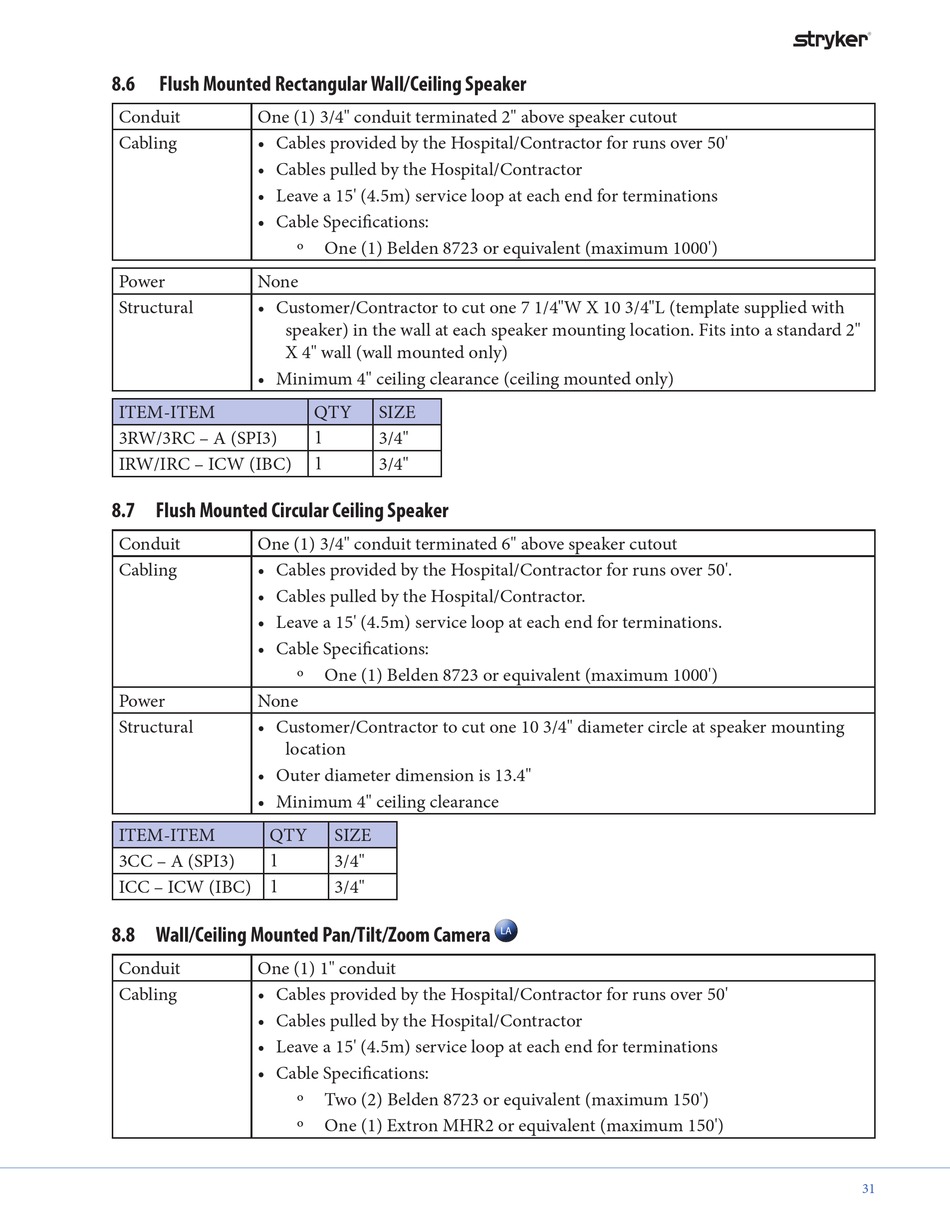

Flush Mounted Rectangular Wall/Ceiling Speaker; Flush Mounted Circular Ceiling Speaker; Wall/Ceiling Mounted Pan/Tilt/Zoom Camera - Stryker Operating Room Information System Preinstallation Manual

8.6

Flush Mounted Rectangular Wall/Ceiling Speaker

Conduit One (1) 3/4" conduit terminated 2" above speaker cutout
Cabling • Cables provided by the Hospital/Contractor for runs over 50'
• Cables pulled by the Hospital/Contractor
• Leave a 15' (4.5m) service loop at each end for terminations
• Cable Specifications:
Power None
Structural • Customer/Contractor to cut one 7 1/4"W X 10 3/4"L (template supplied with
speaker) in the wall at each speaker mounting location. Fits into a standard 2"
X 4" wall (wall mounted only)
• Minimum 4" ceiling clearance (ceiling mounted only)
ITEM-ITEM
3RW/3RC – A (SPI3)
IRW/IRC – ICW (IBC)

8.7 Flush Mounted Circular Ceiling Speaker

Conduit One (1) 3/4" conduit terminated 6" above speaker cutout
Cabling • Cables provided by the Hospital/Contractor for runs over 50'.
• Cables pulled by the Hospital/Contractor.
• Leave a 15' (4.5m) service loop at each end for terminations.
• Cable Specifications:
Power None
Structural • Customer/Contractor to cut one 10 3/4" diameter circle at speaker mounting
location
• Outer diameter dimension is 13.4"
• Minimum 4" ceiling clearance
ITEM-ITEM QTY
1
3CC – A (SPI3)
ICC – ICW (IBC) 1

8.8 Wall/Ceiling Mounted Pan/Tilt/Zoom Camera

Conduit One (1) 1" conduit
Cabling • Cables provided by the Hospital/Contractor for runs over 50'
• Cables pulled by the Hospital/Contractor
• Leave a 15' (4.5m) service loop at each end for terminations
• Cable Specifications:
One (1) Belden 8723 or equivalent (maximum 1000')
º
QTY SIZE
1
3/4"
1
3/4"
One (1) Belden 8723 or equivalent (maximum 1000')
º
SIZE
3/4"
3/4"
Two (2) Belden 8723 or equivalent (maximum 150')
º
One (1) Extron MHR2 or equivalent (maximum 150')
º
LA
S
31
