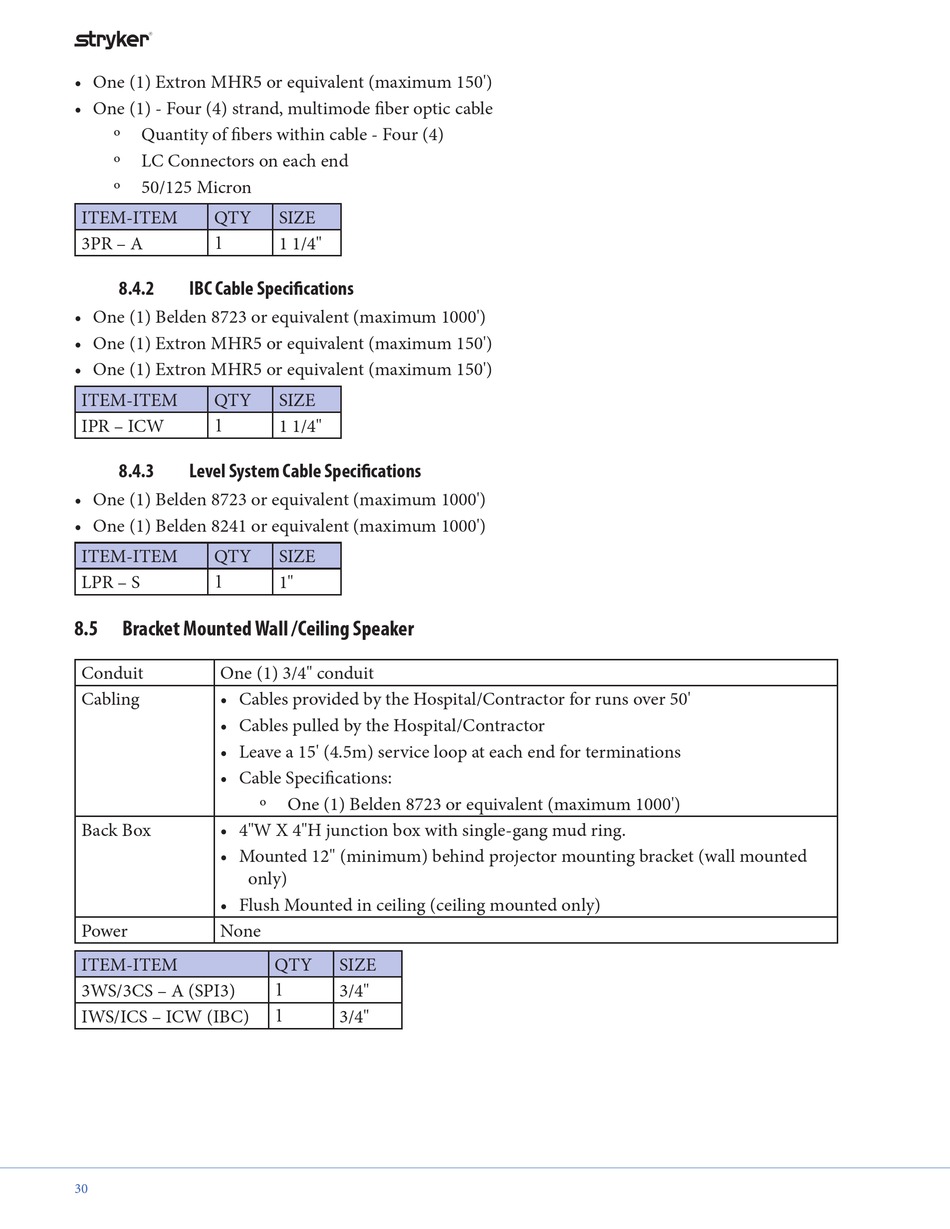

• One (1) Extron MHR5 or equivalent (maximum 150')
• One (1) - Four (4) strand, multimode fiber optic cable
Quantity of fibers within cable - Four (4)
º
LC Connectors on each end
º
50/125 Micron
º
ITEM-ITEM QTY
1
3PR – A
8.4.2

IBC Cable Specifications

• One (1) Belden 8723 or equivalent (maximum 1000')
• One (1) Extron MHR5 or equivalent (maximum 150')
• One (1) Extron MHR5 or equivalent (maximum 150')
ITEM-ITEM QTY
1
IPR – ICW
8.4.3

Level System Cable Specifications

• One (1) Belden 8723 or equivalent (maximum 1000')
• One (1) Belden 8241 or equivalent (maximum 1000')
ITEM-ITEM QTY
1
LPR – S
8.5

Bracket Mounted Wall /Ceiling Speaker

Conduit One (1) 3/4" conduit
Cabling • Cables provided by the Hospital/Contractor for runs over 50'
• Cables pulled by the Hospital/Contractor
• Leave a 15' (4.5m) service loop at each end for terminations
• Cable Specifications:
Back Box • 4"W X 4"H junction box with single-gang mud ring.
• Mounted 12" (minimum) behind projector mounting bracket (wall mounted
only)
• Flush Mounted in ceiling (ceiling mounted only)
Power None
ITEM-ITEM
3WS/3CS – A (SPI3)
IWS/ICS – ICW (IBC)
30
SIZE
1 1/4"
SIZE
1 1/4"
SIZE
1"
One (1) Belden 8723 or equivalent (maximum 1000')
º
QTY SIZE
1
3/4"
1
3/4"
