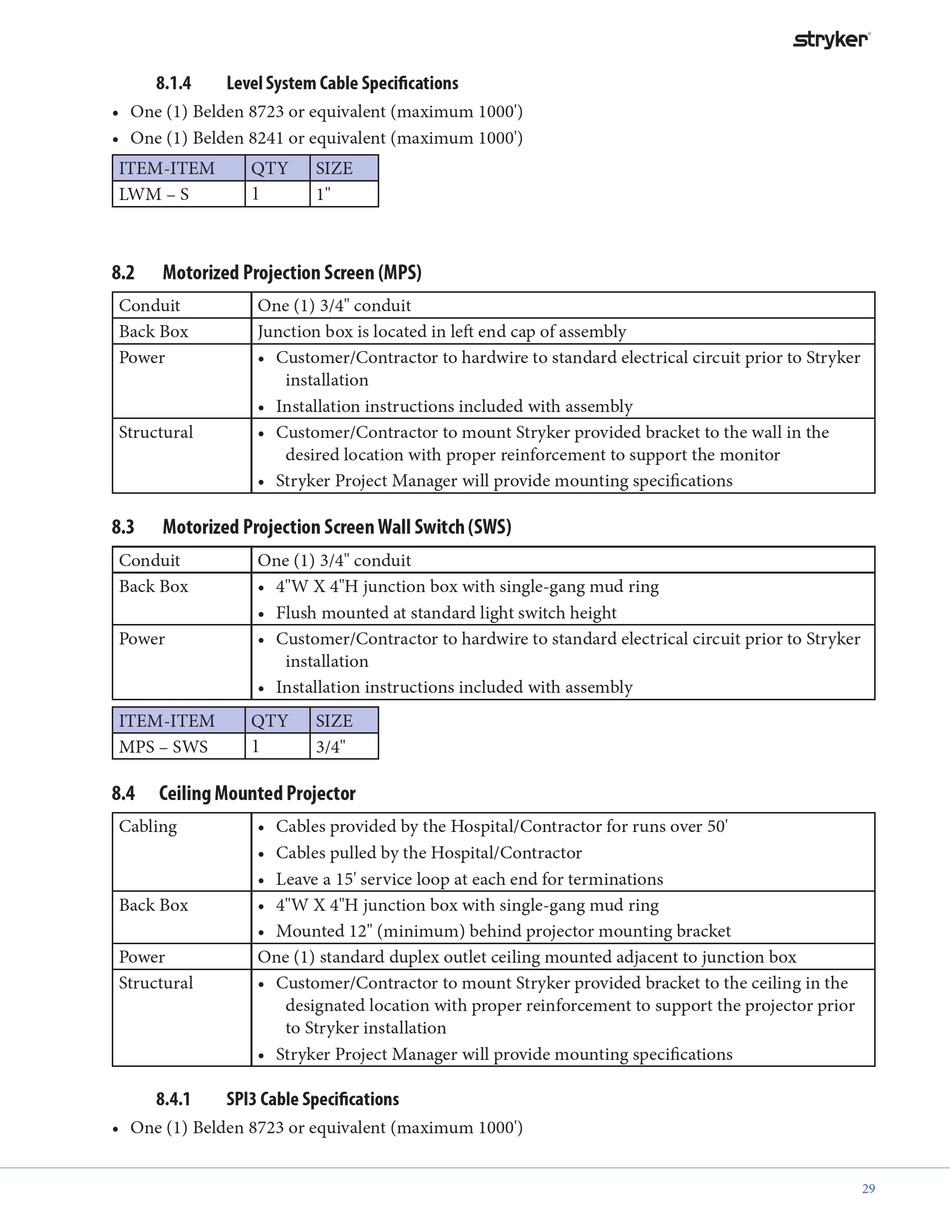

8.1.4

Level System Cable Specifications

• One (1) Belden 8723 or equivalent (maximum 1000')
• One (1) Belden 8241 or equivalent (maximum 1000')
ITEM-ITEM QTY
1
LWM – S
8.2

Motorized Projection Screen (MPS)

Conduit One (1) 3/4" conduit
Back Box Junction box is located in left end cap of assembly
Power • Customer/Contractor to hardwire to standard electrical circuit prior to Stryker
installation
• Installation instructions included with assembly
Structural • Customer/Contractor to mount Stryker provided bracket to the wall in the
desired location with proper reinforcement to support the monitor
• Stryker Project Manager will provide mounting specifications
8.3

Motorized Projection Screen Wall Switch (SWS)

Conduit One (1) 3/4" conduit
Back Box • 4"W X 4"H junction box with single-gang mud ring
• Flush mounted at standard light switch height
Power • Customer/Contractor to hardwire to standard electrical circuit prior to Stryker
installation
• Installation instructions included with assembly
ITEM-ITEM QTY
1
MPS – SWS
8.4

Ceiling Mounted Projector

Cabling • Cables provided by the Hospital/Contractor for runs over 50'
• Cables pulled by the Hospital/Contractor
• Leave a 15' service loop at each end for terminations
Back Box • 4"W X 4"H junction box with single-gang mud ring
• Mounted 12" (minimum) behind projector mounting bracket
Power One (1) standard duplex outlet ceiling mounted adjacent to junction box
Structural • Customer/Contractor to mount Stryker provided bracket to the ceiling in the
designated location with proper reinforcement to support the projector prior
to Stryker installation
• Stryker Project Manager will provide mounting specifications
8.4.1

SPI3 Cable Specifications

• One (1) Belden 8723 or equivalent (maximum 1000')
SIZE
1"
SIZE
3/4"
S
