5.2

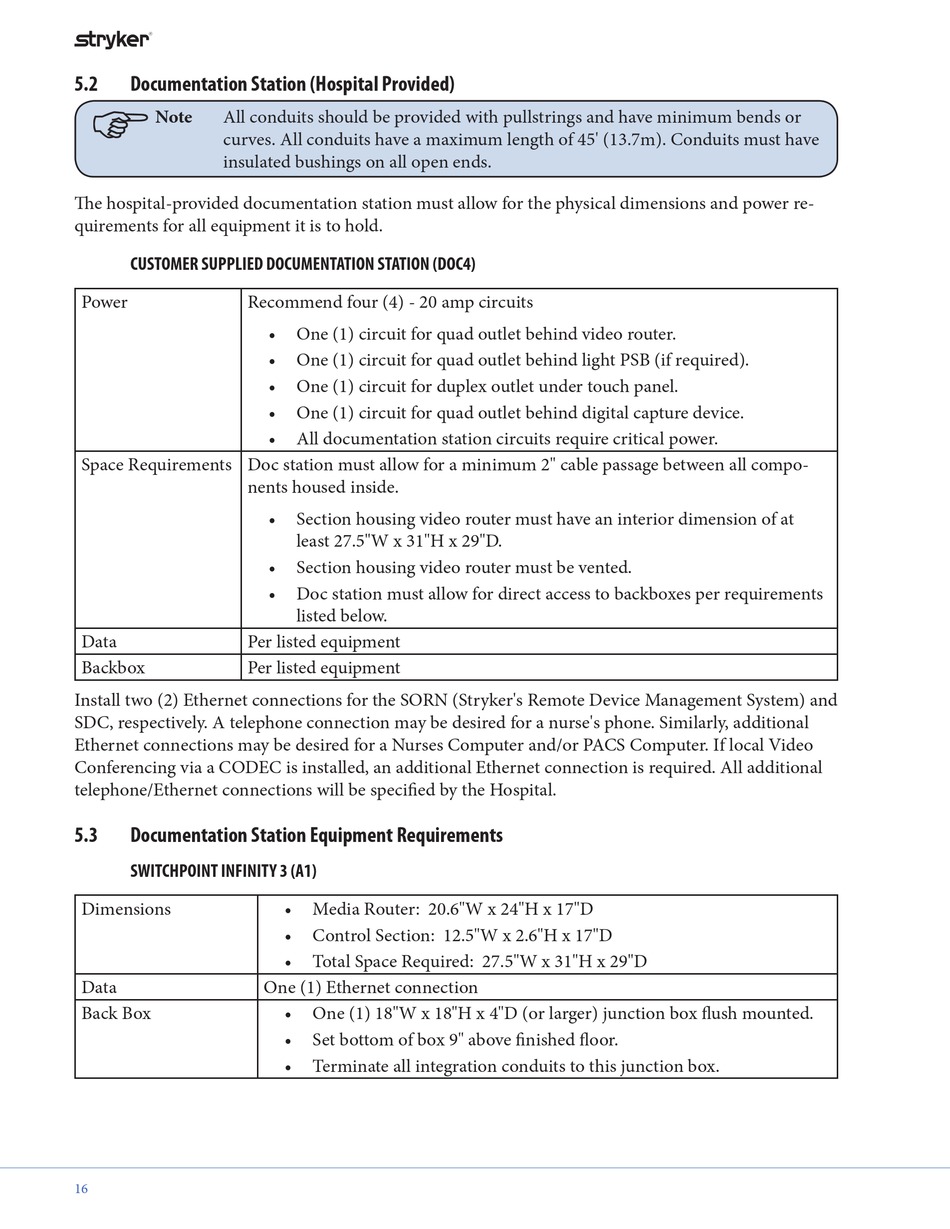

Documentation Station (Hospital Provided)

Note
All conduits should be provided with pullstrings and have minimum bends or
curves. All conduits have a maximum length of 45' (13.7m). Conduits must have
insulated bushings on all open ends.
The hospital-provided documentation station must allow for the physical dimensions and power re-
quirements for all equipment it is to hold.
CUSTOMER SUPPLIED DOCUMENTATION STATION (DOC4)
Power Recommend four (4) - 20 amp circuits
Space Requirements Doc station must allow for a minimum 2" cable passage between all compo-
nents housed inside.
Data Per listed equipment
Backbox Per listed equipment
Install two (2) Ethernet connections for the SORN (Stryker's Remote Device Management System) and
SDC, respectively. A telephone connection may be desired for a nurse's phone. Similarly, additional
Ethernet connections may be desired for a Nurses Computer and/or PACS Computer. If local Video
Conferencing via a CODEC is installed, an additional Ethernet connection is required. All additional
telephone/Ethernet connections will be specified by the Hospital.
5.3

Documentation Station Equipment Requirements

SWITCHPOINT INFINITY 3 (A1)
Dimensions
Data
Back Box
16
• One (1) circuit for quad outlet behind video router.
• One (1) circuit for quad outlet behind light PSB (if required).
• One (1) circuit for duplex outlet under touch panel.
• One (1) circuit for quad outlet behind digital capture device.
• All documentation station circuits require critical power.
• Section housing video router must have an interior dimension of at
least 27.5"W x 31"H x 29"D.
• Section housing video router must be vented.
• Doc station must allow for direct access to backboxes per requirements
listed below.
• Media Router: 20.6"W x 24"H x 17"D
• Control Section: 12.5"W x 2.6"H x 17"D
• Total Space Required: 27.5"W x 31"H x 29"D
One (1) Ethernet connection
• One (1) 18"W x 18"H x 4"D (or larger) junction box flush mounted.
• Set bottom of box 9" above finished floor.
• Terminate all integration conduits to this junction box.
