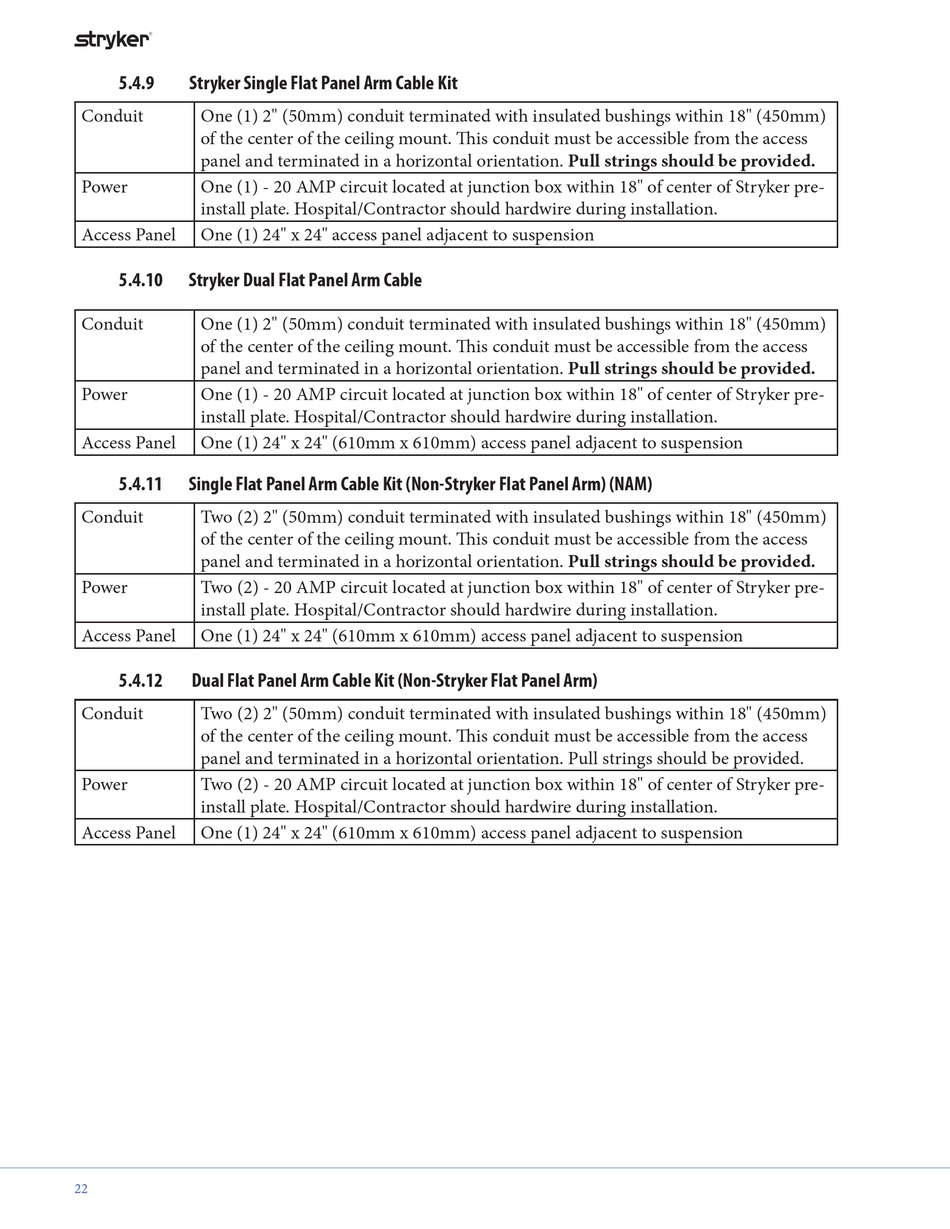

5.4.9

Stryker Single Flat Panel Arm Cable Kit

Conduit One (1) 2" (50mm) conduit terminated with insulated bushings within 18" (450mm)
of the center of the ceiling mount. This conduit must be accessible from the access
panel and terminated in a horizontal orientation. Pull strings should be provided.
Power One (1) - 20 AMP circuit located at junction box within 18" of center of Stryker pre-
install plate. Hospital/Contractor should hardwire during installation.
Access Panel One (1) 24" x 24" access panel adjacent to suspension
5.4.10

Stryker Dual Flat Panel Arm Cable

Conduit One (1) 2" (50mm) conduit terminated with insulated bushings within 18" (450mm)
of the center of the ceiling mount. This conduit must be accessible from the access
panel and terminated in a horizontal orientation. Pull strings should be provided.
Power One (1) - 20 AMP circuit located at junction box within 18" of center of Stryker pre-
install plate. Hospital/Contractor should hardwire during installation.
Access Panel One (1) 24" x 24" (610mm x 610mm) access panel adjacent to suspension
5.4.11

Single Flat Panel Arm Cable Kit (Non-Stryker Flat Panel Arm) (NAM)

Conduit Two (2) 2" (50mm) conduit terminated with insulated bushings within 18" (450mm)
of the center of the ceiling mount. This conduit must be accessible from the access
panel and terminated in a horizontal orientation. Pull strings should be provided.
Power Two (2) - 20 AMP circuit located at junction box within 18" of center of Stryker pre-
install plate. Hospital/Contractor should hardwire during installation.
Access Panel One (1) 24" x 24" (610mm x 610mm) access panel adjacent to suspension
5.4.12

Dual Flat Panel Arm Cable Kit (Non-Stryker Flat Panel Arm)

Conduit Two (2) 2" (50mm) conduit terminated with insulated bushings within 18" (450mm)
of the center of the ceiling mount. This conduit must be accessible from the access
panel and terminated in a horizontal orientation. Pull strings should be provided.
Power Two (2) - 20 AMP circuit located at junction box within 18" of center of Stryker pre-
install plate. Hospital/Contractor should hardwire during installation.
Access Panel One (1) 24" x 24" (610mm x 610mm) access panel adjacent to suspension
