Installation/Fitting
5 5

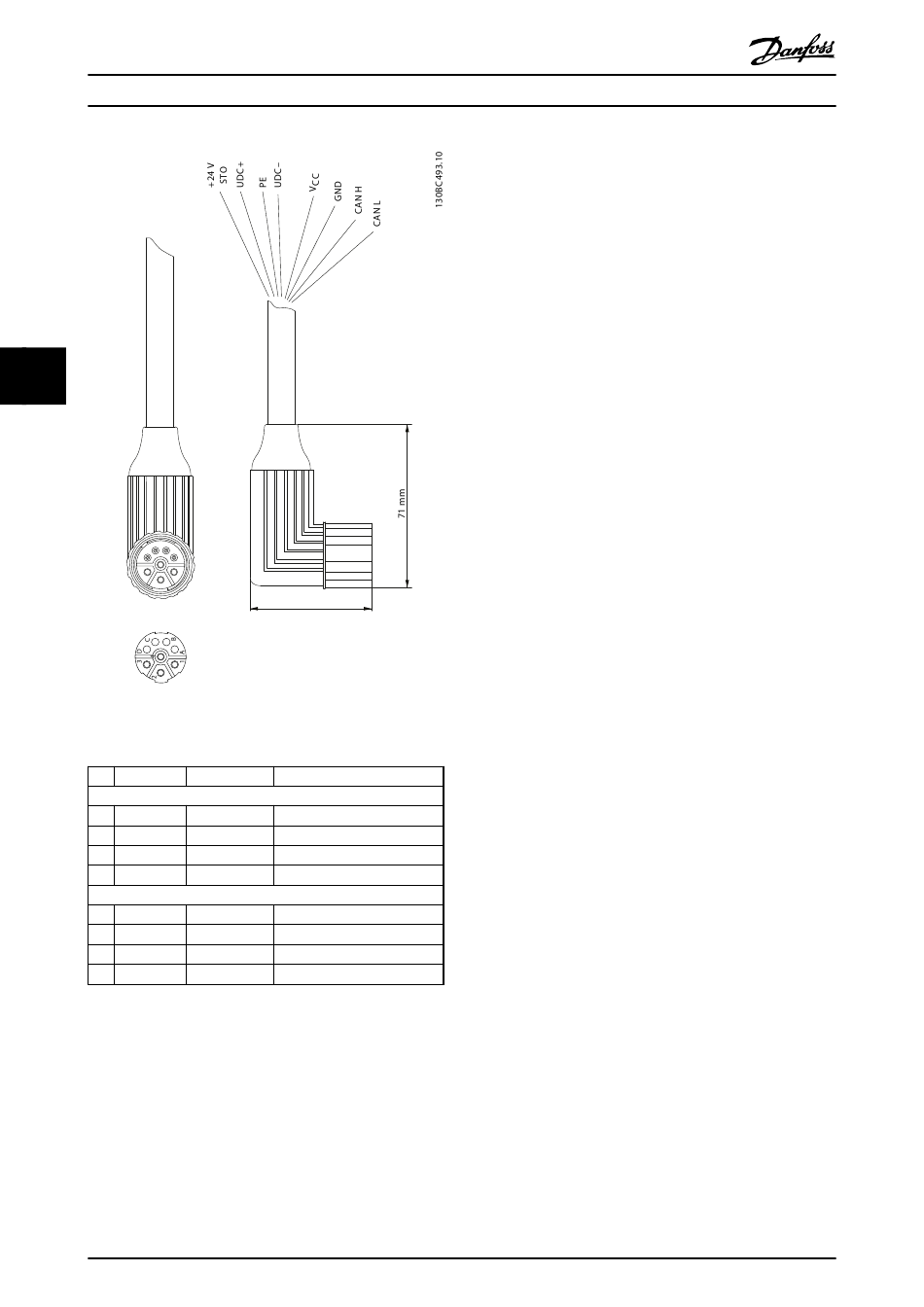

Illustration 5.5 Feed Cable Wires
Pin Wire
Power
1 –U
DC
2 PE
3 +U
DC
4 +24 V STO
CAN
A GND
B CAN_Low
C CAN_High
D V
CC
Table 5.5 Wire Assignment for Feed Cable
CAUTION
Never connect or disconnect the hybrid cables to or from
the servomotors when the supply voltage is present. Doing
so will damage the electronic circuitry. Observe the
discharge time for the DC link capacitors.
32
VLT
52 mm
Colour Description
1-Black Input (DC Ground)
Green/yellow Protective Earth
2-Black Input (300 V DC)
3-Black 24 V DC Safety Input
Black CAN Power Input (Ground)
White CAN Low Signal Input
Blue CAN High Signal Input
Red CAN Power Input (+5 V)
MG75G102 - VLT
®
ISD Connection Box Operating Instructions
NOTE
Do not forcefully connect or fit the connectors. Incorrect
connection will cause permanent damage to the
connector.
1. Connect the wires to the DC output terminal (X2
& X3) as described in 4.4.2.4 DC Output Terminals
(X2 & X3).
2. Secure the hybrid cable using the strain relief
clamp on the underside of the connection box.
®
