4.4.1.3 CAN Connectors (X11-X15/X22-X25)

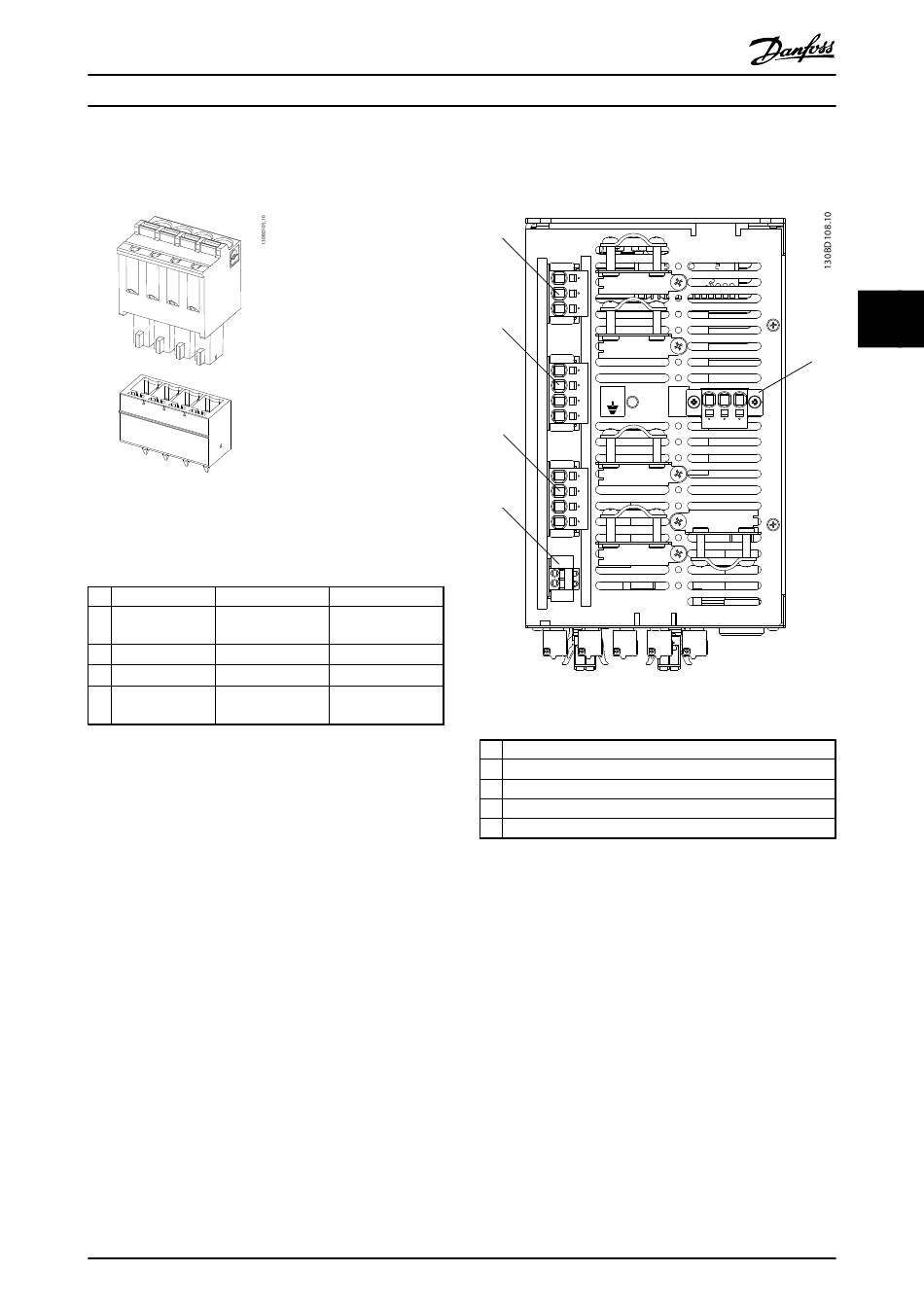

Illustration 4.8 CAN Housing and Plug
The input and output pin assignment of the CAN plug
connectors is the same.
Pin Signal Description
1 CAN_GND CAN Power Supply
(Ground)
2 CAN_L CAN Low Signal
3 CAN_H CAN High Signal
4 CAN_V CAN Power Supply
cc
(+5 V)
Table 4.6 Connector Pin Assignment
®
VLT ISD Connection Box Operating Instructions
4.4.2 Connections on the Underside of the
1
5
4
3
Cross-Section
0.5 mm 2
2
0.5 mm
2
0.5 mm
Illustration 4.9 Connections on the Underside
0.5 mm 2
1
2
3
4
5
Table 4.7 Legend to Illustration 4.9
®
MG75G102 - VLT is a registered Danfoss trademark
Connection Box
PE
X5
DC Input terminal X1
Brake connector X5
24 V DC Power supply X4
DC Output terminal X3
DC Output terminal X2
4 4
2
21
