5.6.4.1 Overview of CAN Plugs

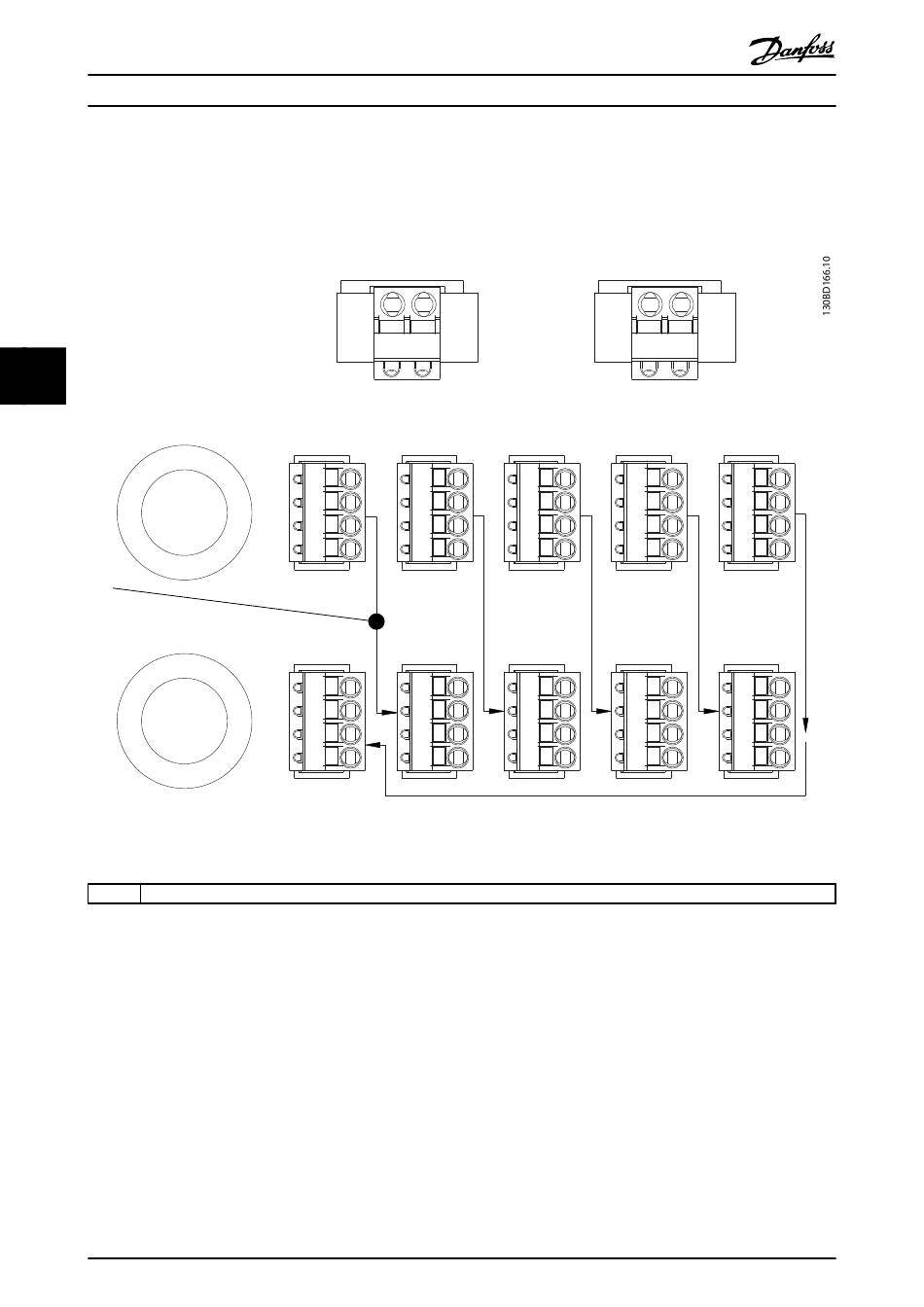

Illustration 5.2 shows the CAN plugs on the front of the connection box. The lines represent the internal connections
between the CAN plugs.
5 5
Fuse L I
1
Fuse L II
Illustration 5.2 Overview of CAN Plugs
1 Symbolises the connection box as a node in the CAN network.
Table 5.1 Legend to Illustration 5.2
28
®
VLT ISD Connection Box Operating Instructions
Safety I
CAN 1.In CAN 2.In
X11 X12
CAN 1.Out CAN 2.Out
X21 X22
®
MG75G102 - VLT is a registered Danfoss trademark
Safety II
CAN 3.In CAN 4.In
X13 X14
CAN 3.Out CAN 4.Out
X23 X24
CAN 5.In
X15
CAN 5.Out
X25
