MAIN PAGE
8 Messures Input (phase to neutral)
9 Messures Output (phase to phase)
10 Battery system
You are able to scroll throught the pages with the ARROW keys.
INDICATION
To enter into the main menue press ENTER. The main pages are listed below:
- STATUS UPS: give real time informations of Status of UPS
- SETUP UPS: possible to set up basic configurations (some only available through SERVICE-MODE);
- POWERMODULE: analyse the status of each module in real time;
- EVENTS: give access to the event log of UPS
- MEASURES: give access to a number of possible measurements inside UPS.
- LOG OUT: if you entered by password you log out and your visit will be closed.
You have access to the sub menues by pressing the ENTER key at a selcted item. The following grid give informations to
the available sub menues.
Tri Power X33 Mod HP Manual | Rev 1.20 | © Alpha Technologies GmbH 2013
Tri Power X33 Mod HP
DESCRIPTION

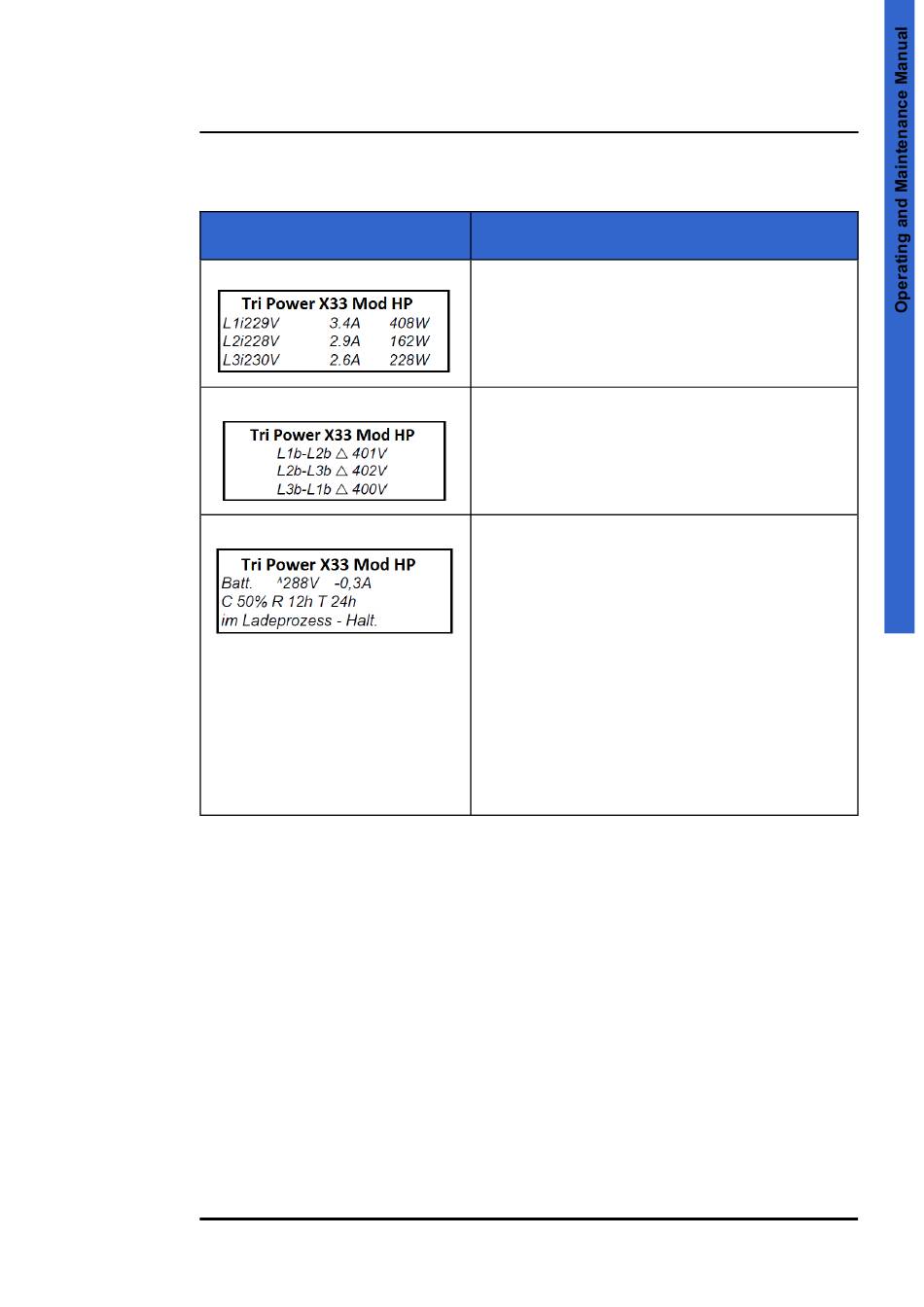

1. line: Status UPS;
2. line: Phase L1 Input: voltage, current (True RMS), active power;
3. line: Phase L2 Input: voltage, current (True RMS), active power;
3. line: Phase L3 Input: voltage, current (True RMS), active power.
1. line: Status UPS;
2. line: Phase L1 - L2 Output: voltage, current (True RMS), active po-
wer;
3. line: Phase L2- L3 Output: voltage, current (True RMS), active po-
wer;
3. line: Phase L3 - L1 Output: voltage, current (True RMS), active po-
wer.
1. line: Status UPS;
2. line: Voltage and current (negative - charging, positive - dischar-
ging);
3. line: Battery capacity, remaining autonomy, autonomy at 100%
battery capacity;
4. line: Status battery system
- Battery system standby (no charging)
- battery discharging
- end of autonomy
- Boost charge (charging phase 1)
- Charging (phase 2, current decreasing)
- Float charge
- Battery teste
- Equalization charge
- Battery broken
- max. charging time override
