Power
Power

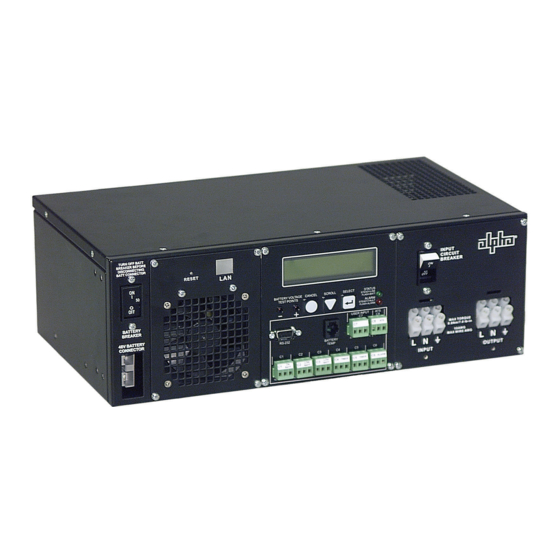

Novus FXM 650, 1100, 2000
Novus FXM 650, 1100, 2000
Total Power Solutions by Alpha Technologies
> Total Power Solutions by Alpha Technologies
Uninterruptible Power Supplies
Operator's Manual
Rev 0408

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Novus FXM 650 and is the answer not in the manual?

Questions and answers

Related Manuals for Alpha Technologies Novus FXM 650

Summary of Contents for Alpha Technologies Novus FXM 650

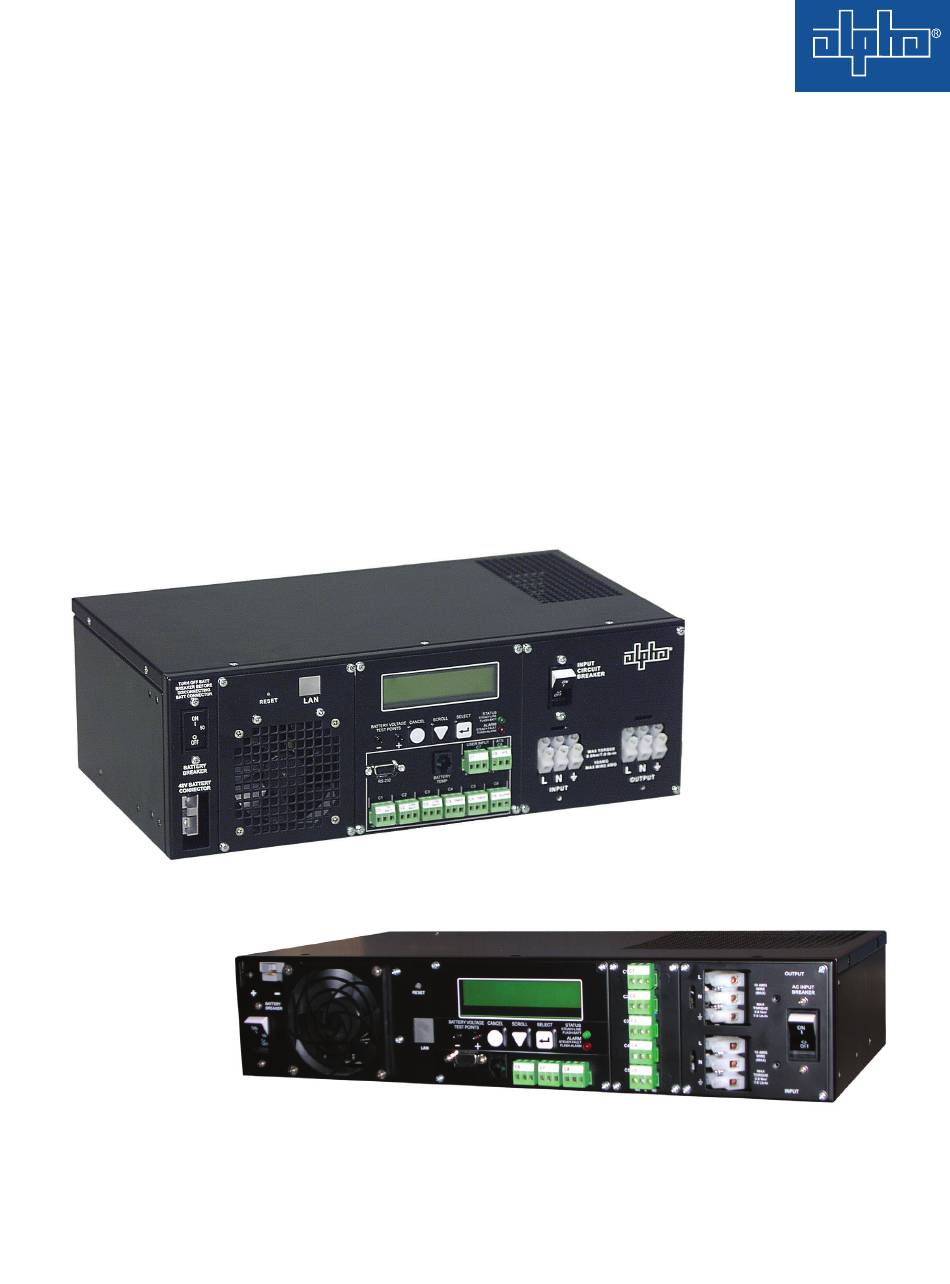

  • Page 1 Power Power Novus FXM 650, 1100, 2000 Novus FXM 650, 1100, 2000 Total Power Solutions by Alpha Technologies > Total Power Solutions by Alpha Technologies Uninterruptible Power Supplies Operator’s Manual Rev 0408...
  • Page 2 3. Overview Introduction The Novus FXM is available in 3 models – FXM 650, FXM 1100 and FXM 2000. The FXM 650 and the FXM 1100/2000 look different, but all of the front panel connectors and circuit breakers operate in the same way.

  • Page 3: Front Panel Description

    FXM UPS Operator's Manual Front Panel Description Figure 3 .3 - Front Panel Description Battery Breaker This circuit breaker provides overcurrent protection and is an on/off switch for battery power. It must be on for proper FXM operation. Battery Connector This connects the external batteries to the FXM.
  • Page 4 Overview FXM1100/2000 FXM650 Figure 3 .4 - Front Panel Description (cont’d) LCD Control Panel This panel and the cancel, scroll and select buttons below it let you monitor and control the FXM. More information is given in “Operation” on page 33. Battery Voltage Test Points These let you measure the battery voltage.
  • Page 5 FXM UPS Operator's Manual to the FXM for it to monitor the battery temperature. The charging voltage is temperature dependant and the FXM’s microprocessor adjusts it for optimum charging. • The sensor MUST be attached to the FXM for normal operation.
  • Page 6 These optically isolated inputs let you attach an external switch panel for remote control of the FXM or have the FXM control Alpha Technologies’s optional Automatic Transfer Switch (ATS). • User Input (C7): This relay has 3 contacts to control the FXM (Figure 3.7).
  • Page 7 (FXM 650-48, 1100, 2000) or 24 VDC (FXM 650-24) from the external batteries to this dry contact. If the optional Alpha Technologies’s Automatic Transfer Switch (ATS) is connected, it will cause the ATS to switch the load from line power to the FXM’s battery backup power.
  • Page 8 Overview Figure 3 .9 - Front Panel Description (cont’d) Input Circuit Breaker This circuit breaker is an on/off switch for line power into the FXM and provides input protection. It must be on for proper FXM operation. Input Terminal Block This terminal block is the FXM’s AC line power input.

  • Page 9: Wiring The External Batteries

    FXM UPS Operator's Manual Wiring the External Batteries WARNING The batteries must be installed by qualified personnel trained in the safe use of high-energy power supplies and their batteries.. Refer to Product Safety Information on page 5. Notes: Use new batteries when installing a new unit. Verify they are all the same battery type with identical date codes.
  • Page 10 Installation Caution: Torque the battery terminals according to the manufacturer’s specifications as given on the name plate or data sheet. Wire the batteries as shown in Figure 3.11. If used, install the in- line fuse as shown. Verify battery connector polarity and DC voltage with a DC volt- meter.

  • Page 11: Wiring The Novus Fxm

    FXM UPS Operator's Manual Wiring the Novus FXM WARNING Make sure the line power is off. Turn off all input and output circuit breakers on the FXM before making any electrical connections. WARNING If stranded wires are used to connect the input and output terminal blocks, ferules or equivalent crimping terminals must be used.

  • Page 12: Ats/Gts Option

    Installation ATS/GTS Option The ATS (automatic transfer switch) and the GTS (generator transfer switch) are two separate optional add-on switching units for the FXM family (FXM 650, 1100 and 2000). The ATS provides power and/or bypass capacity (automatic or manual) so the operator may discon- nect the FXM family of products from line power for easy removal and servicing.

  • Page 13: Operation

    7. Operation The following sections describe the operation of the Novus FXM. ■ Operating the control panel on page 34. ■ Turning the FXM On and Off on page 37. ■ Replacing the batteries on page 83. ■ Operating the Novus FXM on page 40.

  • Page 14: Operating The Control Panel

    FXM UPS Operator's Manual Operating the Control Panel The LCD control panel provides “at a glance” monitoring. This panel, when used along with the CANCEL, SCROLL and SELECT buttons below it, lets you program, make measurements and troubleshoot the FXM. The layout is shown in Figure 7.1 below. The FXM is monitored and controlled with a series of menus and submenus.
  • Page 15 Operation UPS Operating Modes LCD Shows Description SHUTDOWN The FXM’s inverter is turned off. Line power is disconnected from the load. LINE The FXM is turned on. Line power is provided to the load. BOOST1 OR The FXM’s transformer is raising line voltage without using the BOOST2 batteries.
  • Page 16 FXM UPS Operator's Manual Logo Screen   Starting at the Logo Press the SCROLL button to move between the menus. The (Figure 7 . 1 ) Screen, press the SELECT SCROLL button moves only in one direction, so if you overshoot, you button to go down one level.

  • Page 17: Turning The Novus Fxm On And Off

    Operation Turning the Novus FXM On and Off Under normal operation, the FXM is always powered ON to supply uninterruptible power to the load. By turning off the FXM, the power supply to the load will also be disconnected. If for any reason you need to turn off the FXM while maintaining power to your critical load, make sure that you have a plan in place to provide an alternate source of power.
  • Page 18 FXM UPS Operator's Manual Switching the FXM from Line mode to Inverter mode You can also force the FXM to operate in the inverter mode by manu- ally turning off the input circuit breaker. Doing so will effectively dis- connect any line power to the FXM, simulating a power outage which triggers the FXM to swtich to the inverter mode of operation.

  • Page 19: Operating The Novus Fxm

    FXM UPS Operator's Manual Operating the Novus FXM The control menu (Figure 7.4) lets you operate the FXM or program it to suit your operating conditions. You can also use the Novus User Software to make these adjustments (See “Novus User Software” on page 56).
  • Page 20 QUALITY: The buck and boost modes are turned off, the input voltage is the FXM’s output voltage. If you are connecting an Alpha Technologies Automatic Transfer Switch (ATS) to traffic intersection equipment, then you MUST switch the FXM to quality since most traffic equipment cannot handle the high voltage output of the FXM when it is in AVR mode.
