5.3.6 1-PHASEN-Input, 3-PHASE-Output 120°

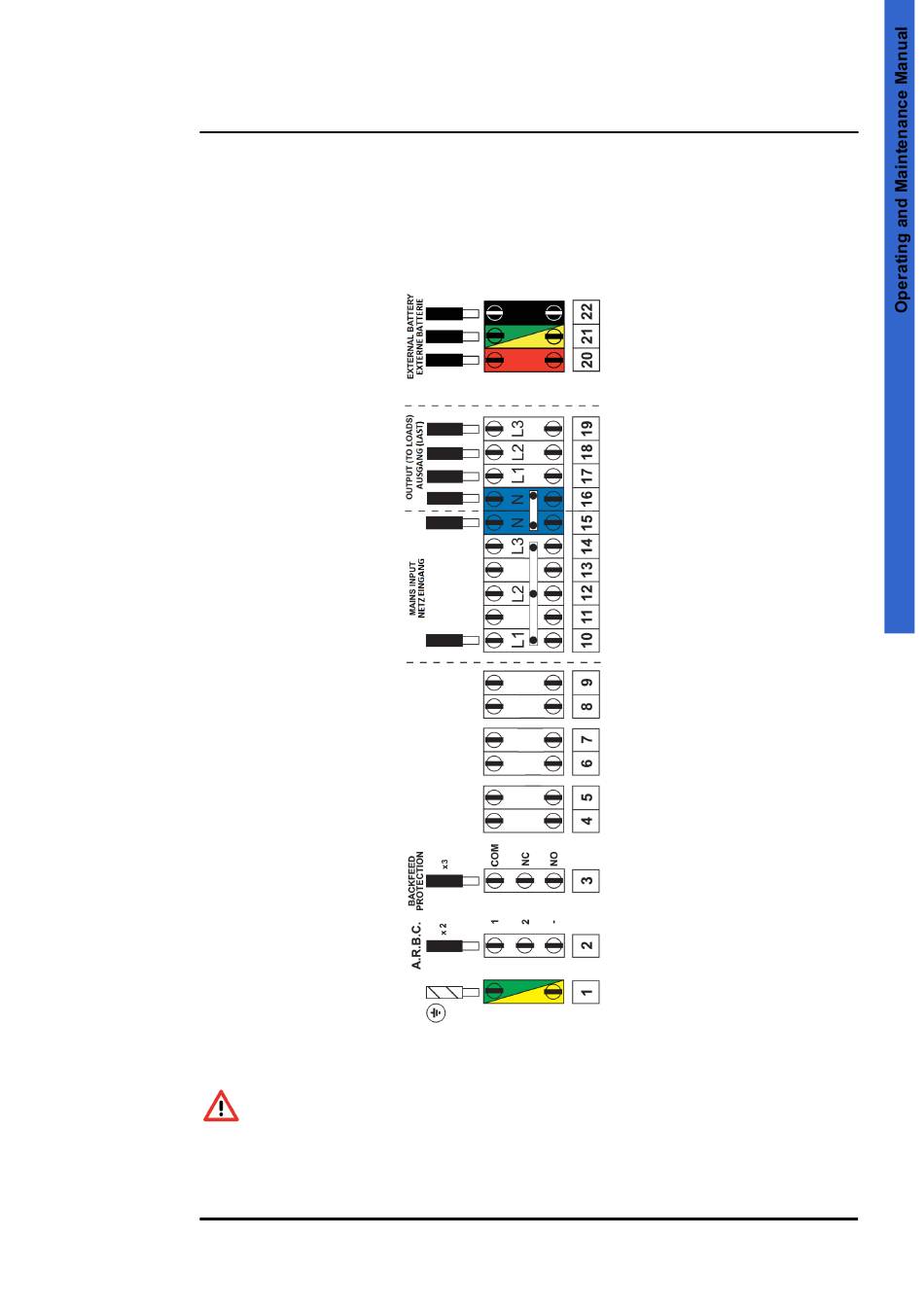

For this type of connection, besides the wiring shown in the following figure, the software has to be configured via the
instrument panel as illustrated in paragraph 6.4 STARTING PROCEDURE.
ATTENTION
In the Tri Power X33 Mod HP models 10, 15 and 20, in the case of a single-phase input and three-phase output
configuration, the manual by-pass S1 MUST NOT be activated for any reason whatsoever. To this end the relative
switch must be locked in the 'OFF' position. For greater safety it is possible to deactivate the by-pass completely by
cutting the brown cable that connects the relative by-pass switch S1 to the MAINS INPUT fuse carrier isolating
switch, isolating it. To the contrary, the cable connecting terminal 8 to the phase fuse carrier isolating switch MUST
remain connected
Tri Power X33 Mod HP Manual | Rev 1.20 | © Alpha Technologies GmbH 2013
Tri Power X33 Mod HP
TRI POWER X33 MOD HP
10/15/20
43
