5.3.2 3-PHASE-Input, 3-PHASE-Output 40/45/60kVA

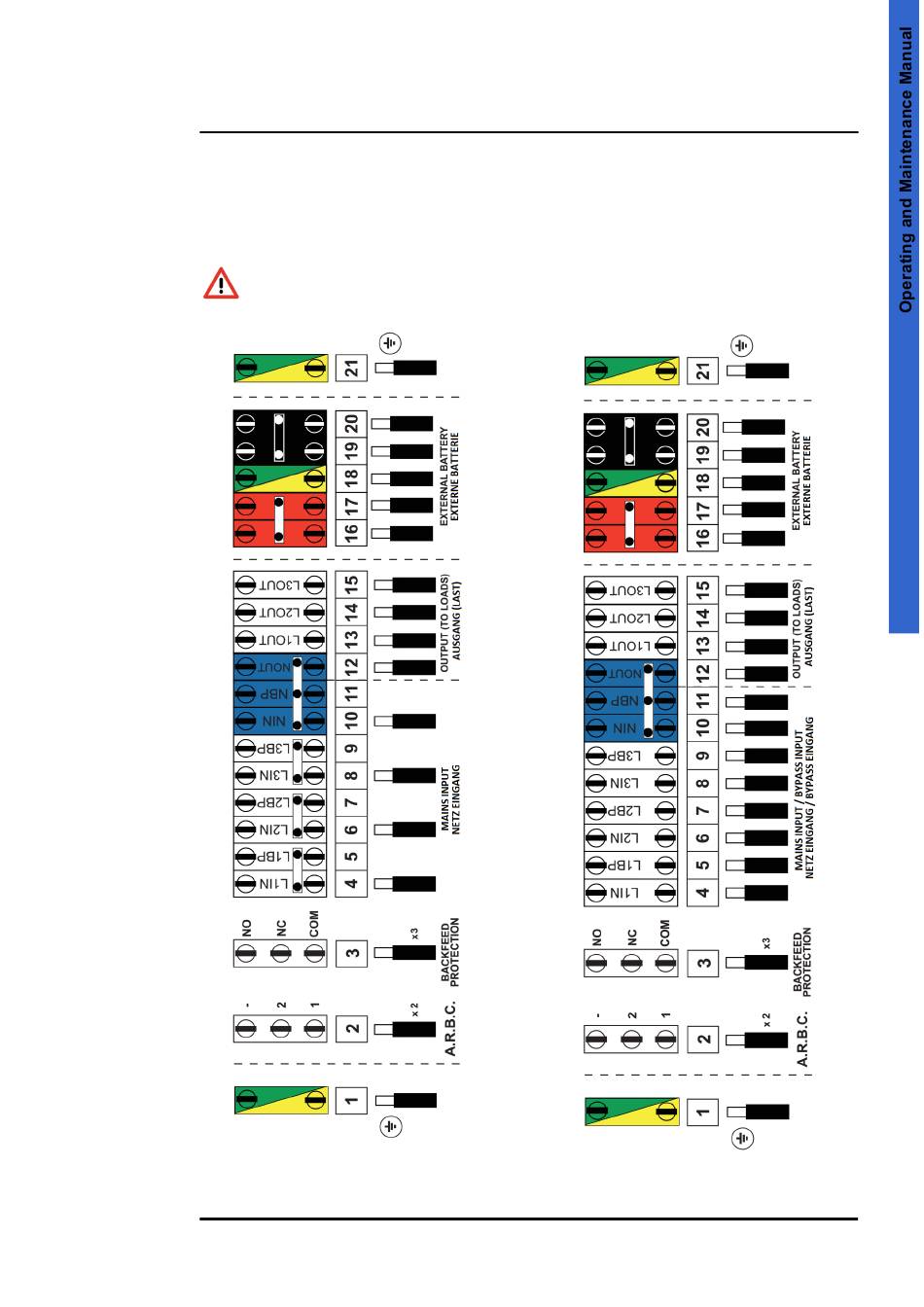

UPS Tri Power X33 Mod HP 40/45/60 are equipped with a separate bypass input connection. Feactory setting the bypass

line is linked together with the mains input. If the separate bypass line is used the 3 links L1IN - L1BP, L1IN - L2BP and

L3IN - L3BP has to be removed abd then wired separately.

ATTENTION

The bypass line must have the same netral connection as the mains.

TRI POWER X33 MOD HP40/45/60

with single mains

Tri Power X33 Mod HP Manual | Rev 1.20 | © Alpha Technologies GmbH 2013

Tri Power X33 Mod HP

TRI POWER X33 MOD HP40/45/60

with separate bypass
