5. Installation

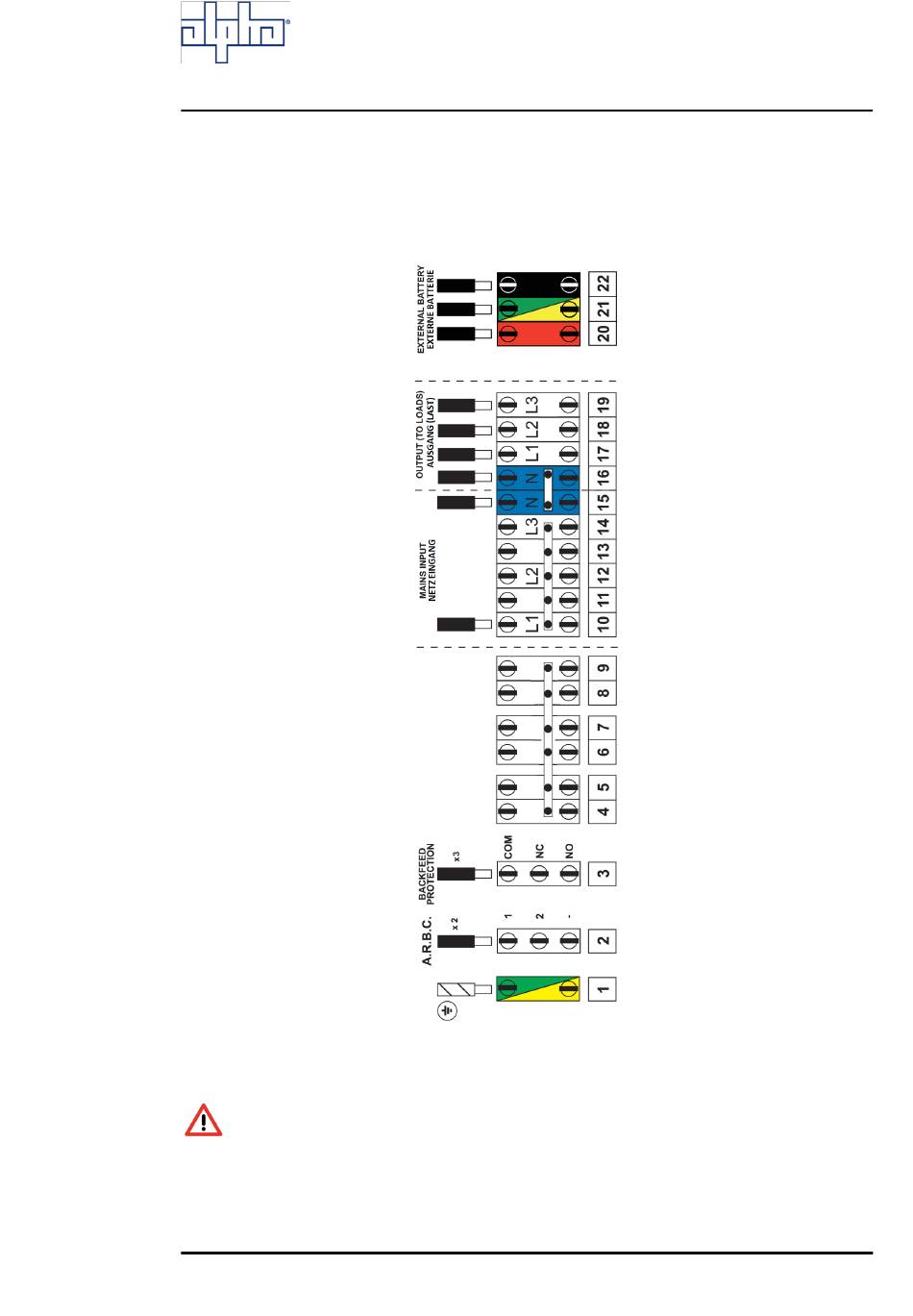

5.3.7 3 independent 1-PHASEnOutput
For this type of connection, besides the wiring shown in the following figure, the software has to be configured via the
instrument panel as illustrated in paragraph 6.4 STARTING PROCEDURE.
Tri Power X33 Mod HP Manual | Rev 1.20 | © Alpha Technologies GmbH 2013
44
ATTENTION
The input current is the summary of the 3 output phase currents driven by the Tri Power X33 Mod HP models 10,
15, and 20kVA.
TRI POWER X33 MOD HP
10/15/20
