Tri Power X33 Mod HP
Opening or removing the panels from the UPS Tri Power X33 Mod HP or Tri Power X33 Mod BATTERY risks exposure to
high and dangerous voltages! To guarantee protection of personnel during installation of the Tri Power X33 Mod HP
BATTERY make sure that the connections are done under the following conditions:
1. there must be no mains voltage
2. the loads are off and disconnected;
3. the UPS Tri Power X33 Mod HP is off with no voltage and all fuse carrier isolating switches on the UPS Tri Power X33
Mod HP and Tri Power X33 Mod HP BATTERY are open.
To ensure that the UPS Tri Power Mod has stopped completely if you want to add a Tri Power X33 Mod HP BATTERY in
an existing installation, follow the steps illustrated in the MAINTENANCE chapter.

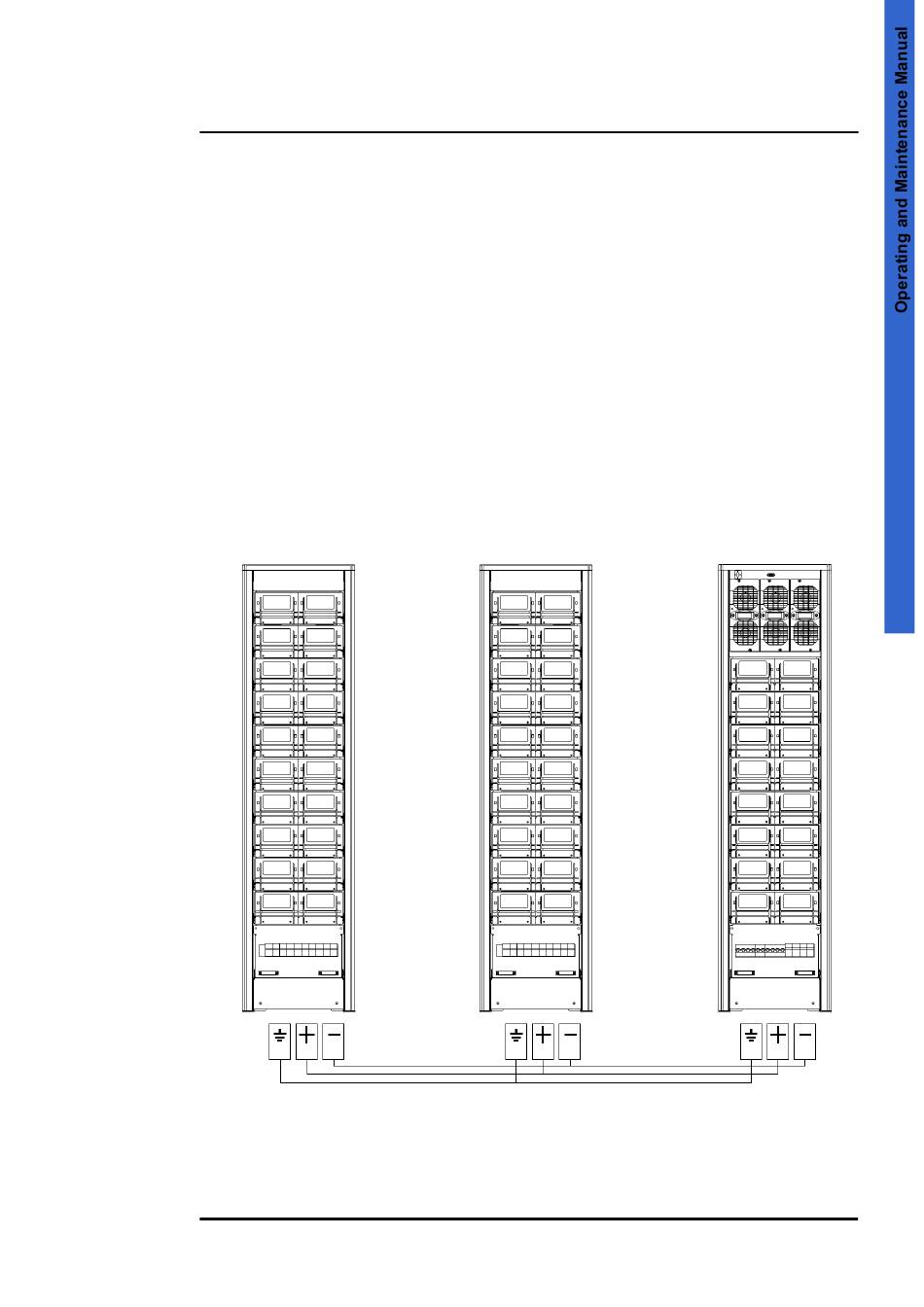

The connection of a Tri Power X33 Mod HP BATTERY to the UPS Tri Power X33 Mod HP must be done according to the
following diagram and the steps listed below:
TRI POWER X33 MOD HP TRI POWER X33 MOD HP TRI POWER X33 MOD HP
Batterieschrank Batterieschrank 10/15/20/30
1. make sure that all the battery fuse carrier isolating switches are open;
2. in each Tri Power X33 Mod HP BATTERY remove the lower front panel;
3. In each Tri Power X33 Mod HP BATTERY remove the terminal block loosening the 2 securing srews;
