7. Control panel

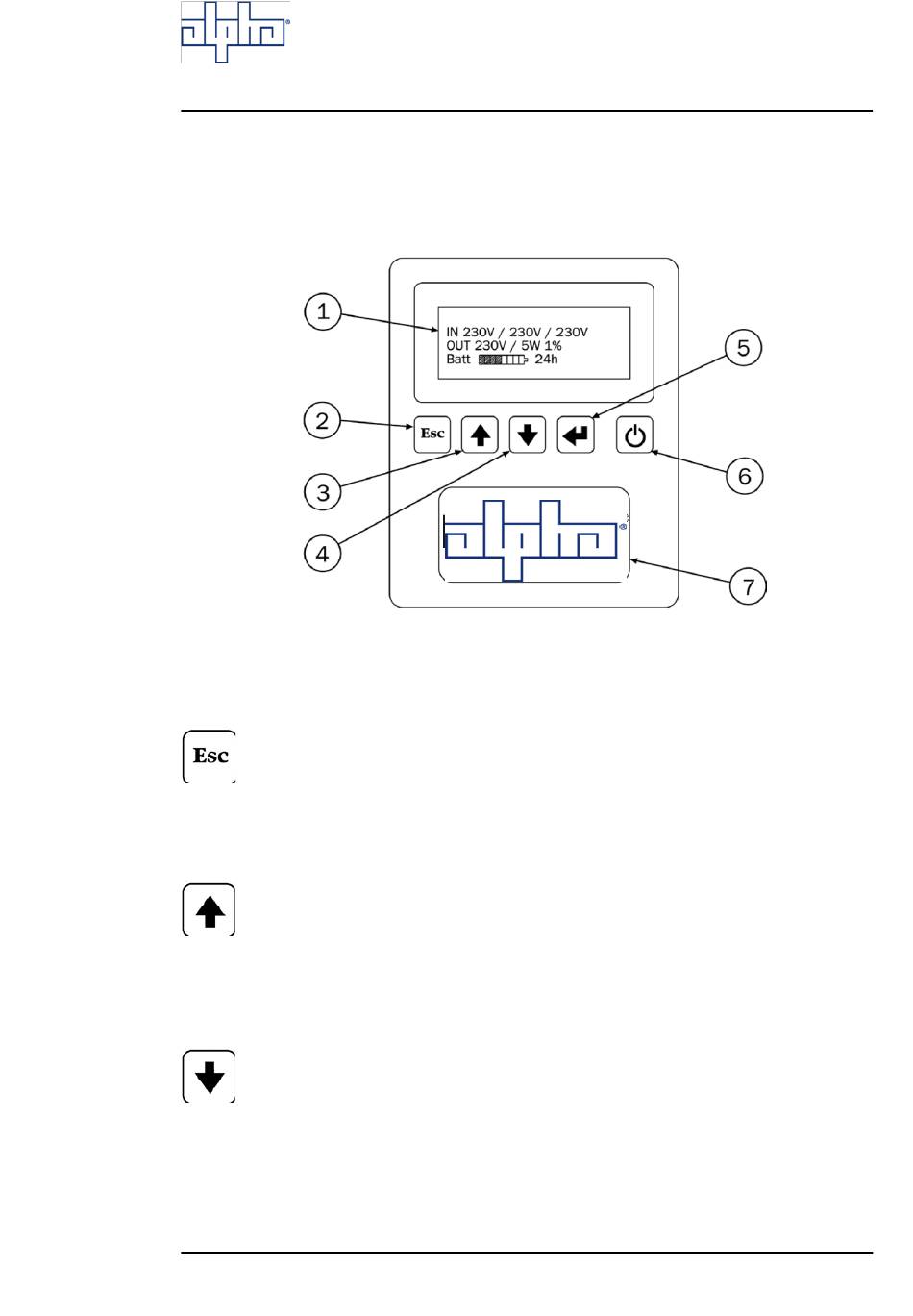

The control panel, at the front of the unit, has a 4-line, 20-character LCD display, a backlit multicolour status indicator
and a 5-key keypad.
The keys on the front panel are used to gain access to the UPS menus.
Tri Power X33 Mod HP Manual | Rev 1.20 | © Alpha Technologies GmbH 2013
50
Item
1 LCD-Displayt
2 ESCAPE
Functions:
- Exit a fubction without modifying;
- Goes from a lower to higher menue level;
- Exit the main menue and return to displaying status;
- Silencing the acoustic alarm.
3 -UP ARROW
Functions:
- Selects the previous function;
- Erhöhung des Werts innerhalb einer Funktion;
- Increase a value inside a function or toggle (ENABLE,
DISABLED;
- Scrolls the menues that contain more than 4 lines;
4 DOWN ARROW
Functions:
- Selects the next function;
- Reduces a value inside a function;
- ;Decrease a value inside a function or toggle (ENABLE,
DISABLED;
- Scrolls the menues that contain more than 4 lines.
