4.2 Control Panel

MOVE Controls - These controls allow all motor moves to be initiated.
Velocity Wheel - Used to drive the motor at a varying speed in either forward or
reverse directions for full and easy motor control - see Section 4.3.1.
Digital Display - The display shows the menu options and settings, accessed via
the menu button - see Section 4.4. When the Ident button on the associated GUI
panel is clicked, the display will flash for a short period.
MENU - used to access the settings menu - see Section 4.4.
4.2.1 Digital Display - Operating Mode
During normal operation, the top line of the digital display shows the current drive
voltage applied. The bottom line shows various icons which indicate the operating
state of the device, i.e. the hazardous voltage warning arrow, the feedback loop mode
(see Section 4.4.4.), the unlocked symbol to show the output is enabled (see Section
4.4.2.), the maximum drive voltage of the device being driven (see Section 4.4.3.), the
analog input mode (see Section 4.4.5.) and the Joystick mode (see Section 4.4.7.).
Piezo Controller
MENU

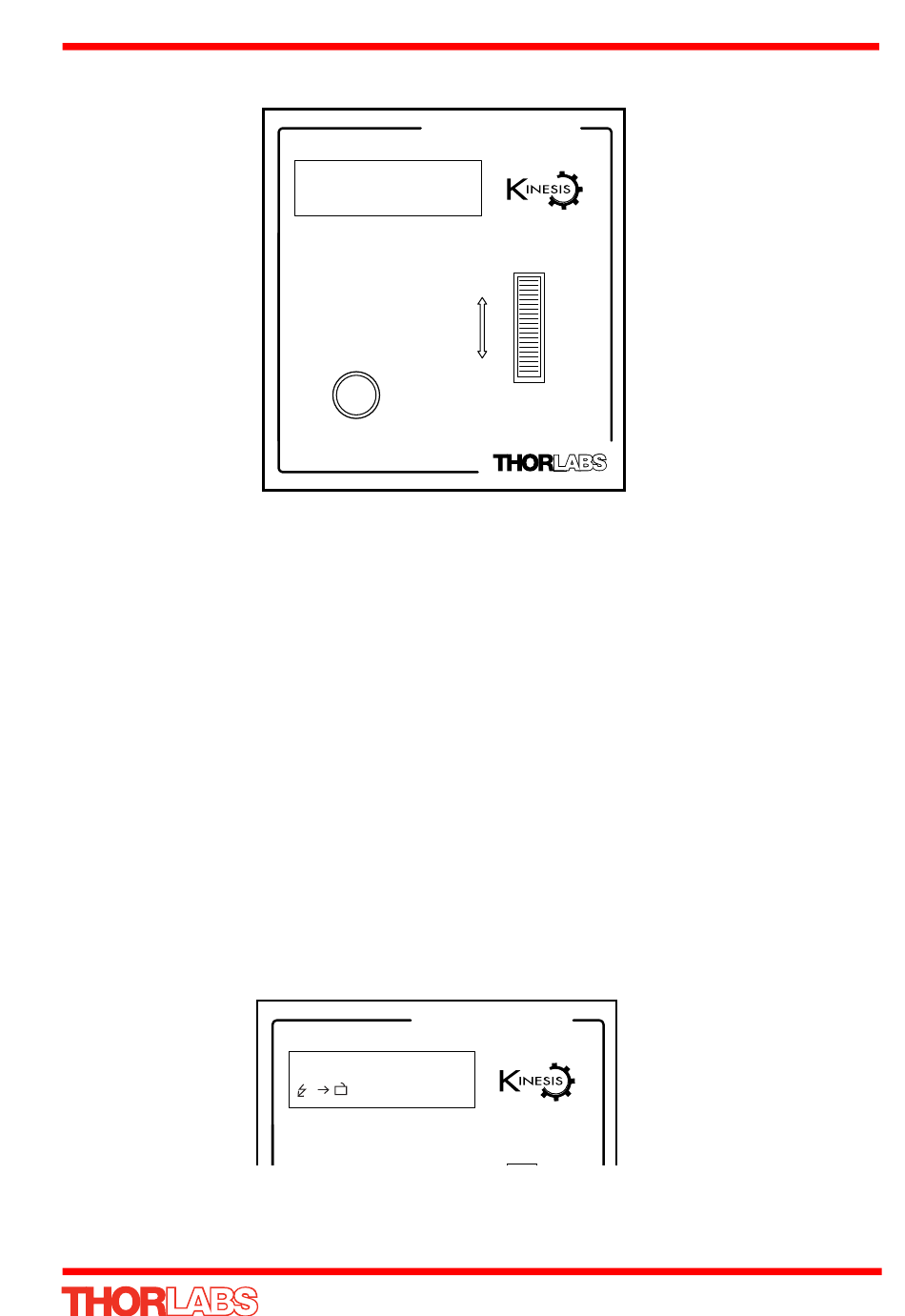

Fig. 4.1 Panel Controls and Indicators
Piezo Controller
V o l t a g e : 0 . 0 0 V
7 5 V N A
Fig. 4.2 Digital Display - Normal Operation
K-Cube Piezo Driver
17
