5.8 Load Response

The response of the KPZ101 to varying load and frequencies is shown below.

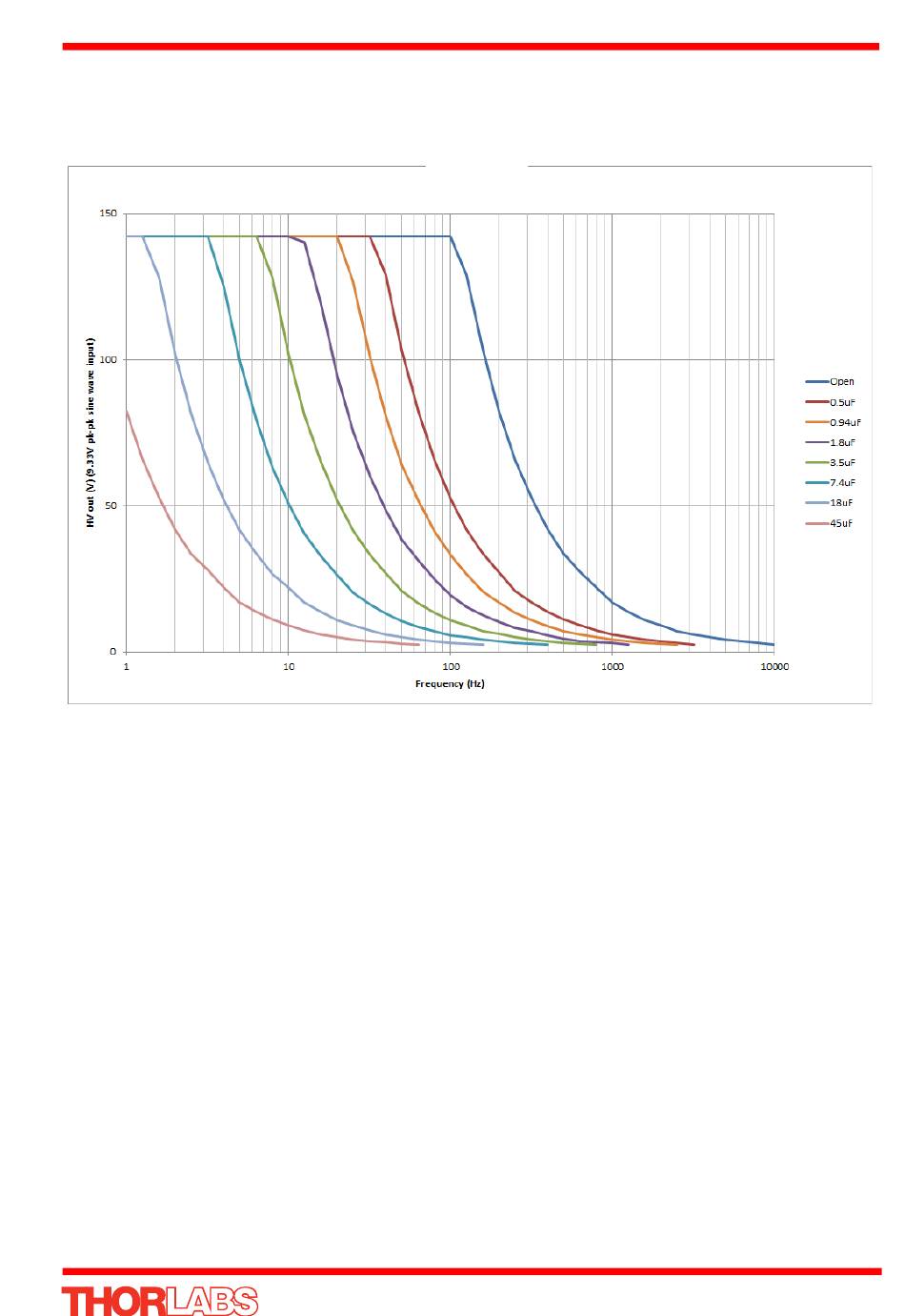

Fig. 5.15 Response of KPZ101 to Varying Loads and Frequencies

5.9 Setting Move Sequences

The Kinesis software allows move sequences to be programmed, allowing several
positions to be visited without user intervention. For more details and instructions on
setting move sequences, please see the Kinesis Helpfile.

5.10 Changing and Saving Parameter Settings

During operation, certain settings (e.g. loop mode, maximum voltage etc) can be
changed as required and saved to the device for use in the absence of a PC.
However, when the device is next connected to a PC and the Kinesis Server is run
up, these settings will be overwritten by the default settings. These values have been
chosen to provide safe performance in the majority of applications. For applications
where these settings need to be changed, a new set of Device Start Up settings', must
be created which can then be applied and/or uploaded on subsequent start up. See
the Kinesis Helpfile for more details.
