Chapter 5
10) Click the 'Settings' button on the GUI panel of the Piezo Driver to display the
Settings panel (shown below). .
11) Make the following parameter settings, as shown in Fig. 5.8
Control Tab
Loop Mode - Select Closed Loop
Maximum Voltage - Set the corresponding voltage for the piezo being
driven, 75V, 100V or 150V.
Advanced Tab
Input Source - Select Software + Wheel
Analogue Input Mode - Select External SMA Input
12) If desired, click the 'Persist Settings To Hardware' box. These settings will then be
loaded on each power up cycle
13) Click 'OK to save the settings.
14) Refer to Section 5.6.5. for instructions on setting the position sensor zero value.
42

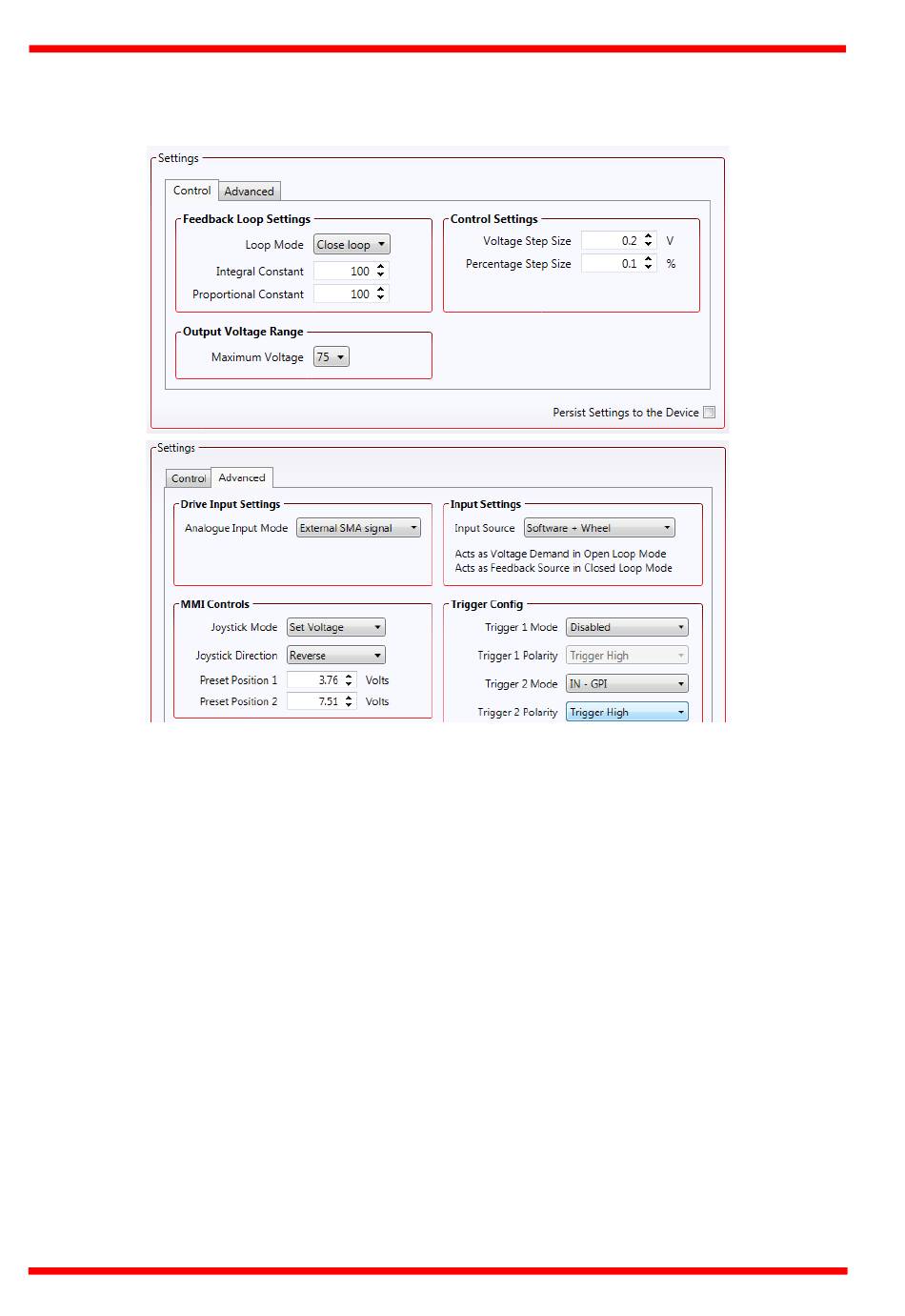

Fig. 5.13 Piezo Driver Settings
HA0365T Rev Dk Jan 2017
